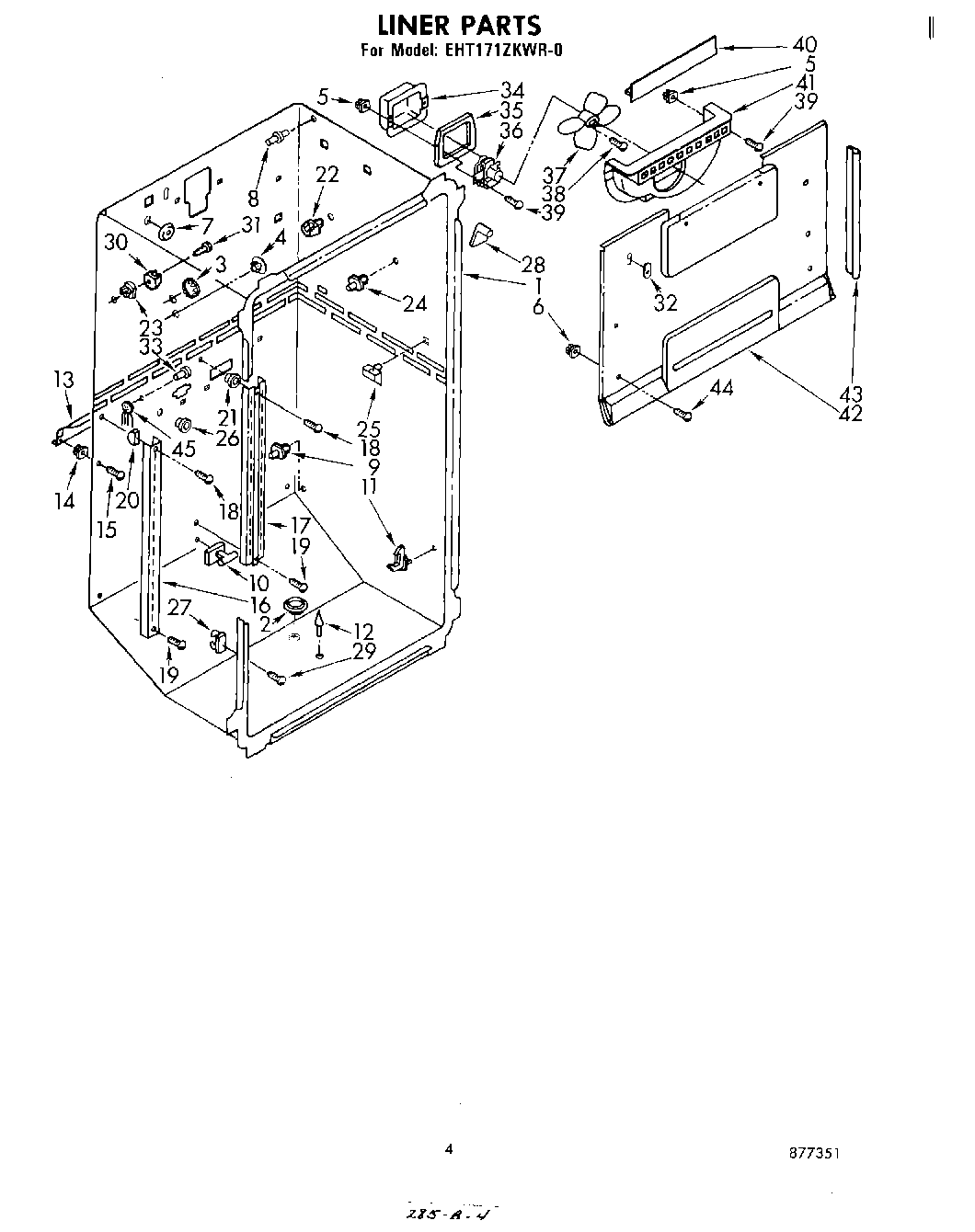

| 1 | Liner (Not A Serviceable Part) |
| 2 | Drain Cover |
| 3 | Hole, Plug |
| 4 | Hole, Plug |
| 5 | Grommet |
| 6 | Grommet |
| 7 | Grommet, Water Inlet |
| 8 | Stud |
| 9 | Shelf, Stud |
| 10 | Stud, Support Rear |
| 11 | Shelf, Stud |
| 12 | Grommet, Crisper Cover |
| 13 | Shelf, Reinforcement |
| 14 | Screw Grommet |
| 15 | WP98165 Whirlpool Screw |
| 16 | Shelf, Ladder (2) |
| 17 | Shelf, Ladder Center |
| 18 | Screw, 8 x 1-1/4 (3) |
| 19 | Screw (Repair) |
| 19 | Screw, 8-32 x 1-1/4 |
| 20 | 520965 Whirlpool Refrigerator Support |
| 21 | Screw Support, Center Ladder (2) |
| 22 | Shelf Stud Saddle (R.S.) |
| 23 | Screw Grommet |
| 24 | Stud, Shelf (2) |
| 25 | Retainer, Stud (4) |
| 26 | Grommet, Wiring |
| 27 | Spacer, Liner (8) |
| 28 | Spacer, Liner (2) |
| 29 | WP488163 Whirlpool Refrigerator Screw |
| 30 | Shelf Stud, Saddle L.S. |
| 31 | WP488729 Whirlpool Refrigerator Door Screw |
| 32 | Hole Plug, Evaporator |
| 33 | Receptacle Cap |
| 34 | Cover, Motor |
| 35 | Gasket, Motor Cover |
| 36 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 37 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 38 | WP487887 Whirlpool Refrigerator Screw |
| 39 | W11624204 Whirlpool Screw |
| 40 | Gasket, Sealing |
| 41 | Scroll, Fan |
| 42 | Cover, Evaporator |
| 43 | Gasket, Cover (2) (15-3/4``) |
| 45 | Wiring, Ice Maker |
