EHT182VKWR0 02 – DOOR

EHT182VKWR0 02 – DOOR

Written by

in

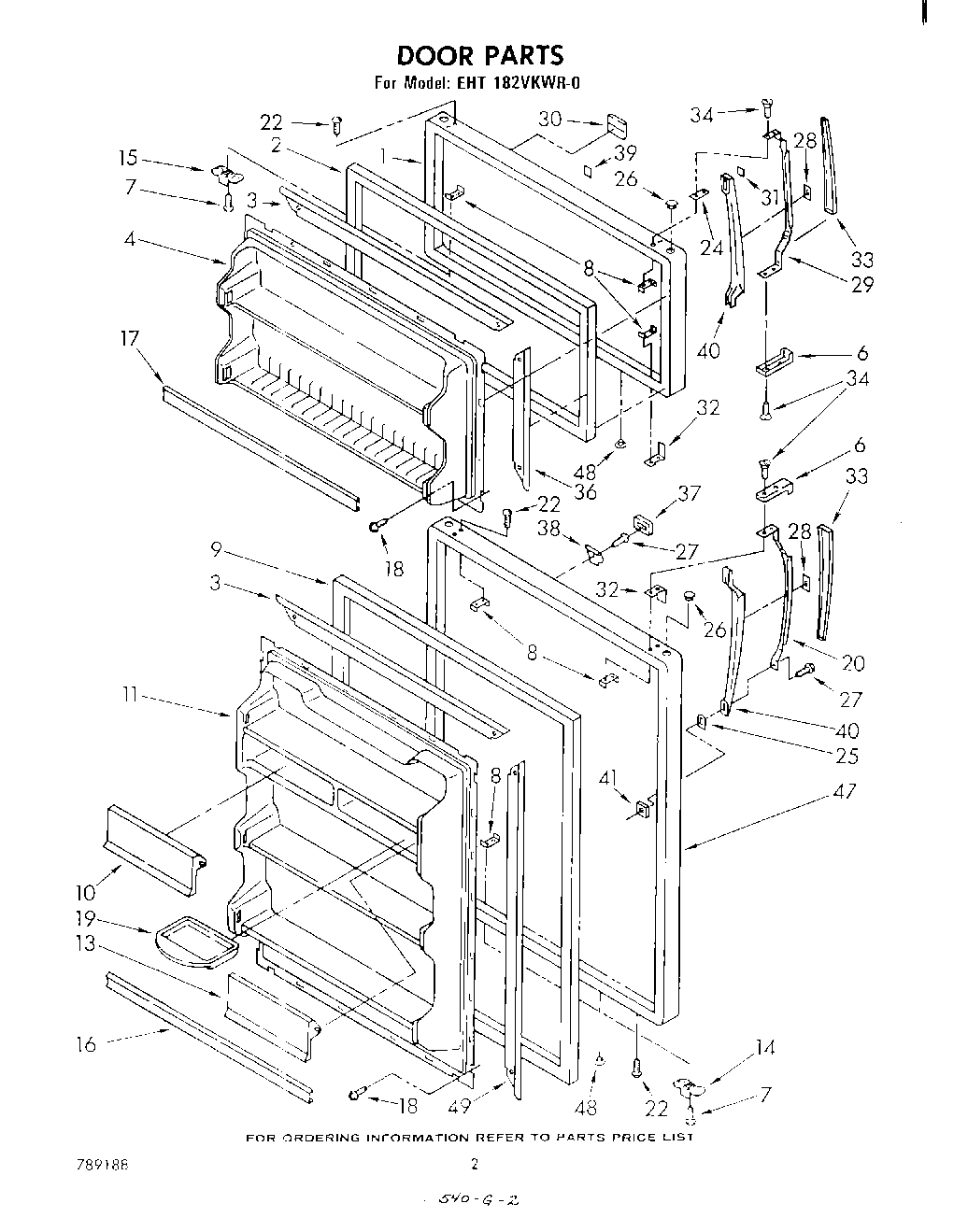

EHT182VKWR0 02 – DOOR

Products

Position	Product
1	Door, Freezer (Toast)
1	Door, Freezer (White)
1	Door, Freezer (Golden Harvest)
1	Door, Freezer (New Avocado)
1	Door, Freezer (Almond)
1	Door, Freezer (Coffee)
1	Door, Freezer (Platinum)
2	Gasket, Freezer Door
2	Gasket, Freezer Door
3	Retainer, Top & Bottom (2)
4	Panel, Inteiror (For Platinum Model Only)
4	Panel, Interior
6	End Cap
8	W10833053 Whirlpool Refrigerator Plate
9	Gasket, Refrigerator Door
9	Gasket, Refrigerator Door
10	Door, Utility
11	Panel, Interior
11	Panel, Interior
13	Door, Butter
14	Bracket, Door Stop
15	Bracket, Door Stop
16	Trim, Shelf (3)
17	Trim, Shelf (2)
18	SCREW
18	W11624204 Whirlpool Screw
20	Reinforcement, Handle
22	Screw (Repair)
22	WP488921 Whirlpool Refrigerator Screw
24	Shim, Handle
25	Shim, Handle
26	Hole Plug (New Avocado)
26	Hole Plug (Coffee)
26	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
26	Hole Plug (Almond)
26	Hole Plug (Toast)
26	Hole Plug (Platinum)
27	WP488729 Whirlpool Refrigerator Door Screw
28	WPL 488871
29	Handle Reinforcement (Freezer)
30	WPL 945121
31	Shim, Handle
32	Spacer, Handle
33	Insert, Handle (Toast)
33	Insert, Han
33	WPL 845840
33	WPL 845839
33	WPL 845838
34	Screw (Repair)
34	WP488920 Whirlpool Refrigerator Screw
36	Retainer Gasket Side
37	Medallion (Coffee)
37	Medallion (New Avocado)
37	Medallion (White)
37	Medallion (Platinum)
37	Medallion (Almond)
37	Medallion (Toast)
37	Medallion (Golden Harvest)
38	Clip, Medallion
39	Tape Strip
40	WPL 845785
41	WP939101 Whirlpool Refrigerator Plate
47	WPL 1100291
47	Door, Refrigerator (Golden Harvest)
47	Door, Refrigerator (Coffee)
47	Door, Refrigerator (White)
47	WPL 1100292
47	Door, Refrigerator (New Avocado)
47	Door, Refrigerator (Almond)
48	Hole Plug (2)
49	Retainer, Gasket Side
