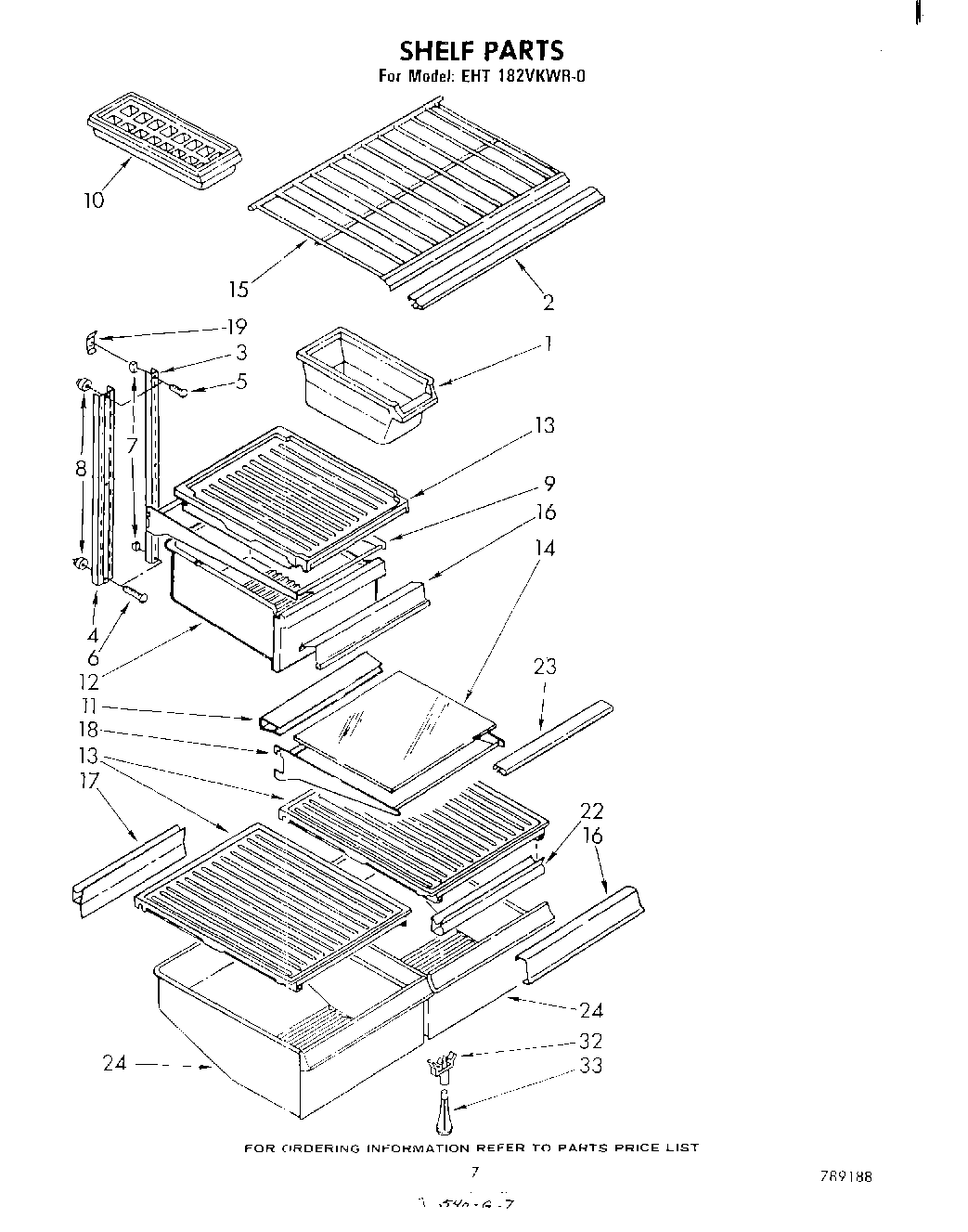

EHT182VKWR0 05 – SHELF

Products

Position	Product
1	WP982704 Whirlpool Refrigerator Container
2	Trim, Shelf
3	Shelf, Ladder (2)
4	Shelf, Ladder Center
5	Screw, 8 x 1-1/4 (3)
6	Screw, 8-32 x 1-1/4
6	Screw (Repair)
7	520965 Whirlpool Refrigerator Support
8	Screw Support, Center Ladder (2)
9	Pan Shelf, Cantilever
10	WP841180A Whirlpool Microwave Glass Turntable Tray
11	Retainer, Glass Shelf
12	Pan, Meat (For Platinum Model Only)
12	Pan, Meat
13	Cover, Pan Slide (3)
14	Glass, Shelf
15	Shelf, Wire
16	Overlay (3)
17	Gasket, Rear
18	Shelf, Cantilever (3)
19	Screw, Anchor (3)
22	Gasket, Front
23	Trim, Shelf
24	Pan, Crisper (2) (For Platinum Model Only)
24	Pan, Crisper (2)
32	Support, Cover
33	Post, Cover
