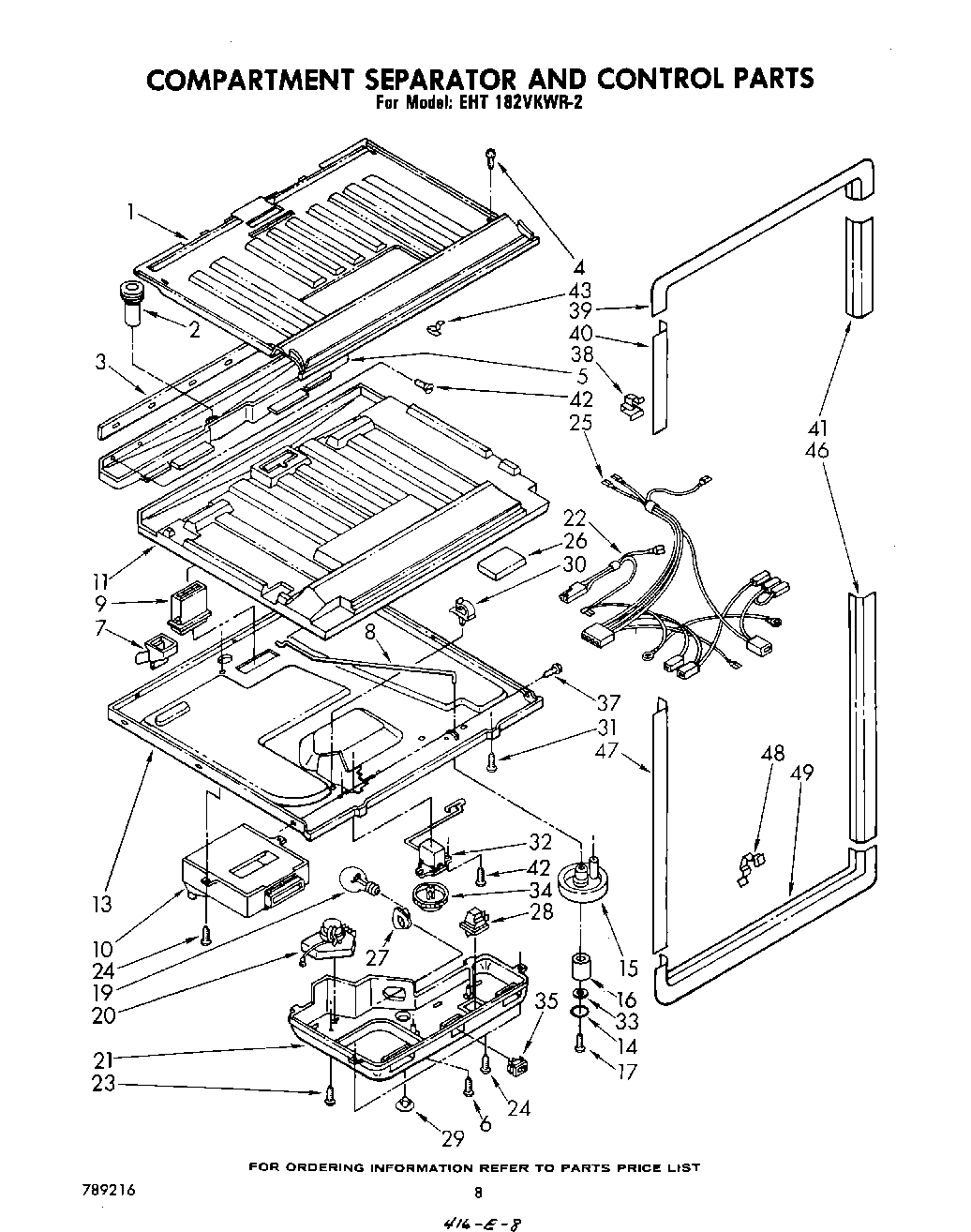

EHT182VKWR2 06 – COMPARTMENT SEPARATOR AND CONTROL

EHT182VKWR2 06 – COMPARTMENT SEPARATOR AND CONTROL

Written by

in

EHT182VKWR2 06 – COMPARTMENT SEPARATOR AND CONTROL

Products

PositionProduct
1Top, Compartment Separator
2Drain Insert
3Gasket, Drain Pan
4WP488729 Whirlpool Refrigerator Door Screw
5Drain Pan
6Screw, 8 x 3/8 (2)
7Cup, Drain
8Connecting Rod
9Air Duct Extension
10Air Diffuser
11Insulation, Compartment Separator
13Bottom, Compartment Separator
14Washer
15Knob, Air Control
16Spacer, Knob
17Screw
19W11679940 Whirlpool Refrigerator Light Bulb Assembly
20Defrost Timer (10 Hr.)
21Box, Control
22Wiring Assembly (Ground & Test)
23WP487353 Whirlpool Refrigerator Screw
24WP489069 Whirlpool Compactor Screw
25Control Box Wiring
26Insulation (2)
274387478 Whirlpool Refrigerator Light Socket
28W11384469 Whirlpool Door Switch
29940014 Whirlpool Refrigerator Primary Button Plug
30Fastener, Wire
31Screw, 8 x 1 (2)
32WP819470 Whirlpool Refrigerator Thermostat
33“O“ Ring Seal
34Knob, Thermostat
35WP938213 Whirlpool Refrigerator Power Switch
37Screw, 8 x 3/8
38Clip, Liner
39Breaker, Freezer (Top)
40Breaker, Freezer (L.S.)
41Breaker, Freezer (R.S.)
42W11624204 Whirlpool Screw
43Breaker, Trim Clip
46Breaker, Refrigerator R.S.
47Breaker, Refrigerator L.S.
48Breaker, Retainer Clip (3)
49Breaker, Refrigerator (Bottom)
