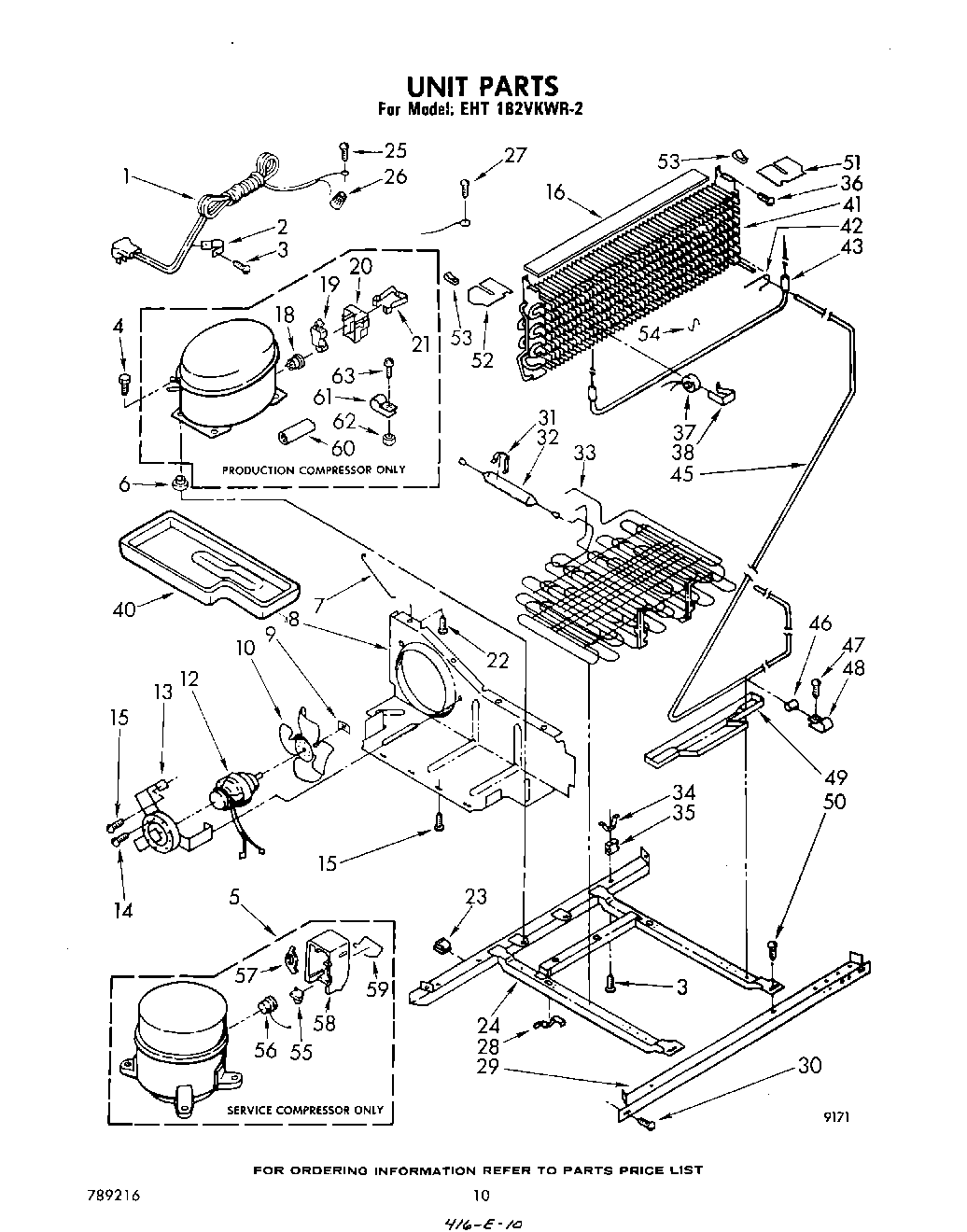

EHT182VKWR2 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

EHT182VKWR2 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Written by

in

EHT182VKWR2 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
Toast
Golden Harvest
285006 Whirlpool Spray
paint, spray 13 oz. (coffee)
Paint, Spray (13 Oz.) (Platinum)
Paint, Spray 13 Oz. (Avocado)
Leveler (Thinner)
350956 Whirlpool Spray Assembly
1Cord, Service
2549193 Whirlpool Refrigerator Power Clamp
3W11624204 Whirlpool Screw
5W10439652 Whirlpool Refrigerator Compressor
6876811 Whirlpool Grommet
7Guard, Fan
8Baffle
9WP486692 Whirlpool Refrigerator Nut
10Fan, Blade
12833697 Whirlpool Condenser Fan Motor
13Bracket, Motor
14Screw, 8-36 x 3/8 (3)
15Screw, 8 x 3/8
16Baffle, Evaporator
18Overload (Used W/Original Compressor)
19Relay
20Terminal Cover
21Strap
22Screw, 8-32 x 1/2
23Clip, Wire (2)
24Frame
25Screw, 8-32 x 3/8
26Wire Connector
27303776 Whirlpool Dishwasher Screw
28Clip (2)
29Rail, Front
30489340 Whirlpool Refrigerator Screw
31Clamp
32W10843121 Whirlpool Refrigerator Tube
33Condenser & Precooler
34Clamp (4)
35Grommet (4)
37WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38Clamp
40WPL 842041
41Evaporator
42Clip, Heater (2)
43Heater, Defrost
45Exchanger, Heat
46Dampener (2)
47WPW10141625 Whirlpool Refrigerator Screw Assembly
48Clamp Tube
49Pan, Drip
50Screw, 1/4-28 x 1/2 (2)
51Baffle, R.S.
52Baffle, L.S.
53Retainer, Baffle (2)
54Support, Heater
55Relay
56Overload
57Spring, Overload
58Cover, Terminal
59Cover, Spring
60Capacitor, Start
61Clamp
62Screw Grommet
63Transformer (115-230 Volt)
63WPL 799351
6372113 Whirlpool Touch-Up Paint
63W11693756 Whirlpool Screw Assembly
63Golden Harvest (Uncut)
63Enamal, Toast (1 Qt. Uncut)
63Platinum (Uncut)
63WPL 72112
63212643 Whirlpool Refrigerator Permagum Sealer
6372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
63VALVE, ACCESS (5/8“)
6372017 Whirlpool Appliance Touch-Up Paint White
63WPL 789216
63799344 Whirlpool Refrigerator Paint
63WP72107 Whirlpool Touchup
63Tech Sheet
63Almond (Uncut)
63WPL 946937
63WPL 942950
63Energy Guide
63511873 Whirlpool Refrigerator Paint
63606755 Whirlpool Refrigerator Bag
63833938 Whirlpool Refrigerator Terminal
63CEMENT, ALUMILASTIC (1 1/4 OZ.)
63Enamel, Black (1 Qt. Uncut)
63WPL 799833
63WPL 876029
6372032 Whirlpool Touch Up Paint Black
6372109 Whirlpool Dacor Avocado Touch-Up Paint
63WPL 799832
63Paint, Touch-Up 1/2 Oz. (Coffee)
63Enamel, Coffee (1 Qt. Uncut)
63TAPE, VINYL (3/4 X 108“)
63VALVE, ACCESS (1/2“)
63876370 Whirlpool Refrigerator Insulation
63WP503695 Whirlpool Refrigerator Sealer
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63WP505587 Whirlpool Refrigerator Sealer
63978027 Whirlpool Refrigerator Primary Valve
63WP542638 Whirlpool Refrigerator Grease
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63Enamel, New Avocado (1 Qt. Uncut)
