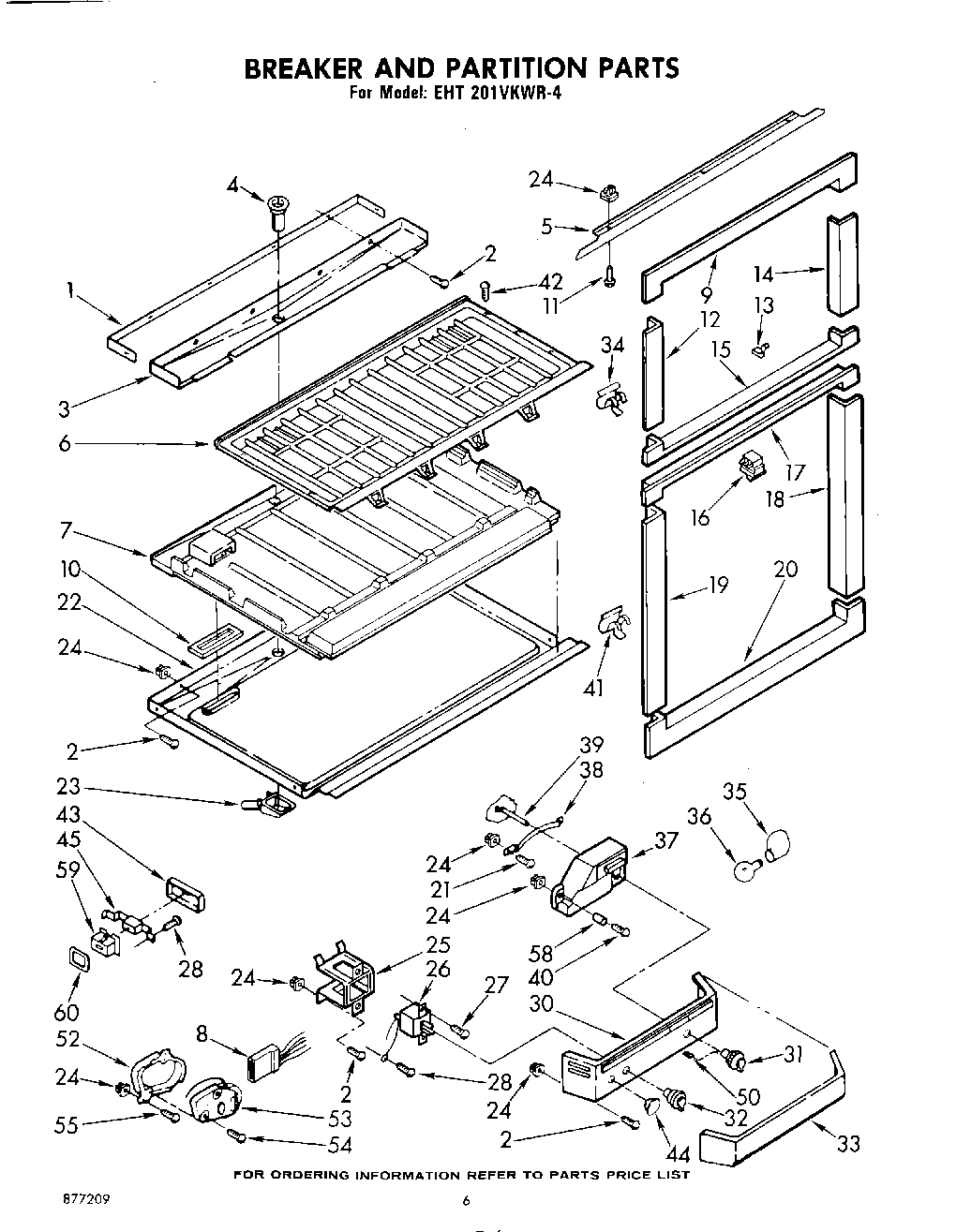

EHT201VKWR4 06 – BREAKER AND PARTITION PARTS

Products

Position	Product
1	Gasket, Drain Pan
2	W11624204 Whirlpool Screw
3	Pan, Evaporator Drain
4	Fitting, Drain Pan
5	Baffle, Liner Top
6	Separator (Top)
7	Insulation, Separator
8	Liner Wiring (Defrost Timer)
9	Breaker, Top
10	Gasket, Air Return
11	Screw, 8-15 x 1/2 (4)
12	Breaker L.S.
13	Breaker, Trim Clip
14	Breaker R.S.
15	Breaker, Mullion (Top)
16	W11384469 Whirlpool Door Switch
17	Breaker, Mullion Bottom
18	Breaker, R.S.
19	Breaker, L.S.
20	Breaker, Bottom
21	Screw, 8 x 3/8
22	Separator (Bottom)
23	Cup, Drain
24	Grommet
25	Bracket, Thermostat
26	WP819470 Whirlpool Refrigerator Thermostat
27	WP965173 Whirlpool Dishwasher Screw
28	WP489128 Whirlpool Refrigerator Screw
30	Panel, Control
31	Control Knob
32	Knob, Temperature Control
33	Light Lens
34	Breaker, Clip
35	4387478 Whirlpool Refrigerator Light Socket
36	RANGE ONLY 40W 120V APPL BULB
37	Air Diffuser
38	Retainer
39	Damper, Air
40	Screw, 8 x 1-1/4 (3)
41	Clip, Breaker Retainer (2)
42	WP488729 Whirlpool Refrigerator Door Screw
43	Escutcheon, Power Saver
44	Hole Plug (2)
45	Bracket & Switch Assembly
50	Knob, Retainer
52	Timer, Container
53	Timer, Defrost (8 Hr.) (Alternate)
53	Defrost, Timer
54	Screw, 8 x 3/8 (2)
55	WP489069 Whirlpool Compactor Screw
58	836667 Whirlpool Refrigerator Spacer
59	Container, Switch
60	Gasket, Container
