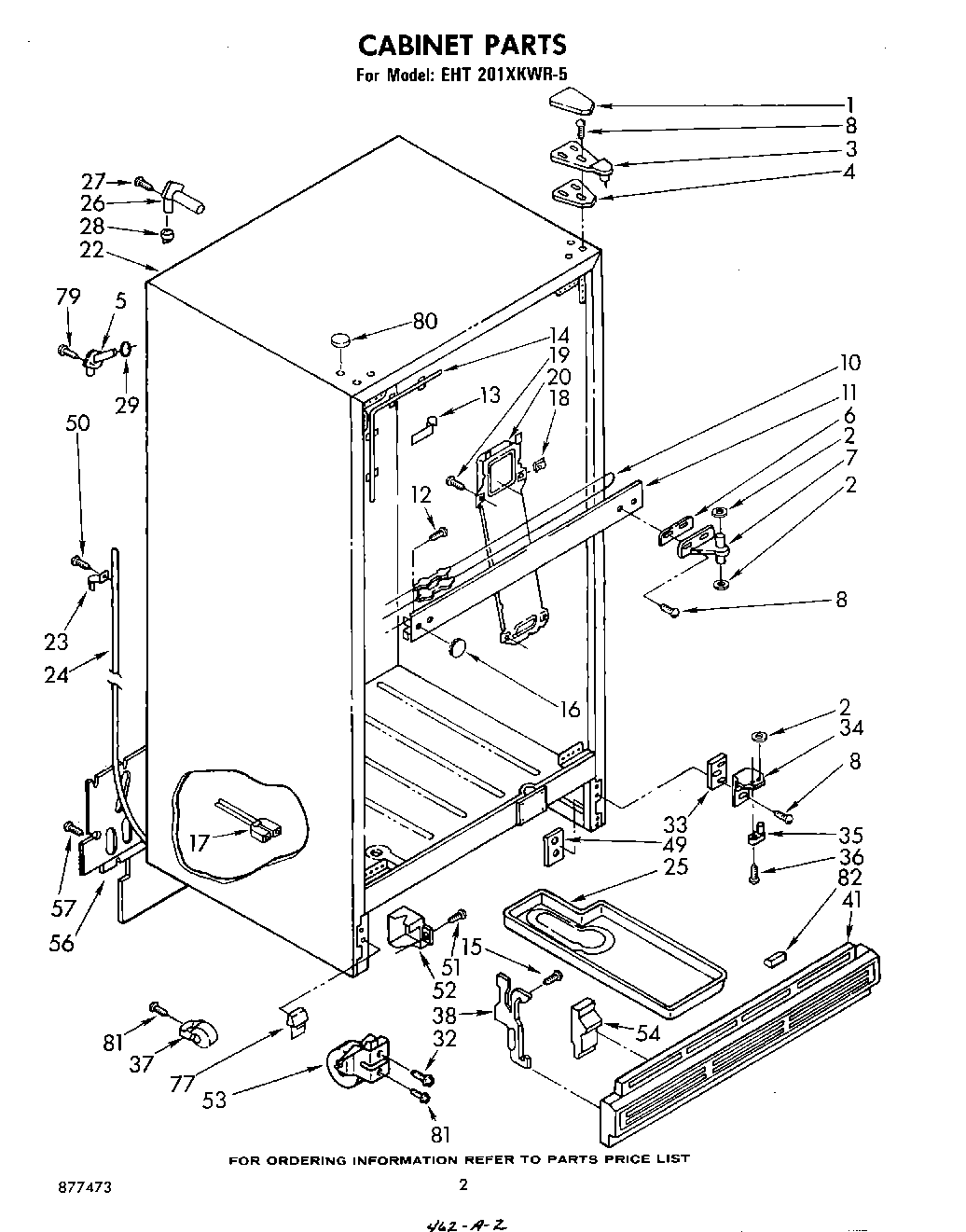

EHT201XKWR5 02 – CABINET

Products

Position	Product
1	Hinge Cover (New Avocado)
1	Hinge, Cover (Coffee)
1	Hinge Cover (Golden Harvest)
1	1119787 Whirlpool Refrigerator Hinge Cover
2	WP487802 Whirlpool Refrigerator Washer
3	Hinge, Top
4	Shim, Hinge
5	Drain Fitting
6	Shim, Hinge Center
7	Hinge, Center
8	Screw (Repair)
8	WP999367 Whirlpool Refrigerator Screw
10	Heater, Mullion
11	Center Rail (White)
11	Center Rail (Almond)
11	Center Rail (Coffee)
11	Center Rail (New Avocado)
11	Center Rail (Golden Harvest)
12	Screw, 8 x 3/8
12	Screw (Repair)
13	WPL 935663
14	WPL 936075
15	W11624204 Whirlpool Screw
16	Hole Plug (Coffee)
16	Hole, Plug (Almond)
16	Hole Plug (New Avocado)
16	Hole Plug (Golden Harvest)
16	Hole, Plug (White)
17	WPL 548734
18	Nut, Speed (4)
19	WP488488 Whirlpool Refrigerator Screw
20	Duct, Air
22	Cabinet (Not A Serviceable Part)
23	WPL 836077
24	8316810 Whirlpool Refrigerator Drain Tube
25	WPL 842041
26	WP2196157 Whirlpool Fill Tube
28	WP487996 Whirlpool Refrigerator Cap Tube
29	Gasket, Seal
32	Screw, 5/16-24 x 1
33	Shim, Bottom Hinge
34	Hinge, Bottom
35	Hinge Pin, Bottom
36	Screw 10-32 x 5/16
37	WPW10250570 Whirlpool Refrigerator Cabinet Roller
38	WPL 844614
41	Exterior Grille (Coffee)
41	Exterior Grille (New Avocado)
41	Exterior Grille (Almond)
41	Exterior Grille (White)
41	Exterior Grille (Golden Harvest)
49	Tap Plate
50	WP489069 Whirlpool Compactor Screw
51	WP488729 Whirlpool Refrigerator Door Screw
52	WPL 549947
53	Roller, Front
54	WPL 836372
56	WPL 850459
77	WPL 989931
77	Corner, Filler (
77	WPL 989928
77	WPL 989929
77	WPL 989930
79	WP98165 Whirlpool Screw
80	Hole Plug (2) (Golden Harvest)
80	Hole Plug (2) (White)
80	Hole Plug (New Avocado)
80	Hole Plug (Coffee)
80	Hole Plug (2) (Almond)
81	Screw, 1/4-28 x 1/2 (2)
82	Bumper, Grille
