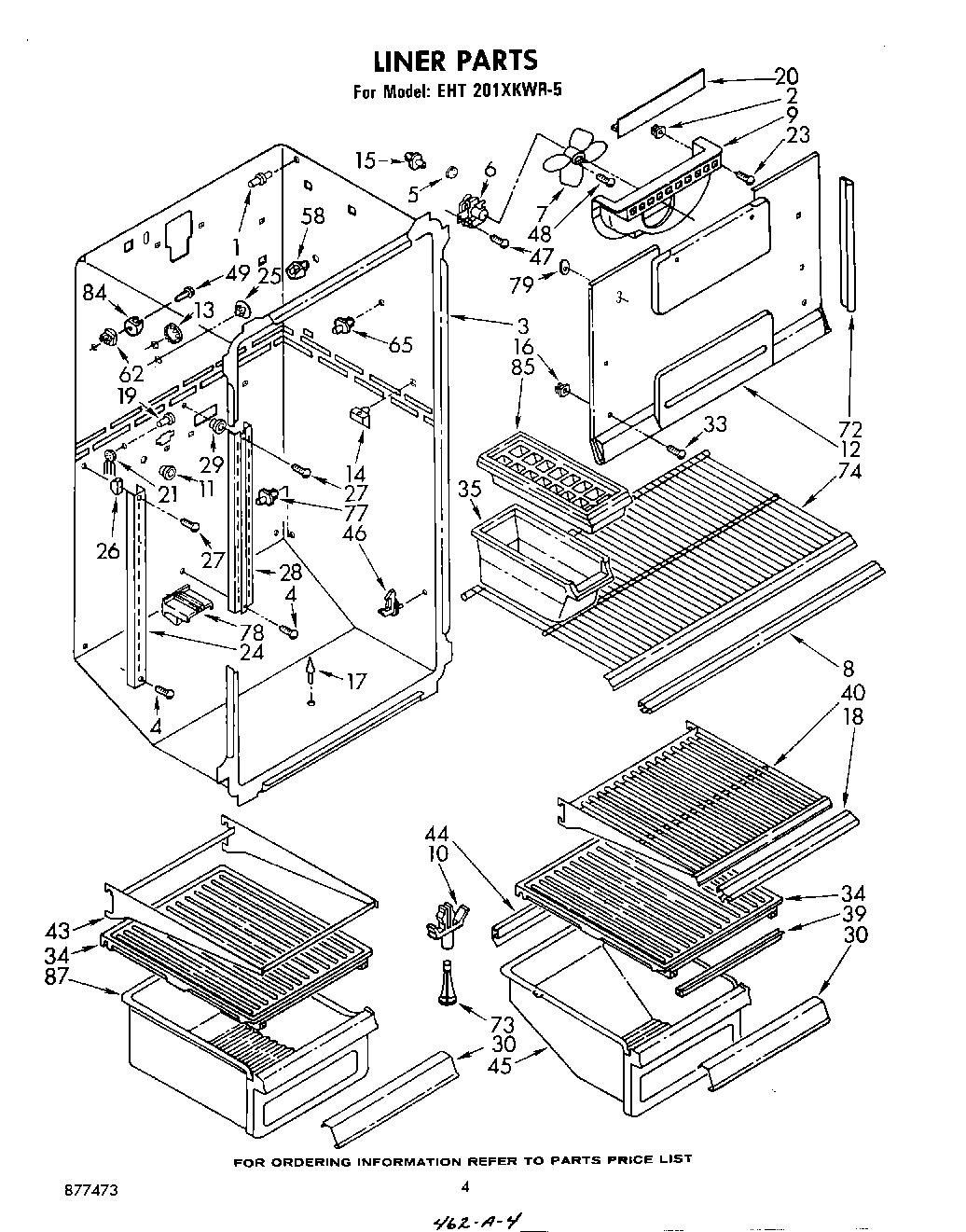

| 1 | Stud |
| 2 | Grommet |
| 3 | Liner (Not A Serviceable Part) |
| 4 | Screw (Repair) |
| 4 | Screw, 8-32 x 1-1/4 |
| 5 | Grommet |
| 6 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 7 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 8 | Trim, Shelf |
| 9 | Scroll, Fan |
| 10 | Support, Cover |
| 11 | Grommet Drain Fitting |
| 12 | Cover, Evaporator |
| 13 | Hole, Plug |
| 14 | Retainer, Stud (4) |
| 15 | Screw, Grommet |
| 16 | Grommet |
| 17 | Grommet, Crisper Cover |
| 18 | Trim, Shelf |
| 19 | Receptacle Cap |
| 20 | Gasket, Sealing |
| 21 | Wiring, Ice Maker |
| 23 | W11624204 Whirlpool Screw |
| 24 | Shelf, Ladder (2) |
| 25 | Hole, Plug |
| 26 | 520965 Whirlpool Refrigerator Support |
| 27 | Screw, 8 x 1-1/4 (3) |
| 28 | Shelf, Ladder Center |
| 29 | Screw Support, Center Ladder (2) |
| 30 | Overlay, Pan |
| 34 | Slide & Cover Pan (3) |
| 35 | WP982704 Whirlpool Refrigerator Container |
| 39 | Crisper Gasket, Front |
| 40 | Shelf, Cantilever (3) |
| 43 | Pan Shelf, Cantilever |
| 44 | Crisper Gasket, Rear |
| 45 | Pan, Crisper (2) |
| 46 | Shelf, Stud |
| 47 | WP488488 Whirlpool Refrigerator Screw |
| 48 | WP487887 Whirlpool Refrigerator Screw |
| 49 | WP488729 Whirlpool Refrigerator Door Screw |
| 58 | Shelf Stud Saddle (R.S.) |
| 62 | Screw Grommet |
| 65 | Shelf, Stud (2) |
| 72 | Gasket, Evaporator |
| 73 | Post, Cover |
| 74 | Shelf, F.C. |
| 77 | Shelf, Stud |
| 78 | Stud, Support Rear |
| 79 | Hole Plug, Evaporator |
| 84 | Shelf Stud, Saddle L.S. |
| 85 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 87 | Pan, Meat |
