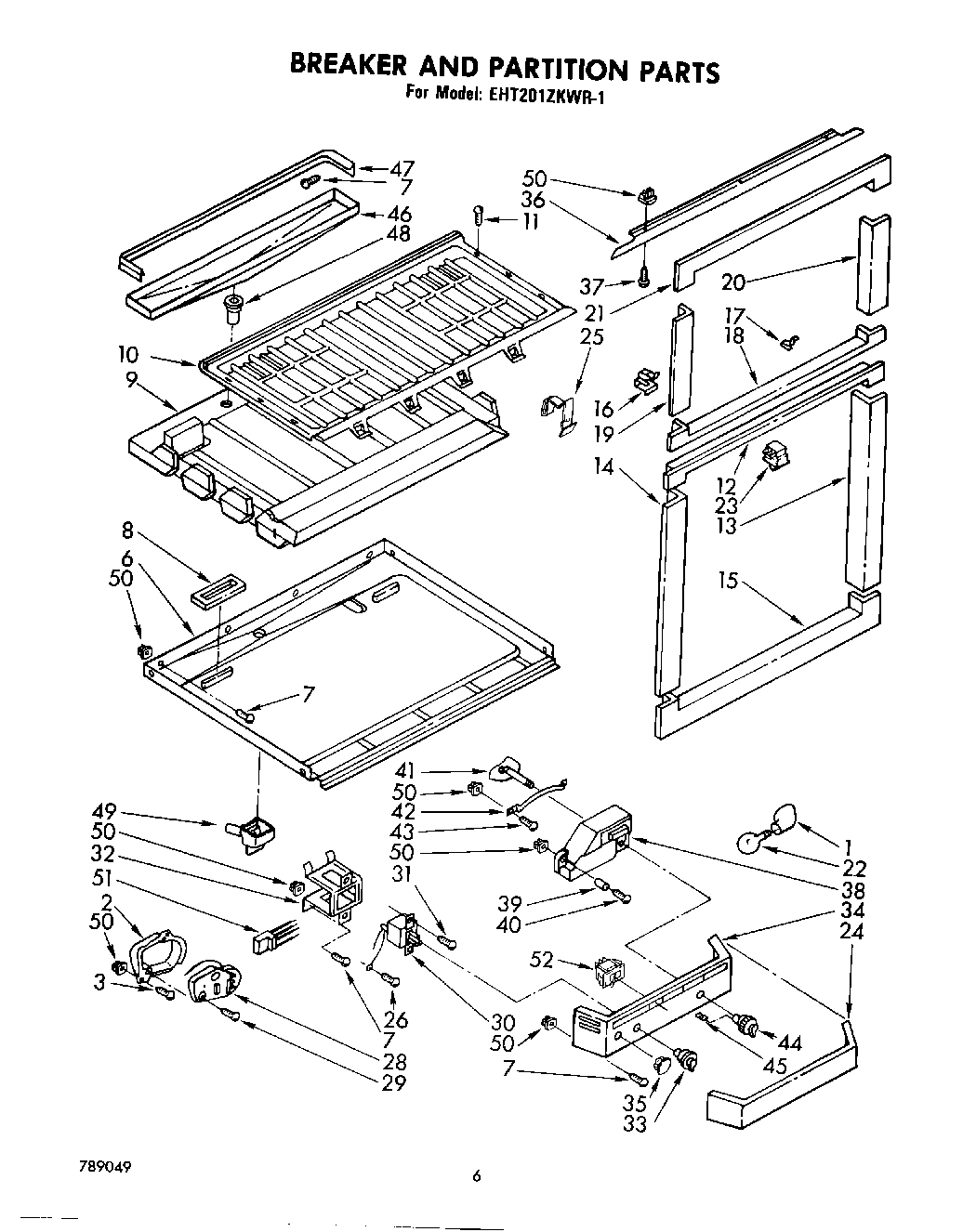

EHT201ZKWR1 04 – BREAKER AND PARTITION , LIT/OPTIONAL

EHT201ZKWR1 04 – BREAKER AND PARTITION , LIT/OPTIONAL

Written by

in

EHT201ZKWR1 04 – BREAKER AND PARTITION , LIT/OPTIONAL

Products

Position	Product
	WPL LIT942935
	WPL LIT946866
	WPL LIT789049
	WPL LIT942166
	WPL LIT946654
1	4387478 Whirlpool Refrigerator Light Socket
2	Timer, Container
6	Separator (Bottom)
7	W11624204 Whirlpool Screw
8	Gasket, Air Return
9	Insulation, Separator
10	Separator (Top)
11	WP488729 Whirlpool Refrigerator Door Screw
12	Breaker, Mullion Bottom
13	Breaker, R.S.
14	Breaker, L.S.
15	Breaker, Bottom
16	Breaker, Clip
17	Breaker, Trim Clip
18	Breaker, Mullion (Top)
19	Breaker L.S.
20	Breaker R.S.
21	Breaker, Top
22	RANGE ONLY 40W 120V APPL BULB
23	W11384469 Whirlpool Door Switch
24	Light Lens
25	Breaker, Retainer Clip (3)
26	WP489128 Whirlpool Refrigerator Screw
28	Timer, Defrost
29	Screw, 8 x 3/8 (2)
30	WP819470 Whirlpool Refrigerator Thermostat
31	WP965173 Whirlpool Dishwasher Screw
32	Bracket, Thermostat
33	Knob, Temperature Control
34	Panel, Control
35	Hole Plug (2)
36	Baffle, Liner Top
37	WP489069 Whirlpool Compactor Screw
38	Air Diffuser
39	836667 Whirlpool Refrigerator Spacer
40	Screw, 8 x 1-1/4 (3)
41	Damper, Air
42	Retrainer, Air Dampener
43	Screw, 8 x 3/8
44	Control Knob
45	Knob, Retainer
46	Pan, Evaporator Drain
47	Gasket, Drain Pan
48	Fitting, Drain Pan
49	Cup, Drain
50	Grommet
51	Liner Wiring (Defrost Timer)
52	Golden Harvest (Uncut)
52	Almond (Uncut)
52	350930 Whirlpool White Spray Paint
52	350956 Whirlpool Spray Assembly
52	72017 Whirlpool Appliance Touch-Up Paint White
52	799344 Whirlpool Refrigerator Paint
52	WPL 799351
52	WP72107 Whirlpool Touchup
52	WP938213 Whirlpool Refrigerator Power Switch
52	Leveler (Thinner)
52	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
52	Enamel, Coffee (1 Qt. Uncut)
52	Enamel, New Avocado (1 Qt. Uncut)
52	Golden Harvest
52	TAPE, VINYL (3/4 X 108“)
52	CEMENT, ALUMILASTIC (1 1/4 OZ.)
52	Enamel, Black (1 Qt. Uncut)
52	WPL 876029
52	285006 Whirlpool Spray
52	72032 Whirlpool Touch Up Paint Black
52	Paint, Touch-Up 1/2 Oz. (Coffee)
52	paint, spray 13 oz. (coffee)
52	WP542638 Whirlpool Refrigerator Grease
52	WP505587 Whirlpool Refrigerator Sealer
52	WPL 799833
52	212643 Whirlpool Refrigerator Permagum Sealer
52	350942 Whirlpool Spray Paint
52	511873 Whirlpool Refrigerator Paint
52	72109 Whirlpool Dacor Avocado Touch-Up Paint
52	606755 Whirlpool Refrigerator Bag
52	876370 Whirlpool Refrigerator Insulation
52	WP503695 Whirlpool Refrigerator Sealer
52	Paint, Spray 13 Oz. (Avocado)
