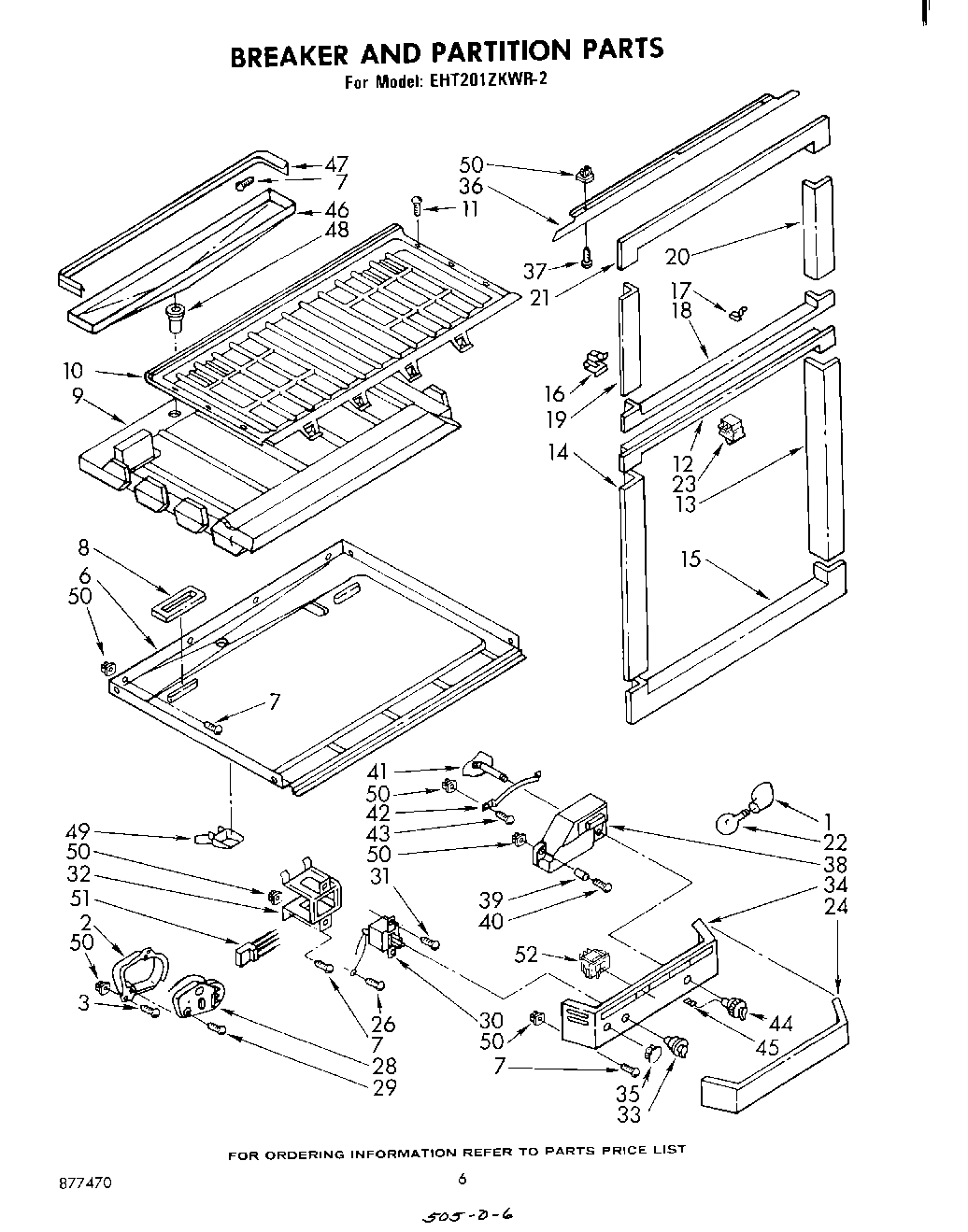

EHT201ZKWR2 04 – BREAKER AND PARTITION , LITERATURE

EHT201ZKWR2 04 – BREAKER AND PARTITION , LITERATURE

Written by

in

EHT201ZKWR2 04 – BREAKER AND PARTITION , LITERATURE

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	285006 Whirlpool Spray
	paint, spray 13 oz. (coffee)
	Golden Harvest
	Leveler (Thinner)
	Paint, Spray 13 Oz. (Avocado)
	350942 Whirlpool Spray Paint
1	4387478 Whirlpool Refrigerator Light Socket
2	Timer, Container
3	WP489069 Whirlpool Compactor Screw
6	Separator (Bottom)
7	W11624204 Whirlpool Screw
8	Gasket, Air Return
9	Insulation, Separator
10	Separator (Top)
11	WP488729 Whirlpool Refrigerator Door Screw
12	Breaker, Mullion Bottom
13	Breaker, R.S.
14	Breaker, L.S.
15	Breaker, Bottom
16	Breaker, Clip
17	Breaker, Trim Clip
18	Breaker, Mullion (Top)
19	Breaker L.S.
20	Breaker R.S.
21	Breaker, Top
22	RANGE ONLY 40W 120V APPL BULB
23	W11384469 Whirlpool Door Switch
24	Light Lens
26	WP489128 Whirlpool Refrigerator Screw
28	Defrost, Timer
29	Screw, 8 x 3/8 (2)
30	WP819470 Whirlpool Refrigerator Thermostat
31	WP965173 Whirlpool Dishwasher Screw
32	Bracket, Thermostat
33	Knob, Temperature Control
34	Panel, Control
35	Hole Plug (2)
36	Baffle, Liner Top
37	Screw, 8-15 x 1/2 (4)
38	Air Diffuser
39	836667 Whirlpool Refrigerator Spacer
40	Screw, 8 x 1-1/4 (3)
41	Damper, Air
42	Retrainer, Air Dampener
43	Screw, 8 x 3/8
44	Control Knob
45	Knob, Retainer
46	Pan, Evaporator Drain
47	Gasket, Drain Pan
48	Fitting, Drain Pan
49	Cup, Drain
50	Grommet
51	Liner Wiring (Defrost Timer)
52	WPL 934347
52	WPL 942166
52	WPL 942935
52	Enamel, New Avocado (1 Qt. Uncut)
52	Enamel, Coffee (1 Qt. Uncut)
52	WPL 942167
52	WPL 799351
52	WP938213 Whirlpool Refrigerator Power Switch
52	WPL 877470
52	72109 Whirlpool Dacor Avocado Touch-Up Paint
52	876370 Whirlpool Refrigerator Insulation
52	606755 Whirlpool Refrigerator Bag
52	511873 Whirlpool Refrigerator Paint
52	212643 Whirlpool Refrigerator Permagum Sealer
52	Golden Harvest (Uncut)
52	Almond (Uncut)
52	WP72107 Whirlpool Touchup
52	799344 Whirlpool Refrigerator Paint
52	WP503695 Whirlpool Refrigerator Sealer
52	WP505587 Whirlpool Refrigerator Sealer
52	WP542638 Whirlpool Refrigerator Grease
52	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
52	Paint, Touch-Up 1/2 Oz. (Coffee)
52	72032 Whirlpool Touch Up Paint Black
52	WPL 876029
52	WPL 799833
52	Enamel, Black (1 Qt. Uncut)
52	CEMENT, ALUMILASTIC (1 1/4 OZ.)
52	TAPE, VINYL (3/4 X 108“)
52	72017 Whirlpool Appliance Touch-Up Paint White
