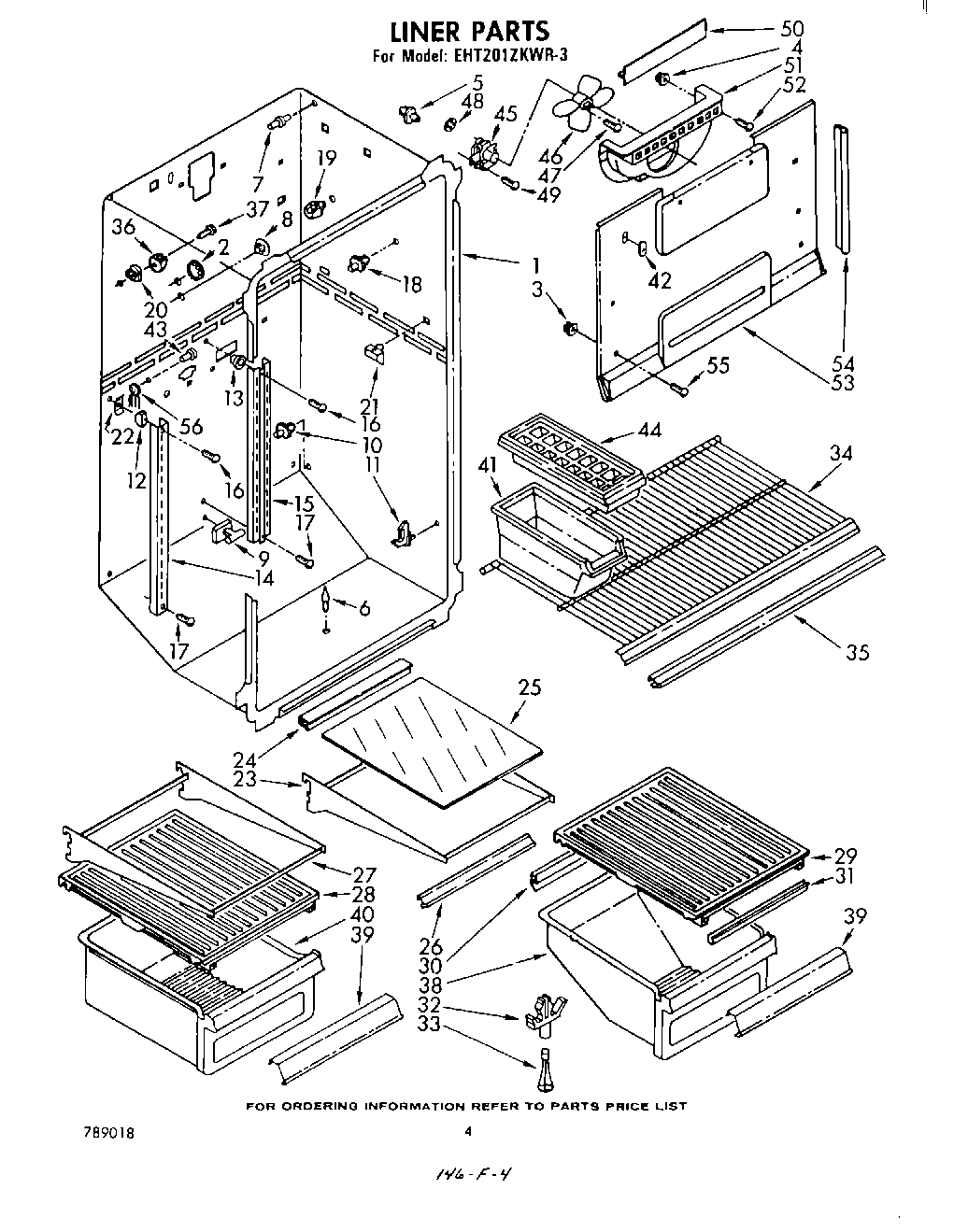

EHT201ZKWR3 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Hole, Plug
3	Grommet
4	Grommet
5	Screw, Grommet
6	Grommet, Crisper Cover
7	Stud
8	Hole, Plug
9	Stud, Support Rear
10	Shelf, Stud
11	Shelf, Stud
12	520965 Whirlpool Refrigerator Support
13	Screw Support, Center Ladder (2)
14	Shelf, Ladder (2)
15	Shelf, Ladder Center
16	Screw, 8 x 1-1/4 (3)
17	Screw, 8-32 x 1-1/4
17	Screw (Repair)
18	Shelf, Stud (2)
19	Shelf Stud Saddle (R.S.)
20	Screw Grommet
21	Retainer, Stud (4)
22	Screw, Anchor (3)
23	Shelf, Cantilever
24	Retainer, Glass Shelf
25	Glass, Shelf
26	Trim, Shelf
27	Pan Shelf, Cantilever
28	Pan, Cover
29	Pan, Cover
30	Crisper Gasket, Rear
31	Crisper Gasket, Front
32	Support, Cover
33	Post, Cover
34	Shelf, F.C.
35	Trim, Shelf
36	Shelf Stud, Saddle L.S.
37	WP488729 Whirlpool Refrigerator Door Screw
38	Pan, Crisper
39	Overlay, Pan
40	Meat, Pan
41	WP982704 Whirlpool Refrigerator Container
42	Hole Plug, Evaporator
43	Receptacle Cap
44	WP841180A Whirlpool Microwave Glass Turntable Tray
45	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
46	WP1100938 Whirlpool Refrigerator Fan Blade
47	WP487887 Whirlpool Refrigerator Screw
48	Grommet
49	WP488488 Whirlpool Refrigerator Screw
50	Gasket, Sealing
51	Scroll, Fan
52	W11624204 Whirlpool Screw
53	Cover, Evaporator
54	Gasket, Evaporator
56	Wiring, Ice Maker
