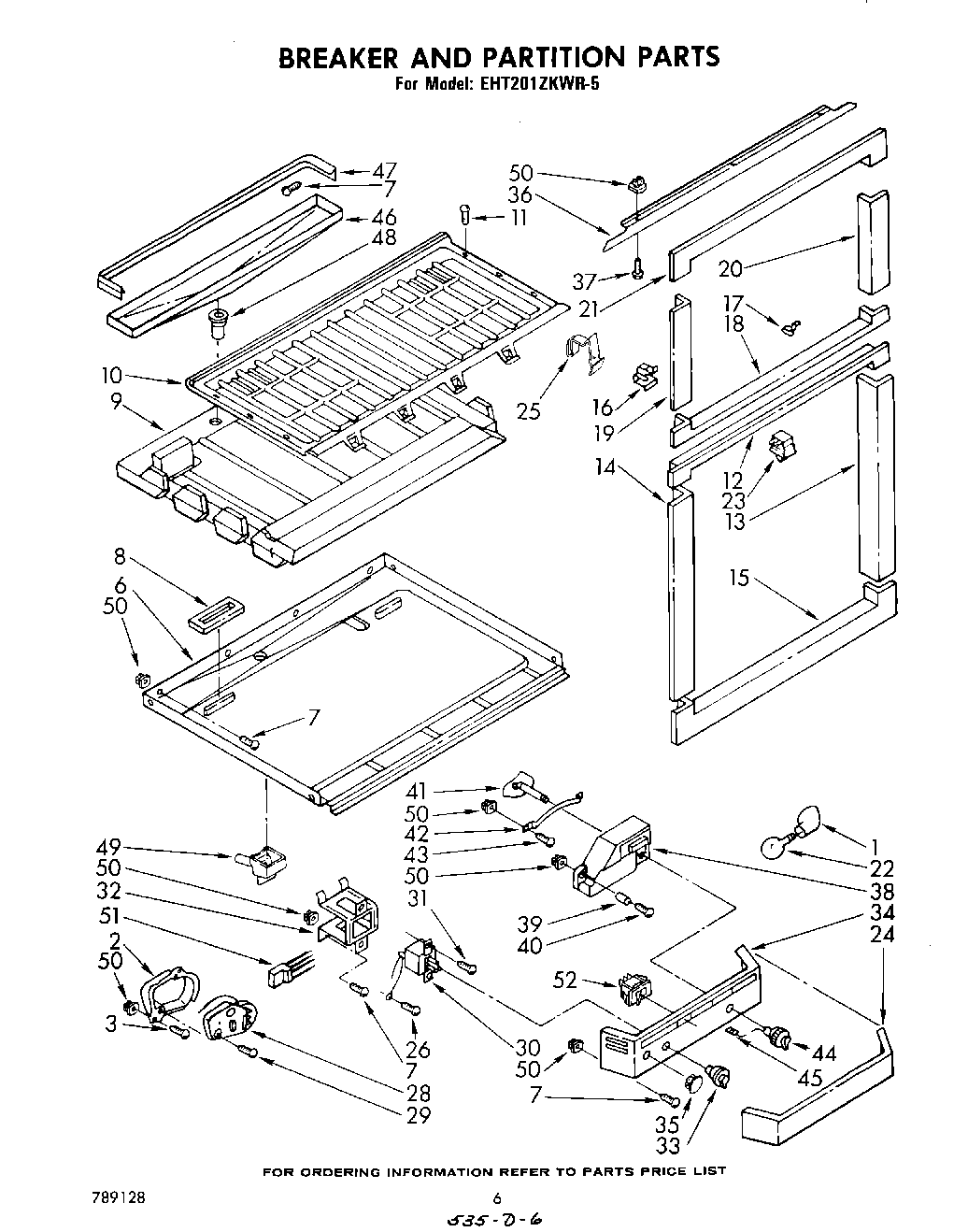

EHT201ZKWR5 04 – BREAKER AND PARTITION

Products

Position	Product
1	4387478 Whirlpool Refrigerator Light Socket
2	Timer, Container
6	Separator (Bottom)
7	W11624204 Whirlpool Screw
8	Gasket, Air Return
9	Insulation, Separator
10	Separator (Top)
11	WP488729 Whirlpool Refrigerator Door Screw
12	Breaker, Mullion Bottom
13	Breaker, R.S.
14	Breaker, L.S.
15	Breaker, Bottom
16	Breaker, Clip
17	Breaker, Trim Clip
18	Breaker, Mullion (Top)
19	Breaker L.S.
20	Breaker R.S.
21	Breaker, Top
22	RANGE ONLY 40W 120V APPL BULB
23	W11384469 Whirlpool Door Switch
24	Light Lens
25	Breaker, Retainer Clip (3)
26	WP489128 Whirlpool Refrigerator Screw
28	Timer, Defrost
29	Screw, 8 x 3/8 (2)
30	WP819470 Whirlpool Refrigerator Thermostat
31	WP965173 Whirlpool Dishwasher Screw
32	Bracket, Thermostat
33	Knob, Temperature Control
34	Panel, Control
35	Hole Plug (2)
36	Baffle, Liner Top
37	WP489069 Whirlpool Compactor Screw
38	Air Diffuser
39	836667 Whirlpool Refrigerator Spacer
40	Screw, 8 x 1-1/4 (3)
41	Damper, Air
42	Retrainer, Air Dampener
43	Screw, 8 x 3/8
44	Control Knob
45	Knob, Retainer
46	Pan, Evaporator Drain
47	Gasket, Drain Pan
48	Fitting, Drain Pan
49	Cup, Drain
50	Grommet
51	Liner Wiring (Defrost Timer)
52	WP938213 Whirlpool Refrigerator Power Switch
