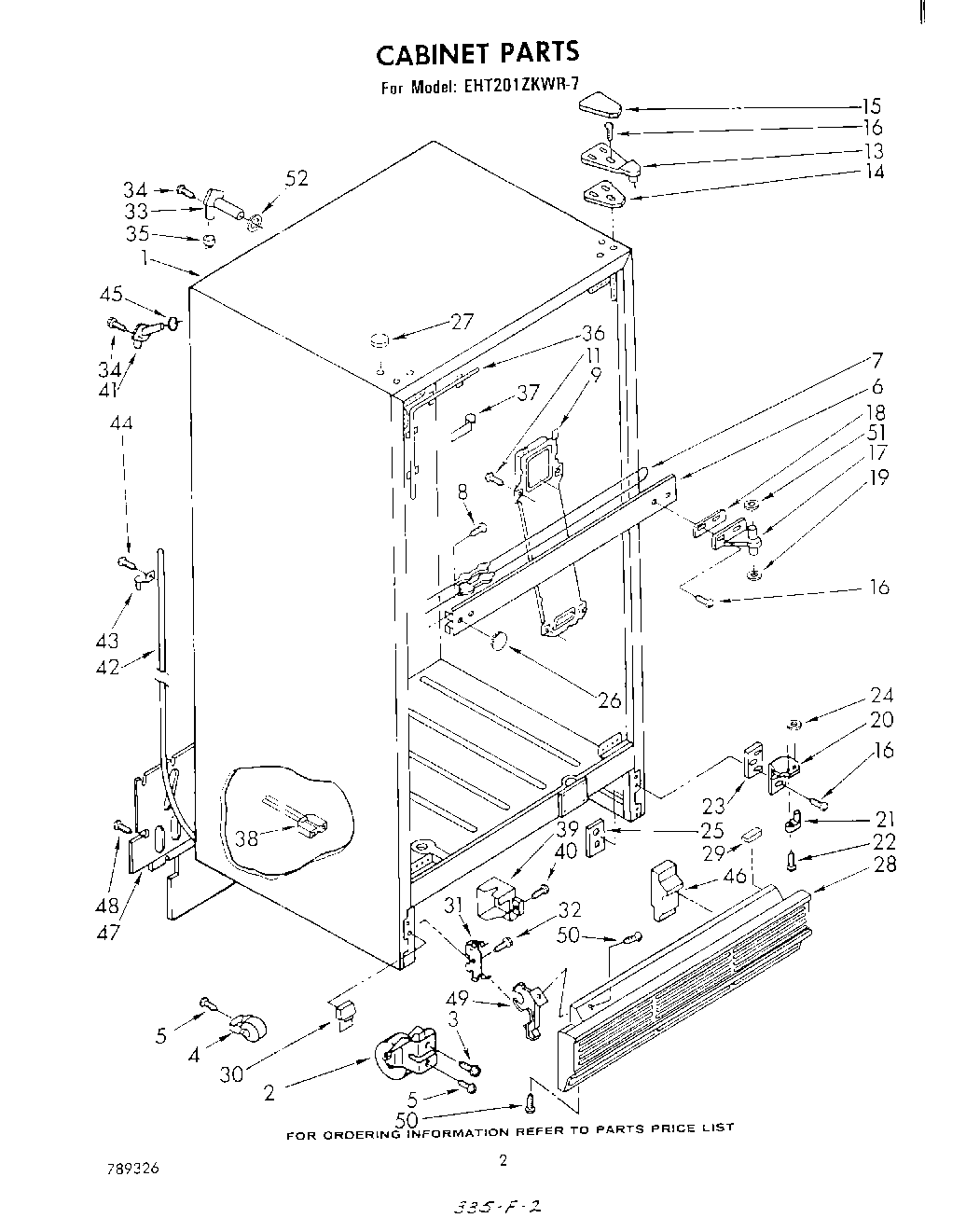

EHT201ZKWR7 02 – CABINET

EHT201ZKWR7 02 – CABINET

Written by

in

EHT201ZKWR7 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw, 5/16-24 x 1
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6Center Rail (White)
6Center Rail (Almond)
6Center Rail (Golden Harvest)
6Center Rail (Coffee)
6WPL 1100304
6WPL 1100303
7Heater, Mullion
8Screw (Repair)
8Screw, 8 x 3/8
9Duct, Air
11WP488488 Whirlpool Refrigerator Screw
13Hinge, Top
14Shim, Hinge
15Hinge Cover (Golden Harvest)
15Hinge, Cover (Coffee)
151119787 Whirlpool Refrigerator Hinge Cover
15Hinge Cover (Toast)
16WP999367 Whirlpool Refrigerator Screw
16Screw (Repair)
17Hinge, Center
18Shim, Hinge Center
19WP488296 Whirlpool Washer Refrigerator
20Hinge, Bottom
21Hinge Pin, Bottom
22Screw 10-32 x 5/16
23Shim, Bottom Hinge
25Tap Plate
26Plug, Hole (2) (Toast)
26Hole Plug (Coffee)
26Hole Plug (2) (Platinum)
26Hole, Plug (White)
26Hole, Plug (Almond)
26Hole Plug (Golden Harvest)
27Hole Plug (3) (Toast)
27Hole Plug (2) (Almond)
27Hole Plug (2) (Golden Harvest)
27Hole Plug (2) (White)
27Hole Plug (Coffee)
27Hole Plug (3) (Platinum)
28Exterior, Grille (White)
28Exterior, Grille (Coffee)
28Exterior, Grille (Toast)
28Exterior, Grille (Golden Harvest)
28Exterior, Grille (Platinum)
28Exterior, Grille (Almond)
29Bumper, Grille
30WPL 989929
30WPL 989931
30Filler, Grille (Platinum)
30Filler, Grille (Toast)
30Corner, Filler (
30WPL 989928
31WPL 989068
32W11624204 Whirlpool Screw
33WP2196157 Whirlpool Fill Tube
34WP98165 Whirlpool Screw
35WP487996 Whirlpool Refrigerator Cap Tube
36WPL 936075
37WPL 935663
38WPL 548734
39WPL 549947
40WP488729 Whirlpool Refrigerator Door Screw
41Drain Fitting
428316810 Whirlpool Refrigerator Drain Tube
43WPL 836077
44WP489069 Whirlpool Compactor Screw
45Gasket, Seal
46WPL 836372
47WPL 850459
49WP944224 Whirlpool Refrigerator Support
50WPL 489085
51WP487802 Whirlpool Refrigerator Washer
52WP1106508 Whirlpool Refrigerator Gasket
