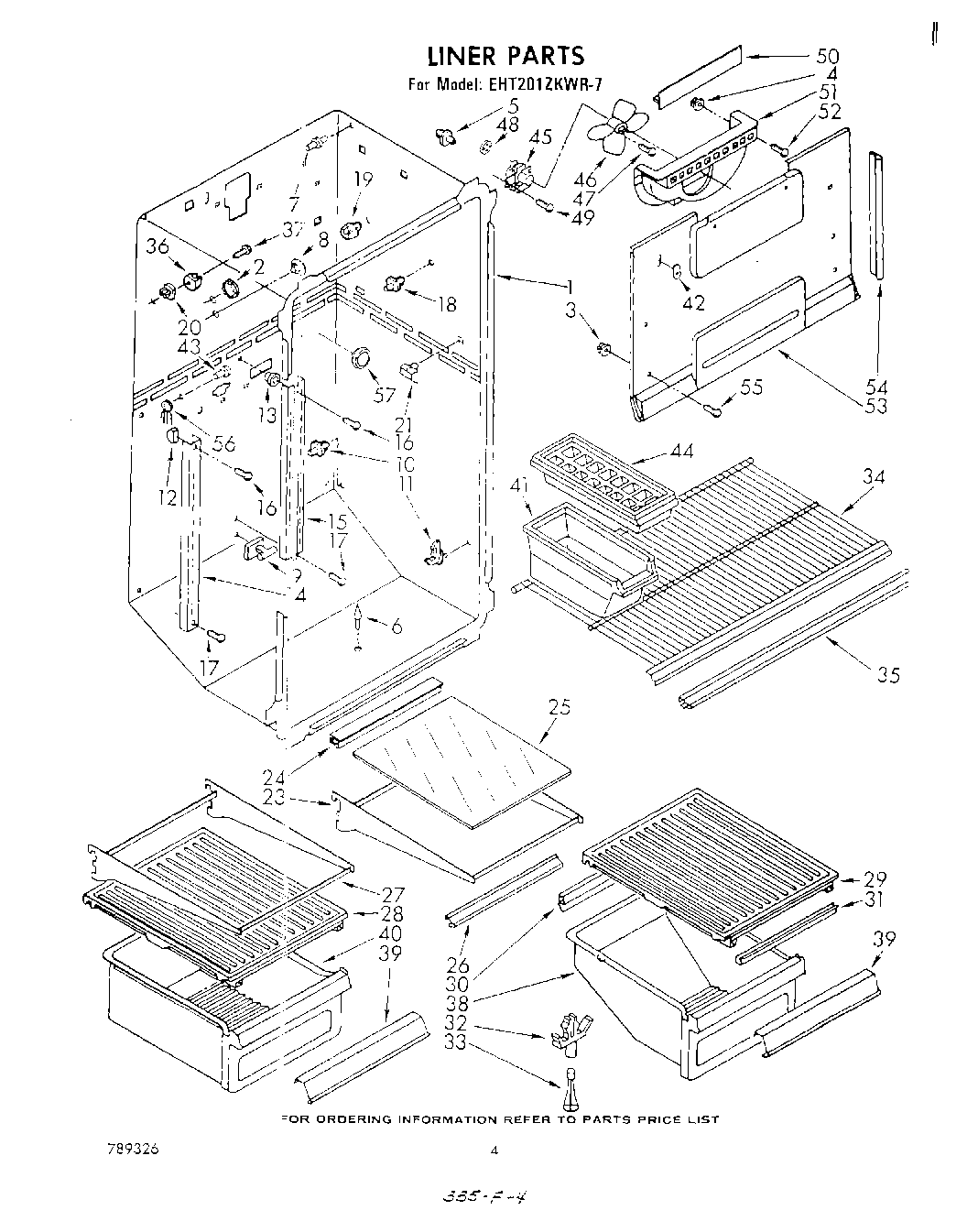

| 1 | Liner (Not A Serviceable Part) |
| 2 | Hole, Plug |
| 3 | Grommet |
| 4 | Grommet |
| 5 | Screw, Grommet |
| 6 | Grommet, Crisper Cover |
| 7 | Stud |
| 8 | Hole, Plug |
| 9 | Stud, Support Rear |
| 10 | Shelf, Stud |
| 11 | Shelf, Stud |
| 12 | 520965 Whirlpool Refrigerator Support |
| 13 | Screw Support, Center Ladder (2) |
| 14 | Shelf, Ladder (2) |
| 15 | Shelf, Ladder Center |
| 16 | Screw, 8 x 1-1/4 (3) |
| 17 | Screw (Repair) |
| 17 | Screw, 8-32 x 1-1/4 |
| 18 | Shelf, Stud (2) |
| 19 | Shelf Stud Saddle (R.S.) |
| 20 | Screw Grommet |
| 21 | Retainer, Stud (4) |
| 23 | Shelf, Cantilever |
| 24 | Retainer, Glass Shelf |
| 25 | Glass, Shelf |
| 26 | Trim, Shelf |
| 27 | Pan Shelf, Cantilever |
| 28 | Pan, Cover |
| 29 | Pan, Cover |
| 30 | Crisper Gasket, Rear |
| 31 | Crisper Gasket, Front |
| 32 | Support, Cover |
| 33 | Post, Cover |
| 34 | Shelf, F.C. |
| 35 | Trim, Shelf |
| 36 | Shelf Stud, Saddle L.S. |
| 37 | WP488729 Whirlpool Refrigerator Door Screw |
| 38 | Pan, Crisper |
| 39 | Overlay, Pan |
| 40 | Meat, Pan |
| 41 | WP982704 Whirlpool Refrigerator Container |
| 42 | Hole Plug, Evaporator |
| 43 | Receptacle Cap |
| 44 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 45 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 46 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 47 | WP487887 Whirlpool Refrigerator Screw |
| 48 | Grommet |
| 49 | WP488488 Whirlpool Refrigerator Screw |
| 50 | Gasket, Sealing |
| 51 | Scroll, Fan |
| 52 | W11624204 Whirlpool Screw |
| 53 | Cover, Evaporator |
| 54 | Gasket, Evaporator |
| 56 | Wiring, Ice Maker |
| 57 | Grommet Drain Fitting |
