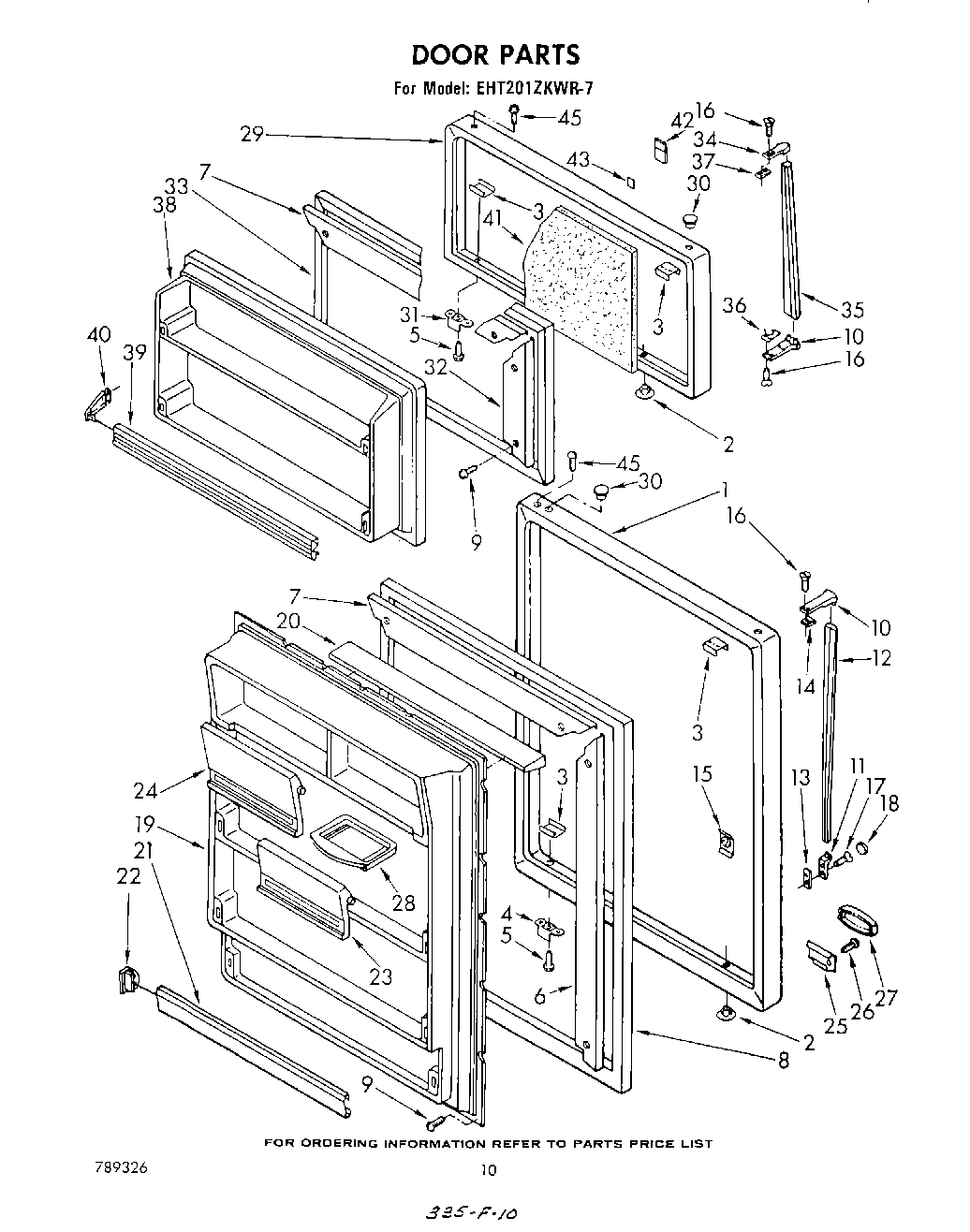

EHT201ZKWR7 06 – DOOR, NOT ILLUSTRATED

EHT201ZKWR7 06 – DOOR, NOT ILLUSTRATED

Written by

in

EHT201ZKWR7 06 – DOOR, NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	paint, spray 13 oz. (coffee)
	WPL 677813
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest
	WPL 677818
	WPL LIT1105251
	WPL 677967
	WPL LIT789326
	WPL 677821
	WPL LIT942935
	Leveler (Thinner)
	WPL LIT946866
	350956 Whirlpool Spray Assembly
1	Refrigerator Door (Platinum)
1	Door, Refrigerator (Almond)
1	Door, Refrigerator (Toast)
1	Door, Refrigerator (White)
1	Door, Refrigerator (Coffee)
1	Door, Refrigerator (Golden Harvest)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	Screw (Repair)
5	WP488921 Whirlpool Refrigerator Screw
6	Retainer, Gasket Side
7	Retainer, Gasket Top
8	2188450A Whirlpool Refrigerator Door Gasket
9	SCREW
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center
13	Shim, Handle End
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
16	Screw (Repair)
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Panel
19	Panel, Interior
20	Support, Door Dike
21	Trim, Door Shelf
22	WP839904 Whirlpool Refrigerator Endcap Trim
23	Compartment, Door Butter
24	Compartment, Utility
25	Clip, Medallion
27	Medallion (Almond)
27	Medallion (Golden Harvest)
27	Medallion (Coffee)
27	Medallion (White)
27	Medallion (Platinum)
27	Medallion (Toast)
29	Freezer Door (Platinum) (Also Order Item 41 When Replacing Door)
29	Door, Freezer (Also Order Item 36) (White)
29	Door, Freezer (Also Order Item 36) (Almond)
29	Door, Freezer (Also Order Item 36) (Golden Harvest)
29	Door, Freezer (Also Order Item 36) (Coffee)
29	Freezer Door (Toast)
30	Hole Plug (Coffee)
30	Hole Plug (Platinum)
30	Hole Plug (Almond)
30	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
30	Hole Plug (Toast)
31	Bracket, Door Stop
32	Retainer Gasket Side
33	2188460A Whirlpool Refrigerator Door Gasket
34	WP2191882 Whirlpool Refrigerator Handle End Cap
35	WPL 982944
36	Spa
37	Shim, Handle
38	WPL 482558
38	WPL 943946
39	WPL 986542
40	WP986540 Whirlpool Refrigerator Endcap Trim
42	WPL 945117
43	Tape Strip
45	WPL 72112
45	212643 Whirlpool Refrigerator Permagum Sealer
45	511873 Whirlpool Refrigerator Paint
45	606755 Whirlpool Refrigerator Bag
45	833938 Whirlpool Refrigerator Terminal
45	72032 Whirlpool Touch Up Paint Black
45	Platinum (Uncut)
45	Enamal, Toast (1 Qt. Uncut)
45	72113 Whirlpool Touch-Up Paint
45	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
45	Almond (Uncut)
45	WP72107 Whirlpool Touchup
45	799344 Whirlpool Refrigerator Paint
45	Golden Harvest (Uncut)
45	876370 Whirlpool Refrigerator Insulation
45	WP503695 Whirlpool Refrigerator Sealer
45	Enamel, Coffee (1 Qt. Uncut)
45	Paint, Touch-Up 1/2 Oz. (Coffee)
45	WP8281206 Whirlpool Refrigerator Screw
45	WPL 876029
45	WPL 799833
45	WPL 799832
45	Enamel, Black (1 Qt. Uncut)
45	CEMENT, ALUMILASTIC (1 1/4 OZ.)
45	Silicone (Spray)
45	TAPE, VINYL (3/4 X 108“)
45	WP542638 Whirlpool Refrigerator Grease
45	WP505587 Whirlpool Refrigerator Sealer
45	72017 Whirlpool Appliance Touch-Up Paint White
