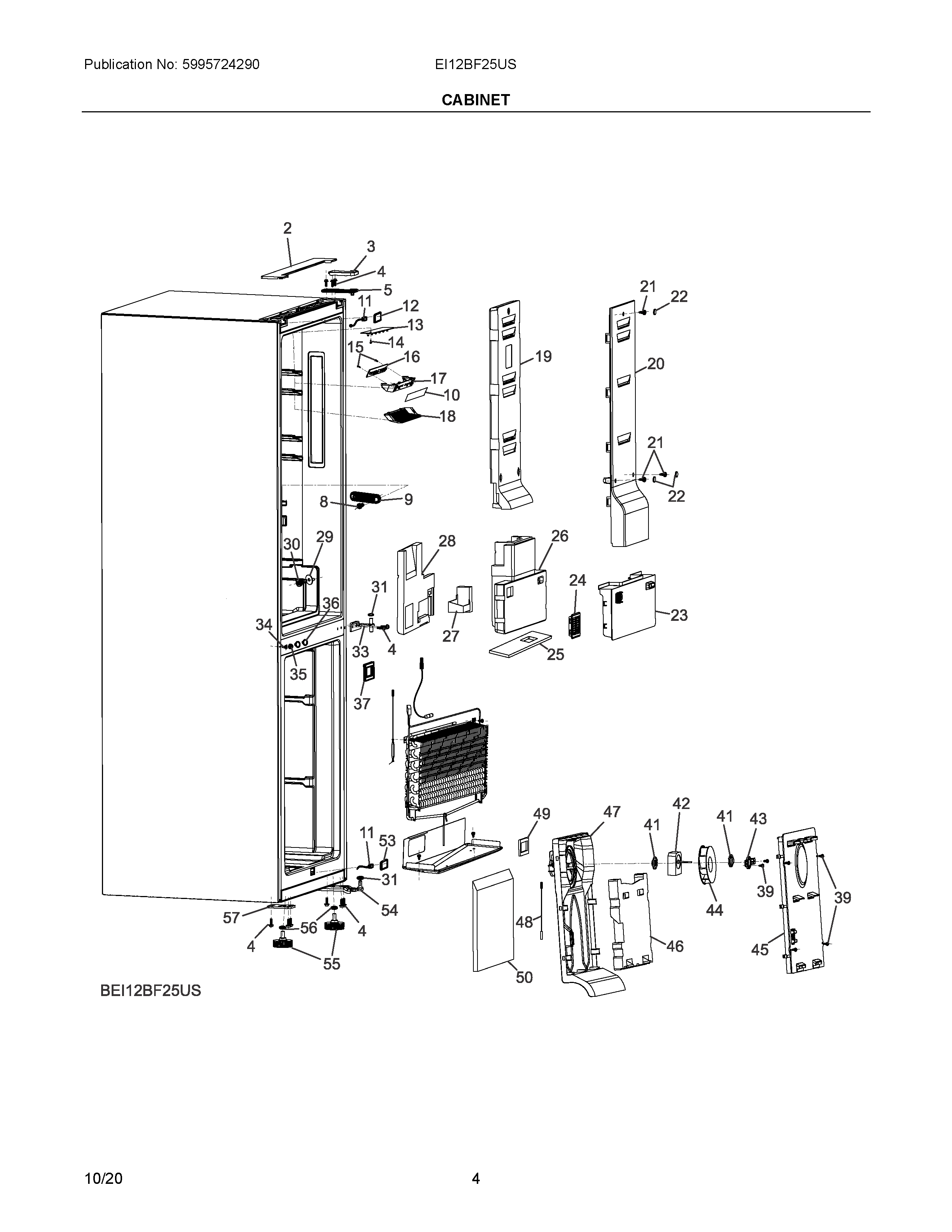

EI12BF25US 03 – CABINET

EI12BF25US 03 – CABINET

Written by

in

EI12BF25US 03 – CABINET

Products

PositionProduct
NIA5304519531 Frigidaire Refrigerator Cover
NIAWCI 5304519539
25304519529 Frigidaire Refrigerator Cover
3COVER, UPPER HINGE, RH SWING
4SCREW, SELF TAPPING, (11), SPECIAL FLANGE
5HINGE, DOOR, UPPER
8SCREW, SELF TAPPING
9BUTTON, INSULATION
10OVERLAY, BUTTON DISPLAY
11SWITCH, REED, (2)
12COVER, REED SWITCH, LH UPPER
135304519540 Frigidaire Lamp
14SCREW, SELF TAPPING
15SCREW, SELF TAPPING, (2)
16PC BOARD, DISPLAY
17HOUSING, DISPLAY BOARD
18COVER, LAMP
19INSULATION, AIR DUCT, UPPER
20COVER, AIR DUCT, UPPER
21SCREW, SELF TAPPING, (3)
22COVER, SCREW HOLE, (3)
23COVER, AIR DUCT, LOWER
24COVER, AIR RETURN, FRESH FOOD
25SEAL, AIR DUCT, LOWER
26INSULATION, AIR DUCT, LOWER
275304519554 Frigidaire Refrigerator Damper Assembly
28INSULATION, DAMPER
29WASHER, (2)
30ROLLER, DRAWER, (2)
31WASHER, HINGE PIN, (2)
33HINGE, MIDDLE
34SCREW, SELF TAPPING
35COVER, SCREW HOLE
36COVER, SCREW HOLE, (2)
37WASHER, SEALING
39SCREW, SELF TAPPING, (10)
41GROMMET, FAN MOTOR, (2)
42MOTOR, EVAPORATOR FAN
43SUPPORT, FAN MOTOR
44BLADE, FAN
45COVER, AIR DUCT, FREEZER
46INSULATION, AIR DUCT, FREEZER
47DUCT, AIR, FREEZER
48SENSOR, TEMPERATURE
49WASHER, SEALING
50BLOCK, SPONGE
53COVER, REED SWITCH, LOWER
54HINGE, LOWER
555304519577 Frigidaire Foot Assembly
56CUSHION, LEVE
57WCI 5304519579
