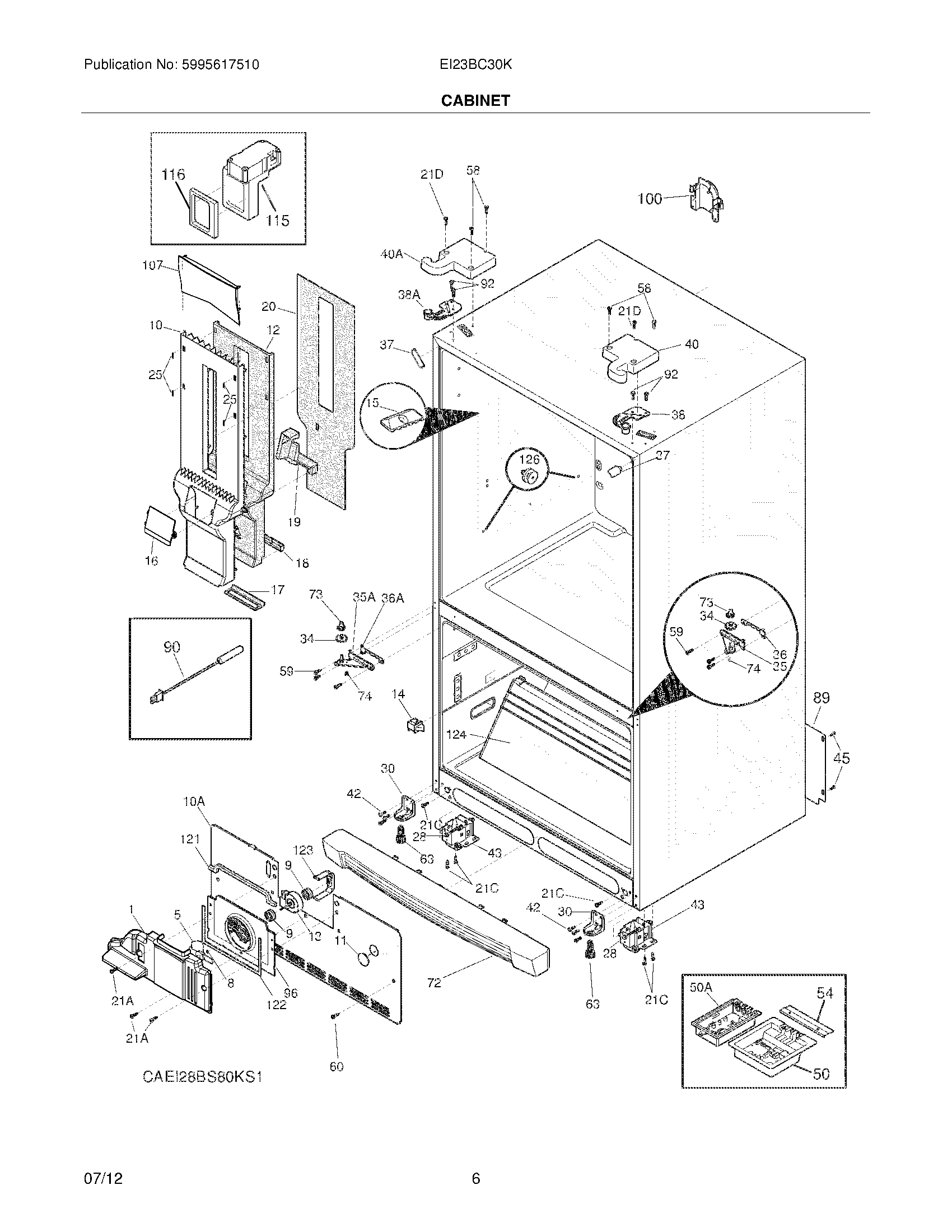

EI23BC30KB2 07 – CABINET

EI23BC30KB2 07 – CABINET

Written by

in

EI23BC30KB2 07 – CABINET

Products

Position	Product
NI	WCI 242045501
NI	240494001 Frigidaire Refrigerator Plug Button
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	241969001 Frigidaire Refrigerator Cap
NI	5304453707 Frigidaire Oven Screw
NI	WCI 241953904
NI	241852501 Frigidaire Refrigerator Clip
NI	241953905 Frigidaire Screw
NI	241810104 Frigidaire Refrigerator Seal
NI	242104901 Frigidaire Refrigerator Wiring Harness
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	WCI 241859801
1	5304503130 Frigidaire Refrigerator Cover
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
10	WCI 242058504
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	WCI 240505803
15	WCI 241891104
16	WCI 242164401
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922902
21C	218252201 Frigidaire Refrigerator Screw
21D	134154100 Frigidaire Screw 10-32 x 0.375 Co
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40A	242099804 Frigidaire Refrigerator Upper Hinge Cover
40	242099801 Frigidaire COVER-UPPER HINGE
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	218362501 Frigidaire Refrigerator Screw
50	WCI 242115251
50A	WCI 241891603
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	241500303 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	WCI 241930302
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	WCI 242026701
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
100	242157601 Frigidaire Refrigerator Cover
107	241963102 Frigidaire Refrigerator Duct-Air
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
124	242006903 Frigidaire Refrigerator Air Duct
126	5304515677 Frigidaire Package of 4 Screws
