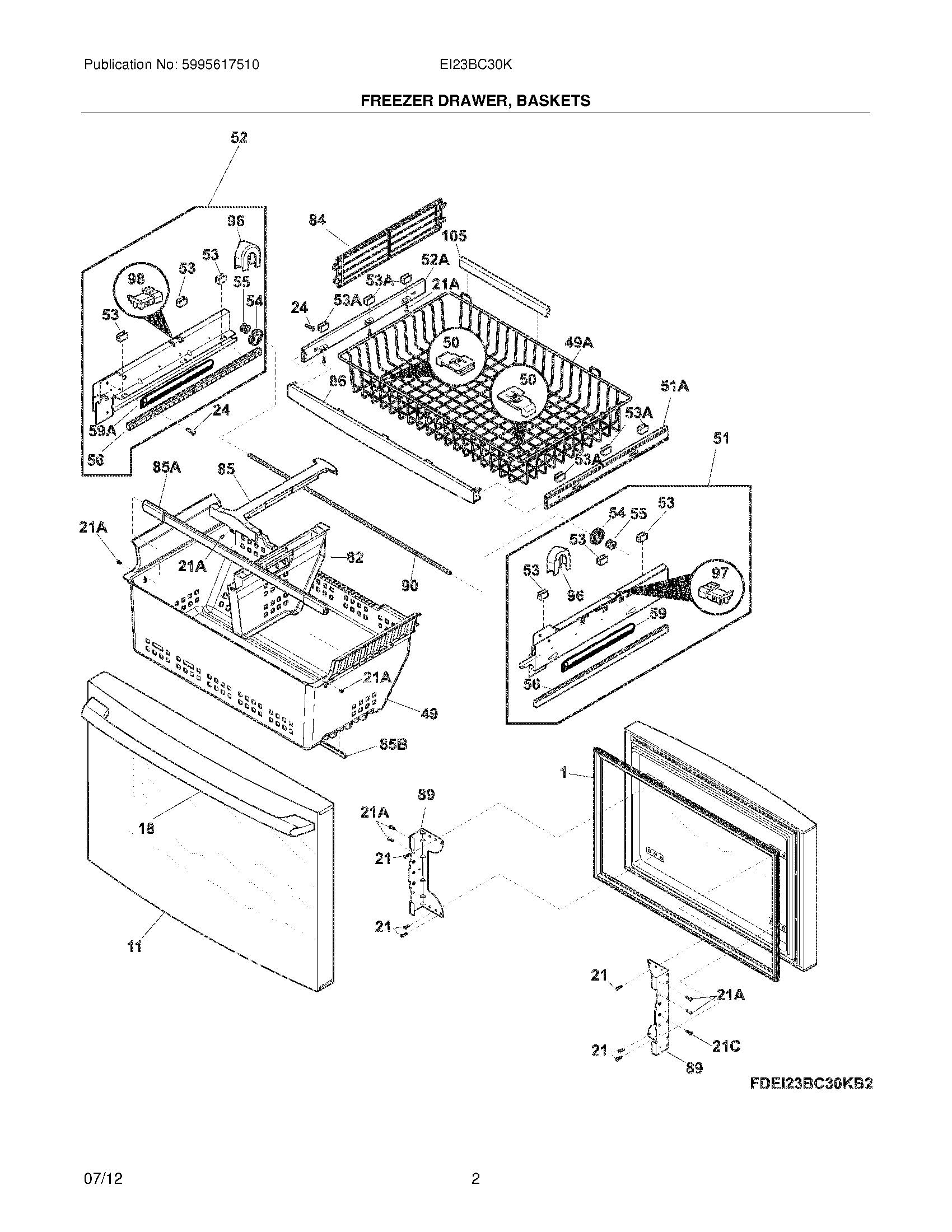

EI23BC30KS2 03 – FREEZER DRAWER, BASKETS

EI23BC30KS2 03 – FREEZER DRAWER, BASKETS

Written by

in

EI23BC30KS2 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242011101 Frigidaire Refrigerator Pin-Lock
NI242139201 Frigidaire Compression Spring
NI5304467131 Frigidaire Refrigerator Wrench
NI242039701 Frigidaire Refrigerator Screw
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI241979601 Frigidaire Refrigerator Bumper
NI218755401 Frigidaire Refrigerator Screw Set
NI218755504 Frigidaire Refrigerator Shoulder Screw
1GASKET
11DOOR-FRZR, STAINLESS, COMPLETE ASSY
18241881310 Frigidaire Refrigerator Handle
21C241899703 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21242015001 Frigidaire Refrigerator Screw
21C5304497384 Frigidaire Refrigerator Plate
245304515677 Frigidaire Package of 4 Screws
49A241780811 Frigidaire Refrigerator Basket-Frzr
495304526200 Frigidaire Refrigerator Basket
50242219502 Frigidaire Refrigerator Clip-Basket
51WCI 241883605
51A241894221 Frigidaire Refrigerator Assembly-Slide
52A241894222 Frigidaire Refrigerator Slide Assembly
52WCI 241883705
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
53WCI 241824201
54241770201 Frigidaire Refrigerator Pinion
55241770301 Frigidaire Guard
56WCI 242163802
56WCI 242163801
59A5304474656 Frigidaire Refrigerator Self-Close Assembly
595304474655 Frigidaire Refrigerator Self-Close Assembly
82242131401 Frigidaire Divider
84241780905 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85B241872203 Frigidaire Refrigerator Beam Support
85242139401 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90241770705 Frigidaire Bar
96241973501 Frigidaire Refrigerator Cover Pinion White
97241926401 Frigidaire Refrigerator Actuator
98241926402 Frigidaire Refrigerator Actuator
105242116801 Frigidaire Refrigerator Trim-Basket
