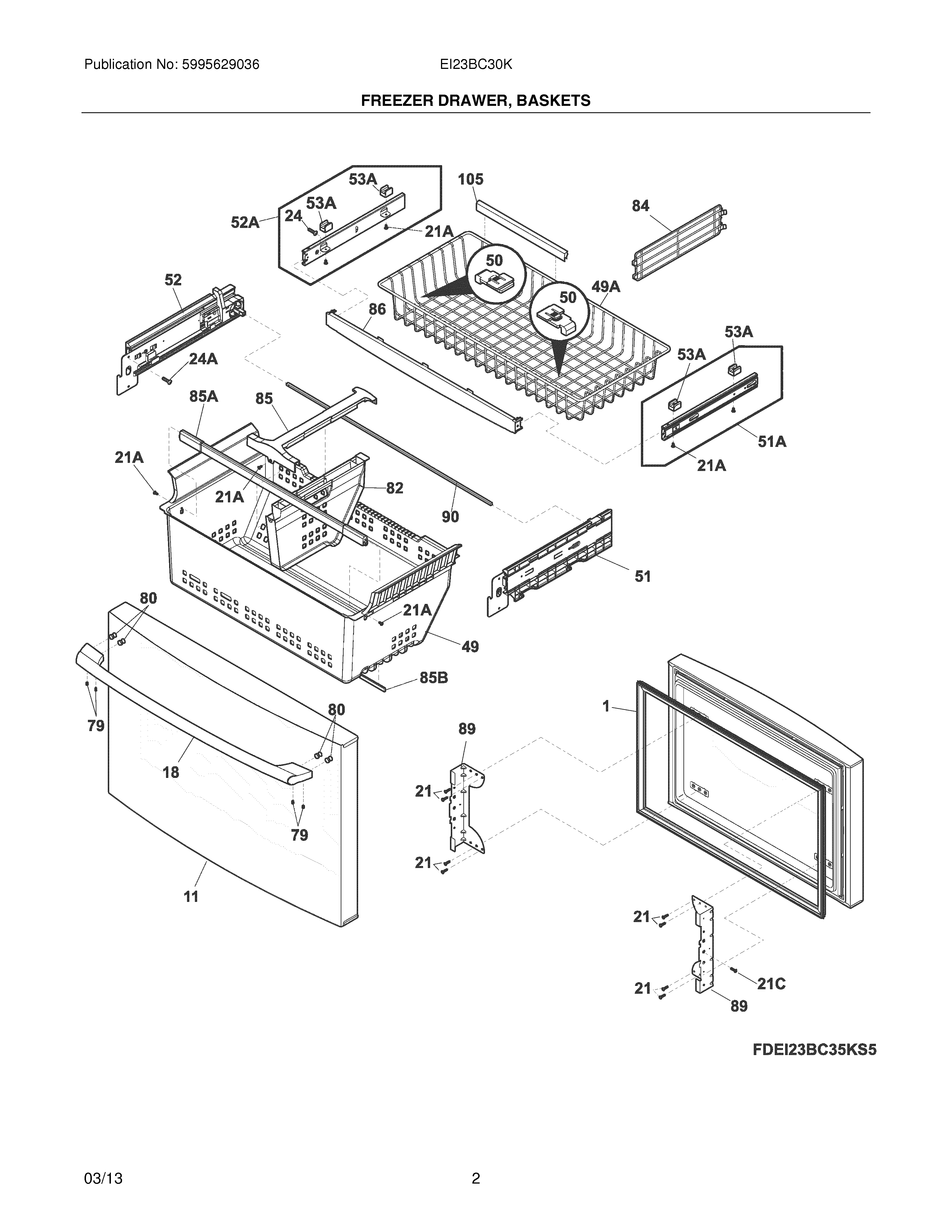

EI23BC30KS3 03 – FREEZER DRAWER, BASKETS

EI23BC30KS3 03 – FREEZER DRAWER, BASKETS

Written by

in

EI23BC30KS3 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242015001 Frigidaire Refrigerator Screw
NI242146401 Frigidaire Refrigerator Screw
NI242011101 Frigidaire Refrigerator Pin-Lock
NI242039702 Frigidaire Refrigerator Screw
NI242139201 Frigidaire Compression Spring
NI5304467131 Frigidaire Refrigerator Wrench
NI5304497384 Frigidaire Refrigerator Plate
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
1GASKET
11DOOR-FRZR, STAINLESS, COMPLETE ASSY
18241881310 Frigidaire Refrigerator Handle
21C241899703 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
24A240383412 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
49A241780811 Frigidaire Refrigerator Basket-Frzr
495304526200 Frigidaire Refrigerator Basket
50242219502 Frigidaire Refrigerator Clip-Basket
51A242039701 Frigidaire Refrigerator Screw
51A241894221 Frigidaire Refrigerator Assembly-Slide
515303918694 Frigidaire Refrigerator Cd Rh Slide For Plastic Bask
52A241894222 Frigidaire Refrigerator Slide Assembly
525303918693 Frigidaire Refrigerator Lh Basket Slide
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755401 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
82242131401 Frigidaire Divider
84241780905 Frigidaire Refrigerator Divider
85B241872203 Frigidaire Refrigerator Beam Support
85A242139301 Frigidaire Refrigerator Support-Beam
85242139401 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90242136901 Frigidaire Refrigerator Timing Bar
105242116801 Frigidaire Refrigerator Trim-Basket
