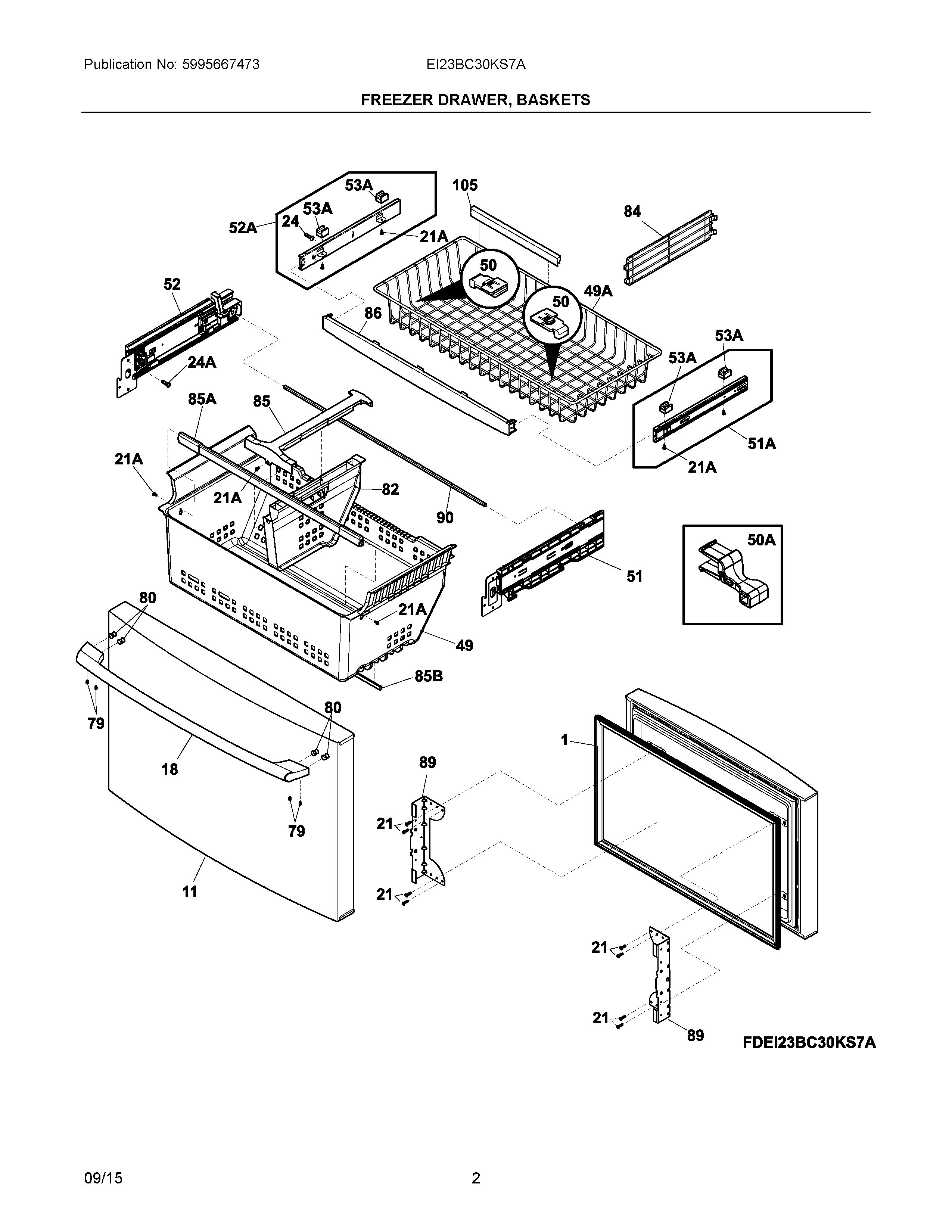

EI23BC30KS7A 02 – FREEZER DRAWER, BASKETS

EI23BC30KS7A 02 – FREEZER DRAWER, BASKETS

Written by

in

EI23BC30KS7A 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242146401 Frigidaire Refrigerator Screw
NIA241953908 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA242039702 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA5304467131 Frigidaire Refrigerator Wrench
NIAA242039701 Frigidaire Refrigerator Screw
NIA241701902 Frigidaire Refrigerator 3/32" Screwdriver
1GASKET
11DOOR-FRZR, STAINLESS, COMPLETE ASSY
18241881310 Frigidaire Refrigerator Handle
21A241953902 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49A241780811 Frigidaire Refrigerator Basket-Frzr
495304526200 Frigidaire Refrigerator Basket
50A5304501271 Frigidaire Shelf Clip
50242219502 Frigidaire Refrigerator Clip-Basket
51A241894227 Frigidaire Refrigerator Slide Assembly
515303918725 Frigidaire Refrigerator Slide Assembly
52A241894228 Frigidaire Refrigerator Slide Assembly
525303918724 Frigidaire Refrigerator Slide Assembly
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755401 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
82242131401 Frigidaire Divider
84241780905 Frigidaire Refrigerator Divider
85242139401 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85B241872203 Frigidaire Refrigerator Beam Support
865304507340 Frigidaire Refrigerator Trim
895304509676 Frigidaire Refrigerator Bracket
90242136901 Frigidaire Refrigerator Timing Bar
105242116801 Frigidaire Refrigerator Trim-Basket
