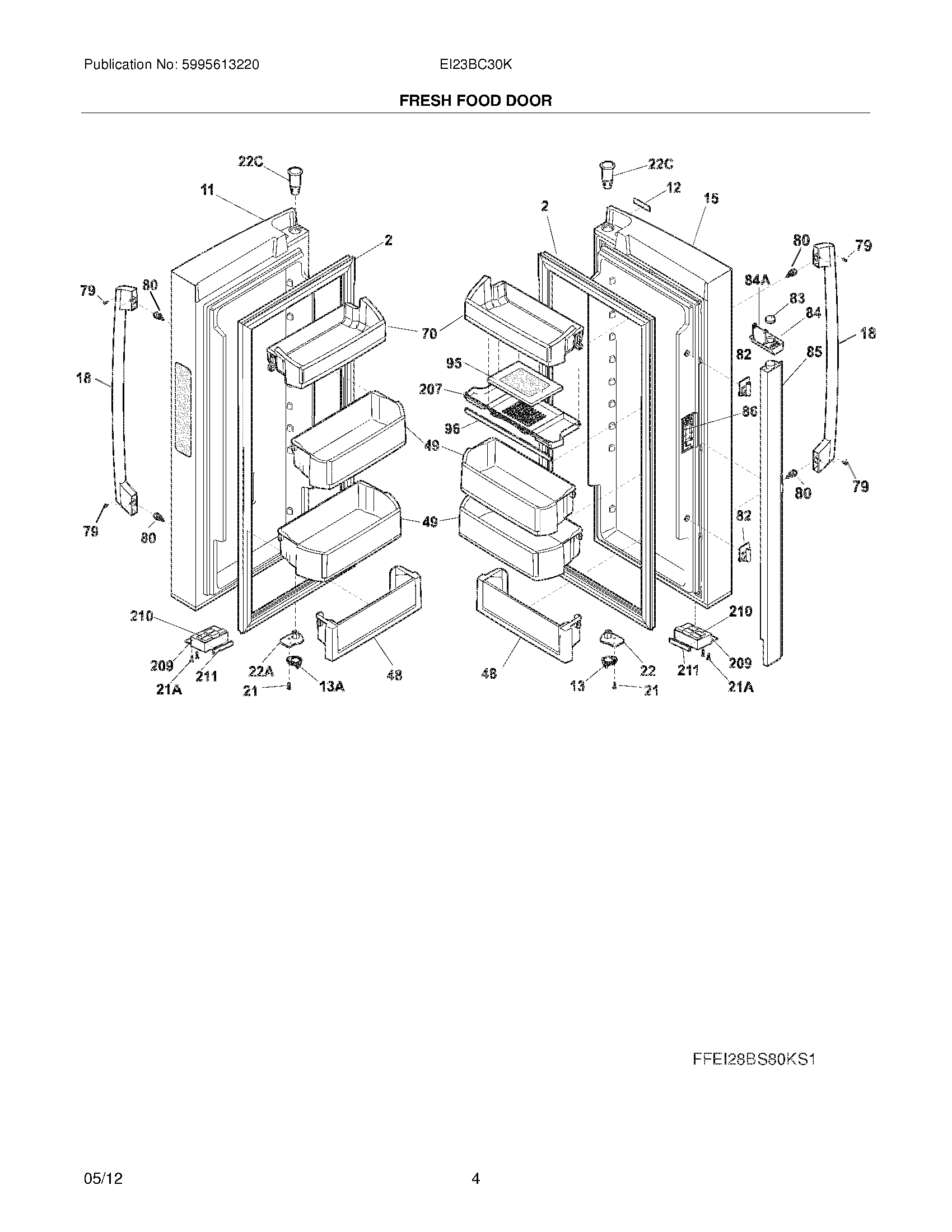

EI23BC30KW1 05 – FRESH FOOD DOOR

EI23BC30KW1 05 – FRESH FOOD DOOR

Written by

in

EI23BC30KW1 05 – FRESH FOOD DOOR

Products

Position	Product
NI	241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI	241788402 Frigidaire Harness-WIRING
NI	HARNESS-WIRING, DOOR
NI	WCI 241891104
NI	242068601 Frigidaire Refrigerator Bumper
NI	240451503 Frigidaire Refrigerator Screw
NI	5304467131 Frigidaire Refrigerator Wrench
2	GASKET-DR
11	WCI 241988094
12	241873303 Frigidaire Refrigerator Nameplate
13A	241868402 Frigidaire Refrigerator Door Stop
13	241868401 Frigidaire Refrigerator Door Stop
15	WCI 241988093
18	WCI 241881322
21A	242015001 Frigidaire Refrigerator Screw
21	242017501 Frigidaire Refrigerator Screw
22	CAM, UPPER HINGE, RH
22A	242075602 Frigidaire Refrigerator Cam
22C	241760401 Frigidaire Refrigerator Bearing
48	241804303 Frigidaire Refrigerator Door Bin
49C	241896103 Frigidaire Refrigerator Door Bin
49	241804006 Frigidaire Door Shelf Bin
70	242131801 Frigidaire Refrigerator Door Bin
79	218755401 Frigidaire Refrigerator Screw Set
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83	241812201 Frigidaire Refrigerator Magnet
84	808274201 Frigidaire Door Guide Assembly
84A	242190501 Frigidaire Refrigerator Mullion Assembly
85	241778808 Frigidaire Refrigerator White Mullion Assembly with Heater
86	241779802 Frigidaire Door Hinge Mullion Flipper
95	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
96	242048001 Frigidaire Refrigerator Trim
207	242047901 Frigidaire Refrigerator Air Filter Housing
209	242291001 Frigidaire Refrigerator Housing
210	241779101 Frigidaire Refrigerator Magnet
211	241979601 Frigidaire Refrigerator Bumper
