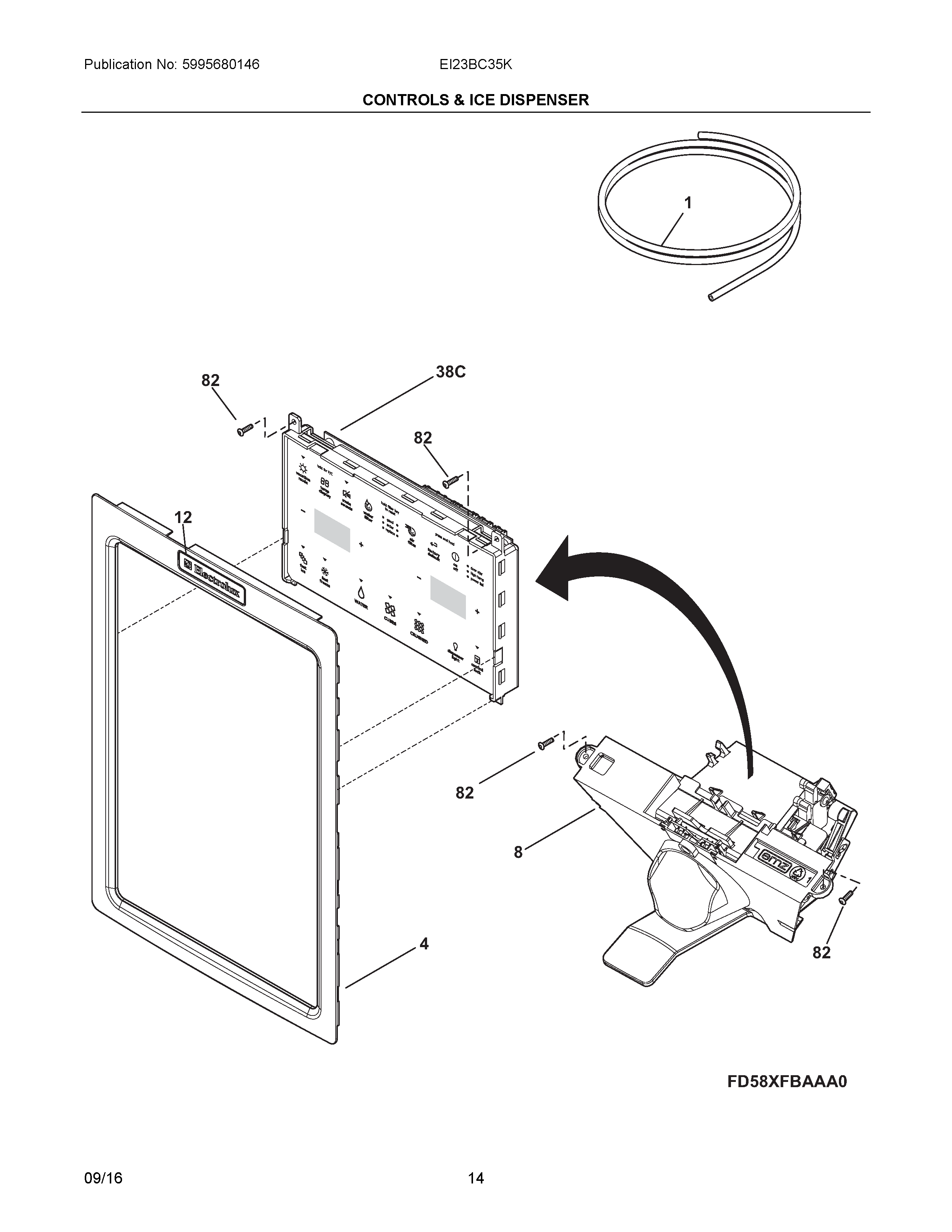

EI23BC35KSCA 07 – CONTROLS & ICE DISPENSER

EI23BC35KSCA 07 – CONTROLS & ICE DISPENSER

Written by

in

EI23BC35KSCA 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIG242220113 Frigidaire Refrigerator Water Tube
NIF242220112 Frigidaire Refrigerator Water Tube
NIWCI 242040801
NIC241965906 Frigidaire Refrigerator Water Tube
NID5303918602 Frigidaire Refrigerator Water Tube Kit
NIB241964707 Frigidaire Refrigerator Water Tube
NIA241920106 Frigidaire Fill Tube Kit
NIE242200102 Frigidaire Refrigerator Clip
NI241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1218976435 Frigidaire Refrigerator Water Inlet Tube
4241893104 Frigidaire Refrigerator Water Dispenser Cover With Nozzle
8242100022 Frigidaire Refrigerator Dispenser Module
12241873301 Frigidaire Refrigerator Nameplate
38C242102802 Frigidaire Refrigerator Control Board
82241953902 Frigidaire Refrigerator Screw
