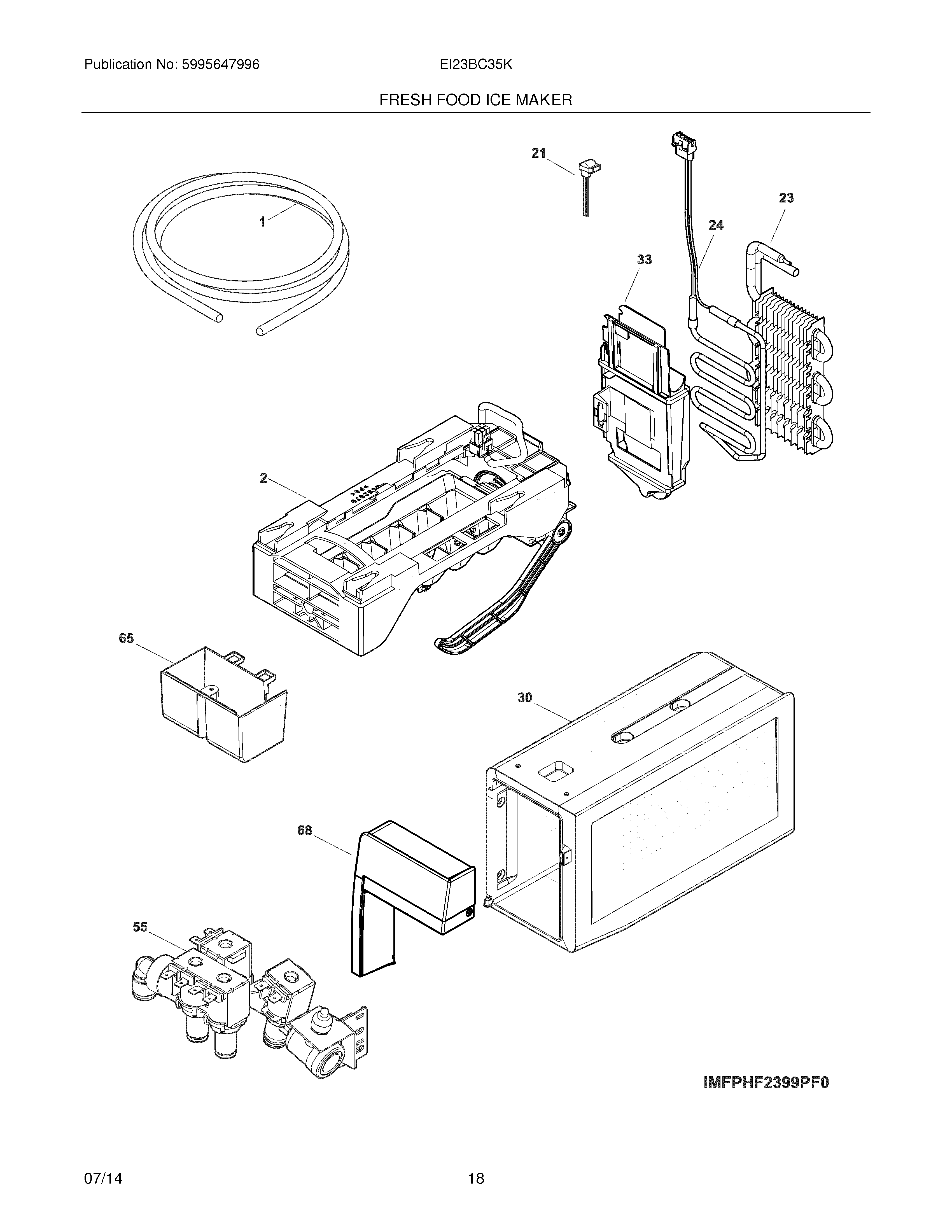

EI23BC35KW8 17 – FRESH FOOD ICE MAKER

Products

Position	Product
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	242220112 Frigidaire Refrigerator Water Tube
NI	242095406 Frigidaire Refrigerator Gasket
NI	241965906 Frigidaire Refrigerator Water Tube
NI	241503901 Frigidaire Refrigerator P-1 Tube Adapter
NI	242096001 Frigidaire Refrigerator Insulation
NI	5303918784 Frigidaire Refrigerator Air Handler Housing
NI	241964707 Frigidaire Refrigerator Water Tube
NI	241920106 Frigidaire Fill Tube Kit
NI	241806601 Frigidaire Refrigerator Water Connector
NI	242220113 Frigidaire Refrigerator Water Tube
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NI	241695906 Frigidaire Screw
NI	241641502 Frigidaire Refrigerator Screw
NI	241844403 Frigidaire Refrigerator Tube
1	218976435 Frigidaire Refrigerator Water Inlet Tube
2	243297613 Frigidaire Refrigerator Ice Maker
21	5303918568 Frigidaire Thermostat Defrost
23	242094603 Frigidaire Refrigerator Evaporator
24	242094802 Frigidaire Defrost Heater
30	242100402 Frigidaire Refrigerator Housing Assembly
33	HOUSING-EVAPORATOR
55	QUAD WATER VALVE
65	242232701 Frigidaire Refrigerator Cover
68	242095002 Frigidaire Refrigerator Cover
