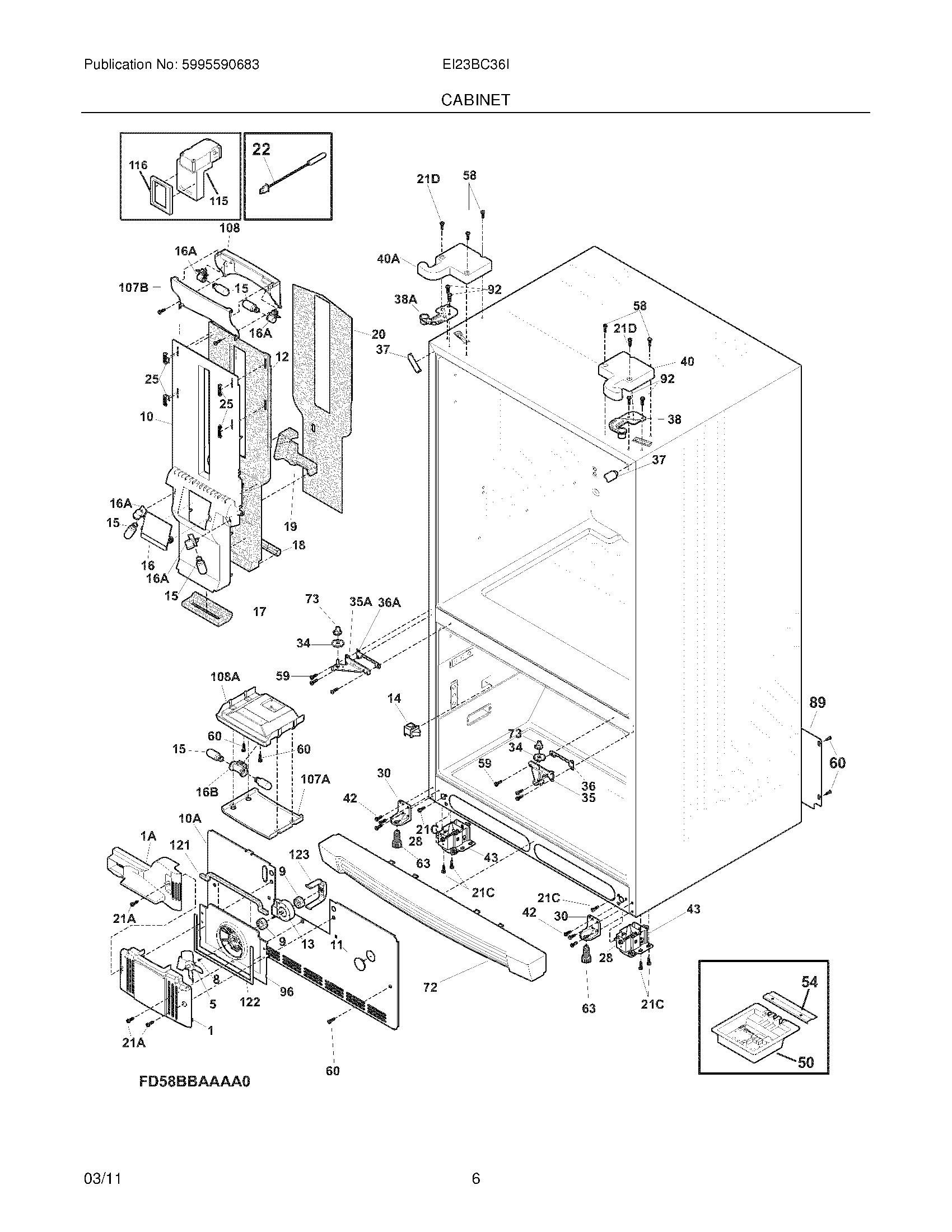

EI23BC36IB2 07 – CABINET

Products

Position	Product
NI	242006903 Frigidaire Refrigerator Air Duct
NI	WCI 241953904
NI	241969001 Frigidaire Refrigerator Cap
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241953905 Frigidaire Screw
NI	242104901 Frigidaire Refrigerator Wiring Harness
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	WCI 242025201
NI	WCI 241859801
1	241859701 Frigidaire Refrigerator Fan Cover
1A	WCI 242052101
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
10	WCI 242058503
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15	5304517886 Frigidaire Refrigerator Light
16B	241622802 Frigidaire Refrigerator Socket-Light
16B	241510802 Frigidaire Refrigerator Wiring Harness
16A	240590403 Frigidaire Refrigerator Light Socket
16A	241969202 Frigidaire Refrigerator Wiring Harness
16	WCI 241860502
16A	WCI 242045502
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922902
21D	241548003 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
22	240597220 Frigidaire Sensor
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40A	242099804 Frigidaire Refrigerator Upper Hinge Cover
40	242099801 Frigidaire COVER-UPPER HINGE
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
50	WCI 241996306
54	241532401 Frigidaire Refrigerator Channel
58	218781101 Frigidaire Handle Screw
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
60	241500303 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	WCI 241930302
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
89	WCI 241733905
92	241710601 Frigidaire Refrigerator Screw
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241971601 Frigidaire Refrigerator Light Shield
107	241971202 Frigidaire Refrigerator Light Shield
108	WCI 241971401
108	241971801 Frigidaire Refrigerator Wiring Cover
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
