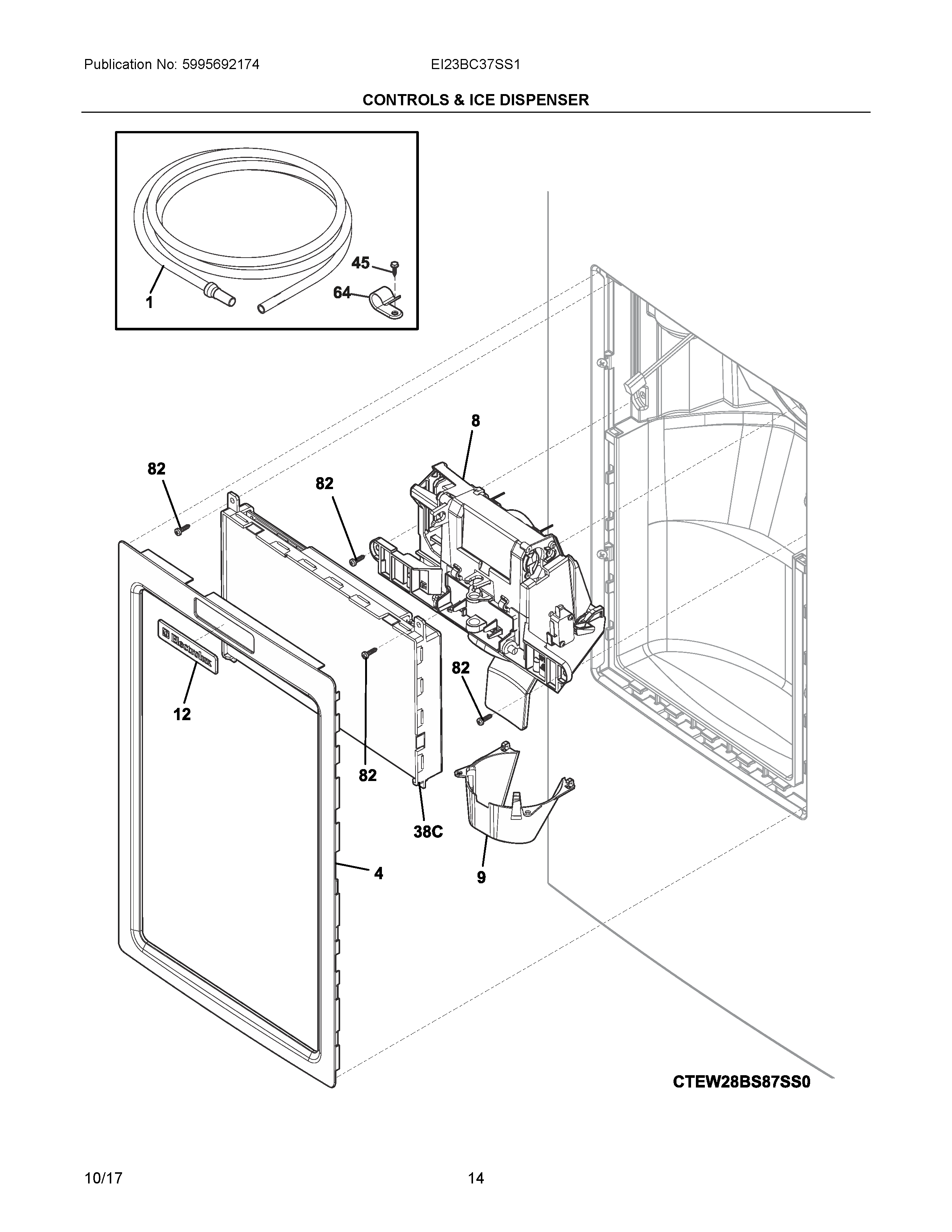

EI23BC37SS1 07 – CONTROLS & ICE DISPENSER

EI23BC37SS1 07 – CONTROLS & ICE DISPENSER

Written by

in

EI23BC37SS1 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI5303918744 Frigidaire Refrigerator Kit
NIA218976435 Frigidaire Refrigerator Water Inlet Tube
NIC242200102 Frigidaire Refrigerator Clip
NIB241806601 Frigidaire Refrigerator Water Connector
NI242040805 Frigidaire Refrigerator Wiring Harness
NI241510904 Frigidaire Refrigerator Dispenser Harness
1241965906 Frigidaire Refrigerator Water Tube
4241893104 Frigidaire Refrigerator Water Dispenser Cover With Nozzle
8242270105 Frigidaire Refrigerator Module
95303918484 Frigidaire Dispenser
12241873301 Frigidaire Refrigerator Nameplate
38C5304508150 Frigidaire Refrigerator Control Assembly
455304455650 Frigidaire Refrigerator Screw
64240396801 Frigidaire Refrigerator Tube Clamp
82241953902 Frigidaire Refrigerator Screw
