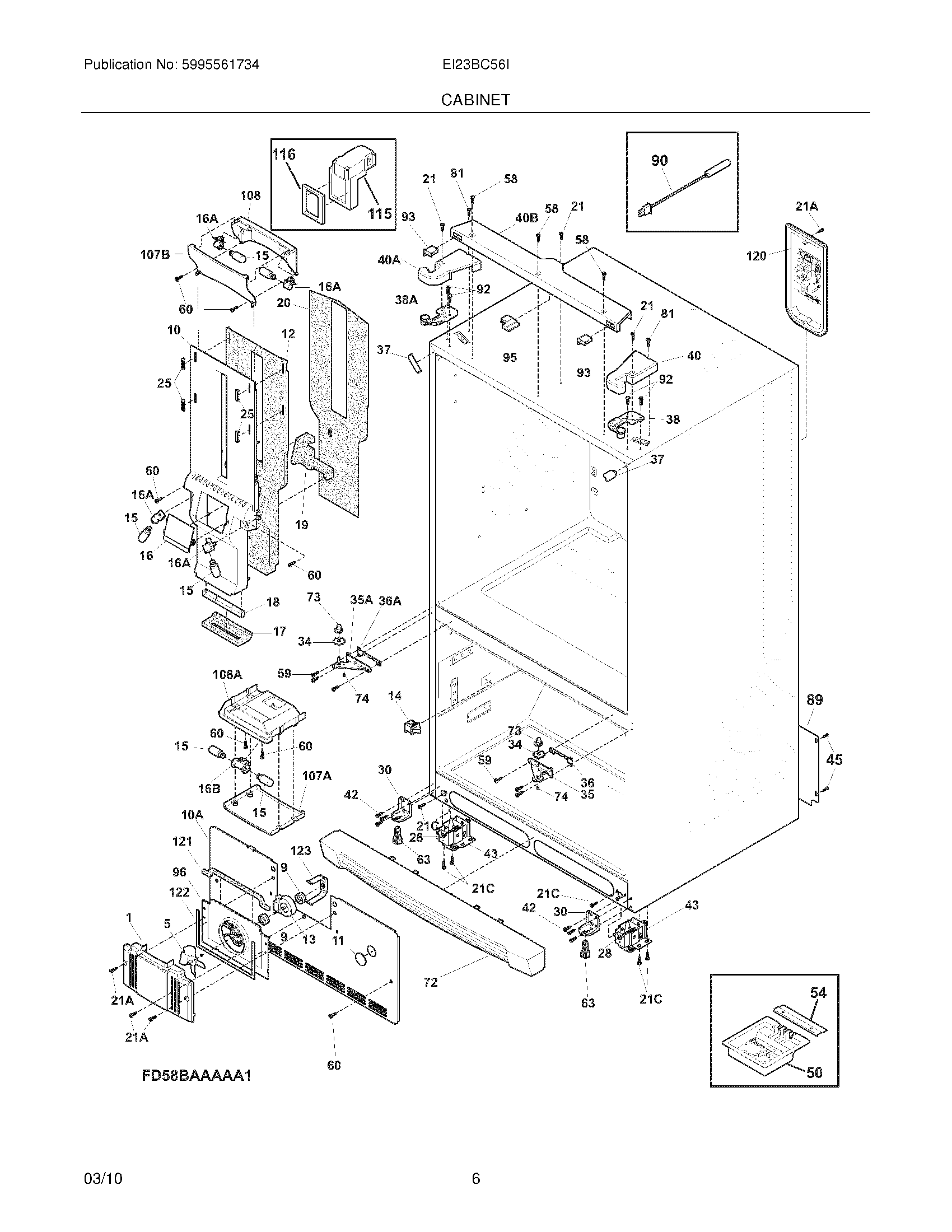

EI23BC56IS2 07 – CABINET

EI23BC56IS2 07 – CABINET

Written by

in

EI23BC56IS2 07 – CABINET

Products

Position	Product
NI	241969001 Frigidaire Refrigerator Cap
NI	242006903 Frigidaire Refrigerator Air Duct
NI	WCI 241859801
NI	240494001 Frigidaire Refrigerator Plug Button
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	WCI 241969201
NI	215474201 Frigidaire Refrigerator Washer
NI	WCI 241953904
1	241859701 Frigidaire Refrigerator Fan Cover
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	241518301 Frigidaire Refrigerator Bushing
10	WCI 241860001
10A	WCI 241860401
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 241859901
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15	5304517886 Frigidaire Refrigerator Light
16B	241622802 Frigidaire Refrigerator Socket-Light
16A	240590403 Frigidaire Refrigerator Light Socket
16	WCI 241860501
16A	241969202 Frigidaire Refrigerator Wiring Harness
16B	241510802 Frigidaire Refrigerator Wiring Harness
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922901
21	241732101 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
22	WCI 5303918416
25	WCI 241949501
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
37	WCI 240337612
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40B	242015901 Frigidaire Refrigerator Harness-Hinge Jumpe
40	WCI 241778001
40B	241862405 Frigidaire Refrigerator Upper Hinge Cover
40A	WCI 241778002
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5304478376 Frigidaire Refrigerator Board Switch
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	5304455650 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	241930301 Frigidaire Refrigerator Grille/Kickplate
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	218755401 Frigidaire Refrigerator Screw Set
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
93	241835505 Frigidaire Refrigerator Light Switch
95	241530501 Frigidaire Refrigerator Humidity Sensor
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241971601 Frigidaire Refrigerator Light Shield
107	241971202 Frigidaire Refrigerator Light Shield
108	WCI 241971401
108	241971801 Frigidaire Refrigerator Wiring Cover
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
120	WCI 241956703
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
