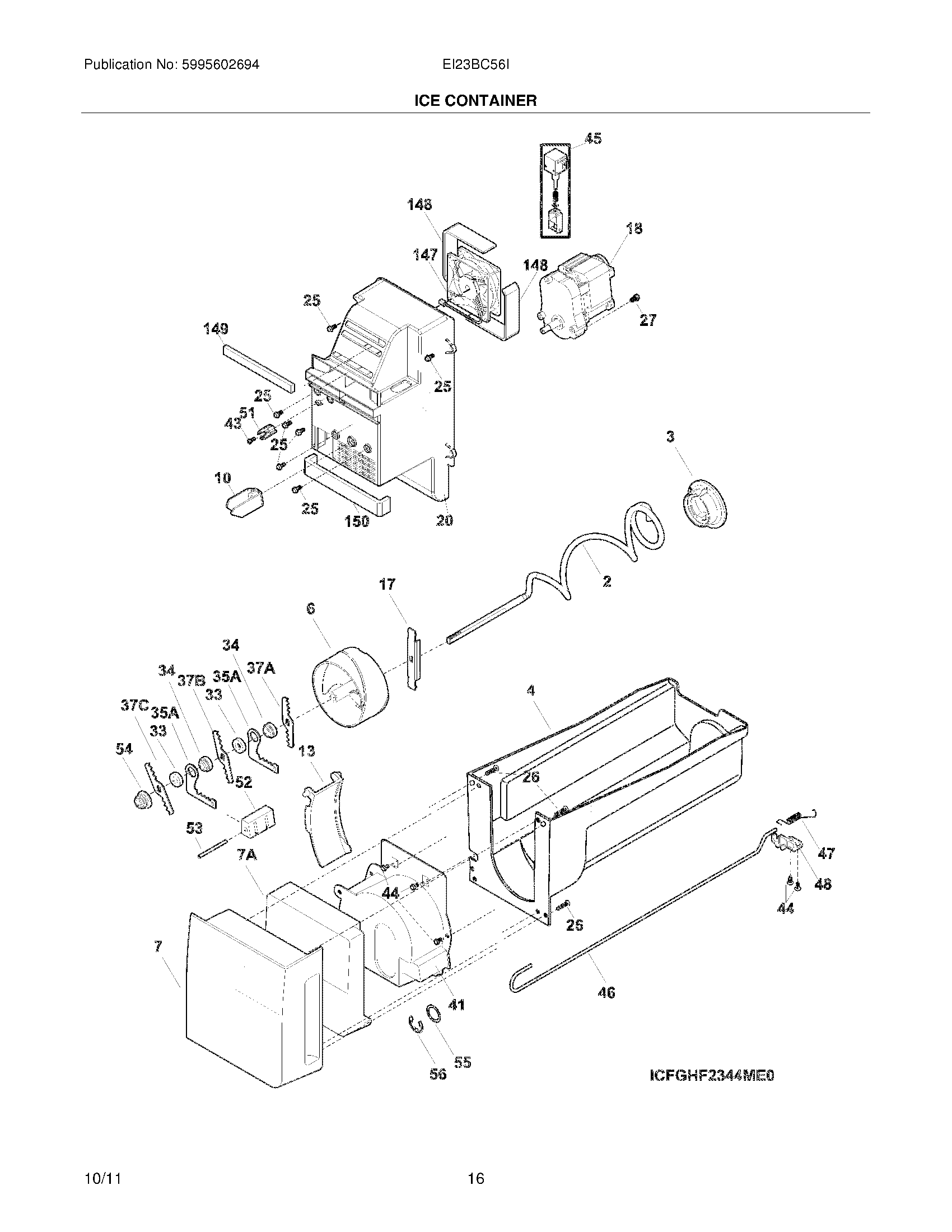

EI23BC56ISA 15 – ICE CONTAINER

Products

Position	Product
NI	242100107 Frigidaire Refrigerator Ice Container Assembly
NI	242095804 Frigidaire Refrigerator Wiring Harness
2	WCI 241952301
3	CAM-DRIVE
4	WCI 242100201
6	241829802 Frigidaire Drum Ice Dispenser
7	COVER-BUCKET FRONT, LCFFIM
7A	INSULATION, I/CONTAINER FRT
10	241829001 Frigidaire Refrigerator Bar Drive
13	242106201 Frigidaire Refrigerator Gate
17	DRIVE BLADE
18	241816602 Frigidaire Refrigerator Motor-AUGER
20	242095702 Frigidaire Refrigerator Air Handler Housing
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26	242015001 Frigidaire Refrigerator Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
35A	FIXED BLADE, ROUND
37C	BLADE, CRUSHER #3
37B	BLADE, CRUSHER #2
37A	BLADE, CRUSHER #1
41	242093301 Frigidaire Refrigerator Crusher Housing
43	241641502 Frigidaire Refrigerator Screw
44	5304453707 Frigidaire Oven Screw
45	241675704 Frigidaire Refrigerator Solenoid Assembly
46	WCI 242123702
47	WCI 241839002
48	241830101 Frigidaire Refrigerator Bracket-Control
51	242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
52	SPACER-FIXED BLADES
53	241869601 Frigidaire Refrigerator Pin
54	241829601 Frigidaire Refrigerator Nut-Auger
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
147	5304493604 Frigidaire Refrigerator Gasket & Fan Kit
148	242095406 Frigidaire Refrigerator Gasket
149	5303918784 Frigidaire Refrigerator Air Handler Housing
