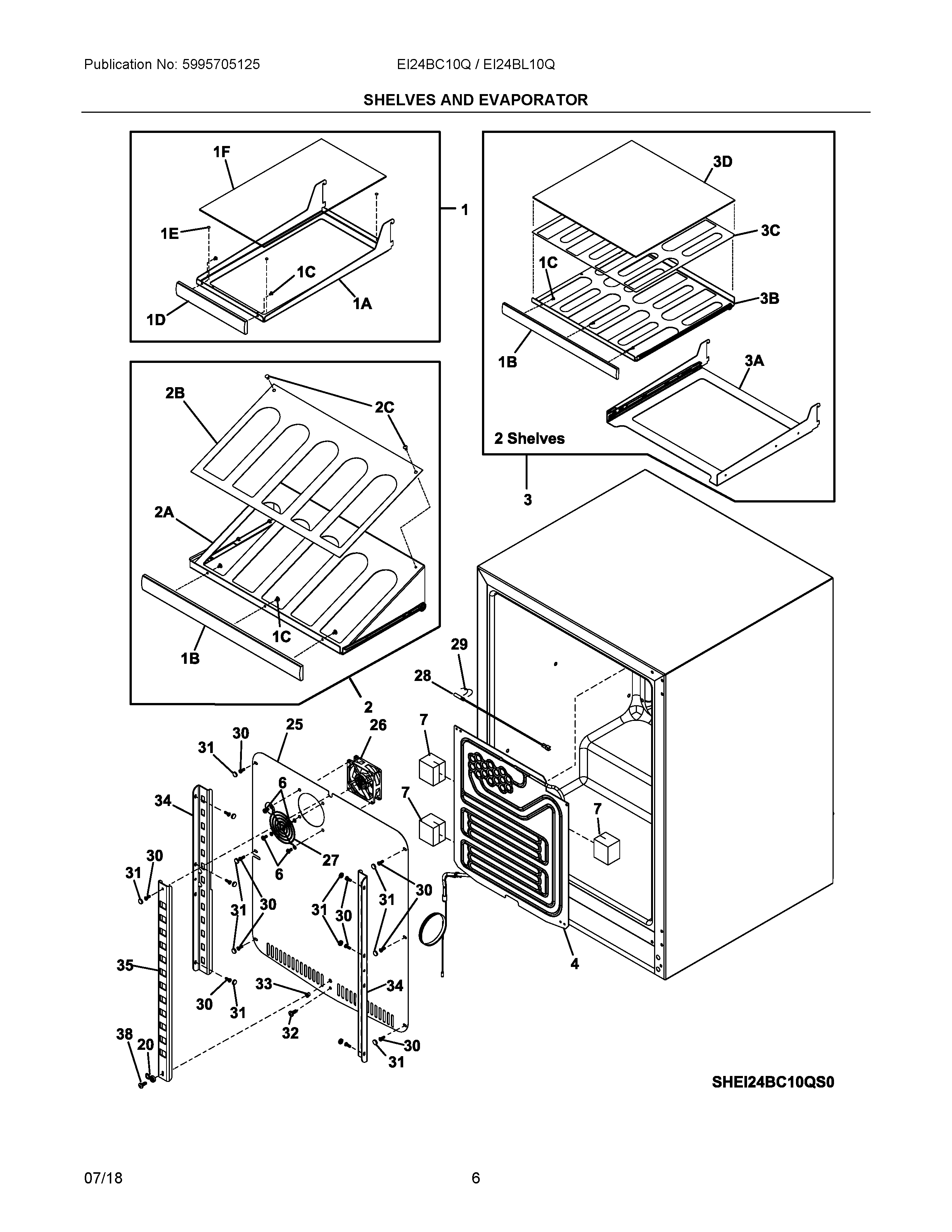

EI24BC10QS1 04 – SHELVES AND EVAPORATOR

Products

Position	Product
1E	BUMPER, SHELF
1F	GLASS, HALF SHELF
1	SHELF ASSEMBLY, HALF, COMPLETE, W/GLASS
1D	TRIM, HALF SHELF
1B	TRIM, SHELF
1A	SHELF FRAME, HALF
1C	218359202 Frigidaire Refrigerator Screw
2B	MAT, DISPLAY SHELF, BLACK
2	SHELF ASSEMBLY, DISPLAY, COMPLETE, W/MAT
2A	FRAME ASSEMBLY, DISPLAY SHELF
2C	PLUG, BUTTON
3C	MAT, FULL SHELF, BLACK
3	SHELF ASSEMBLY, FULL, COMPLETE, W/GLASS & MAT
3A	SHELF FRAME, FULL
3B	SHELF ASSEMBLY, FULL
3D	GLASS, FULL SHELF
4	5304496756 Frigidaire Refrigerator Evaporator Assembly
6	SCREW, PH PAN HEAD, #10-24 X 3/8"
7	SUPPORT, EVAPORATOR, FOAM BLOCK
20	COVER, SCREW, PLASTIC, BLACK
25	COVER, EVAPORATOR COIL, BLACK
26	MOTOR, EVAPORATOR FAN
27	GUARD, FAN
28	5304496746 Frigidaire Refrigerator Sensor
29	CABLE TIE
30	SCREW, KAPPET, #8-18 X 1"
31	CAP, SNAP, BLACK
32	241690501 Frigidaire Refrigerator Screw
33	RIVNUT, HEX, #10-32
34	LADDER, SHELF, BLACK, SIDES
35	LADDER, SHELF, BLACK, CENTER
38	SCREW, MACHINE, #10-32 X 3/4"
