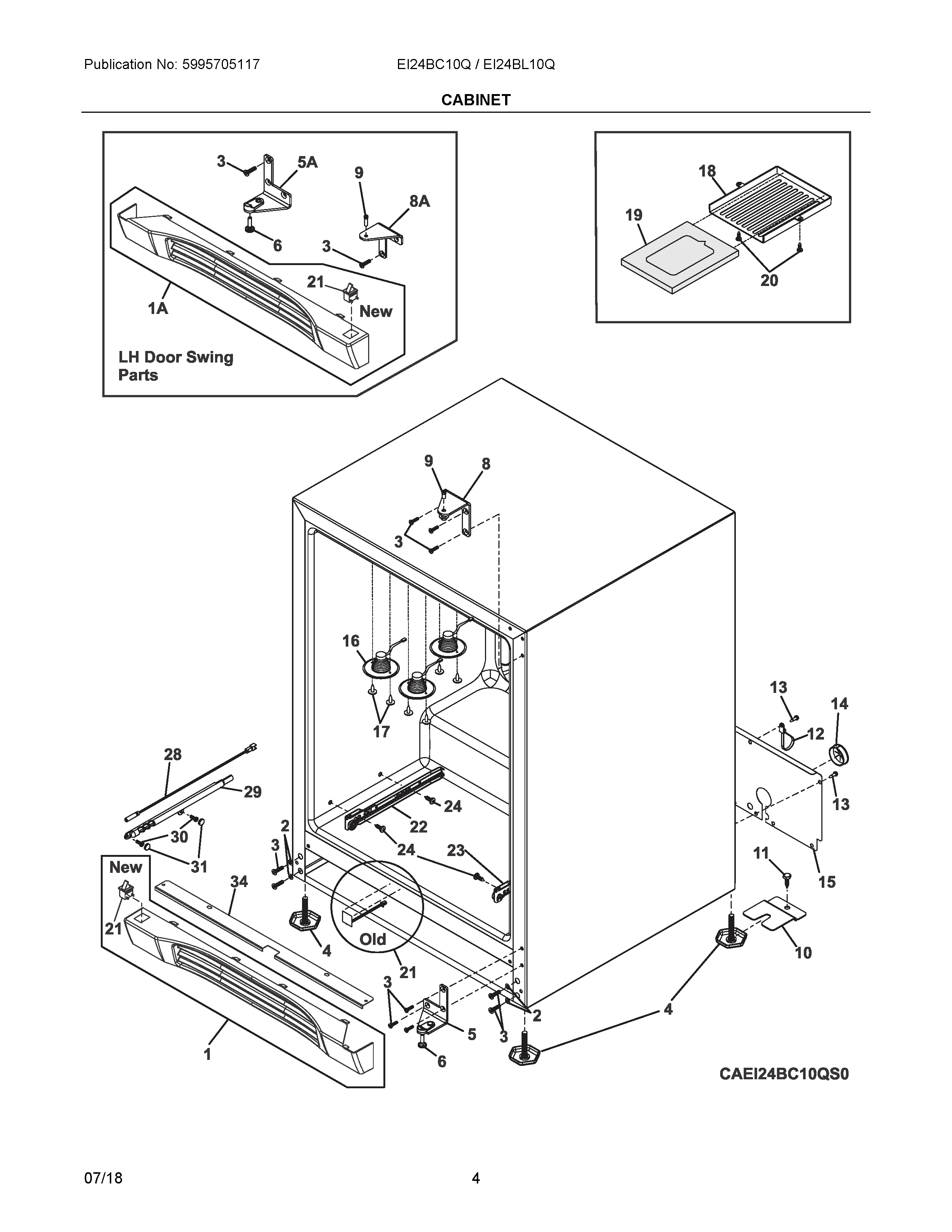

EI24BL10QS0 03 – CABINET

Products

Position	Product
1A	WCI 5304518413
2	WASHER, FLAT, #10 COUNTERSUNK
3	SCREW, PH CNTRSNK HD, #10-32 X 3/4"
4	LEG, LEVELER
5A	HINGE, DOOR BOTTOM, LH SWING
6	PIN, BOTTOM HINGE
8A	HINGE, DOOR TOP, LH SWING
9	5304496824 Frigidaire Refrigerator Pin
10	BRACKET, ANTI-TIP
11	SCREW, LAG, HEX HEAD, 5/16-18 X 1"
12	CABLE TIE, MOUNT, (PACK OF 10)
13	SCREW, HEX WASHER HEAD, #10 X 1/2"
14	GROMMET, HEYCO
15	COVER, ACCESS
16	5304520842 Frigidaire Refrigerator Light Assembly
17	SCREW, PH FLAT HEAD, #4 X 1/2"
18	241904001 Frigidaire HOUSING
19	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
20	WCI 5304496741
21	SENSOR, DOOR, OLD PART
21A	5304507946 Frigidaire Refrigerator Switch
22	SLIDE, OUTER, 250MM, LH
23	SLIDE, OUTER, 250MM, RH
24	241953905 Frigidaire Screw
28	5304496830 Frigidaire Refrigerator Sensor
29	COVER, SENSOR, BLACK
30	SCREW, KAPPET, #8-18 X 1"
31	CAP, SNAP, BLACK
34	BRACKET, GRILLE, BLACK
