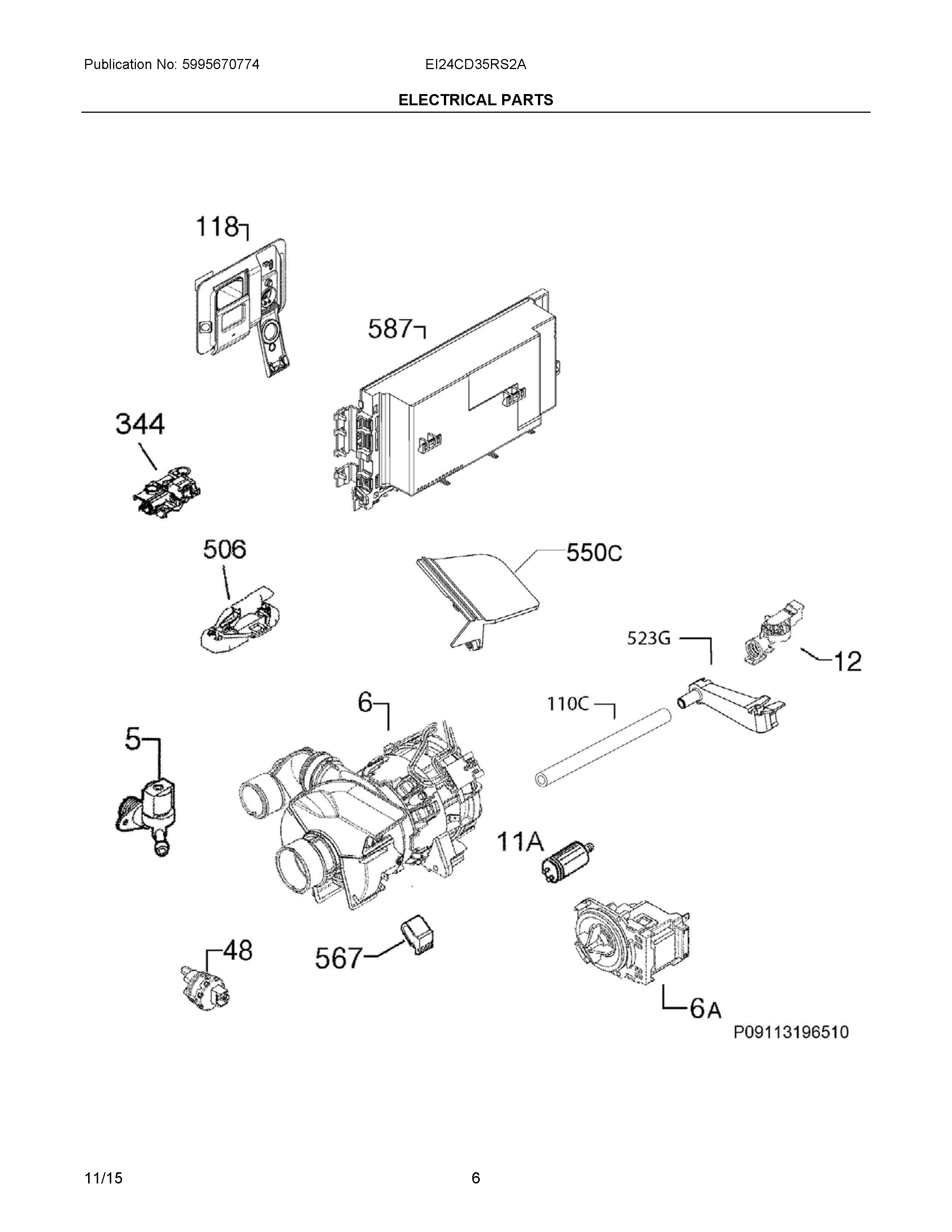

EI24CD35RS2A 04 – ELECTRICAL PARTS

Products

Position	Product
NI	WCI 808534114
NI	WCI 808007201
NI	807556302 Frigidaire Dishwasher Harness
NI	117186404 Frigidaire Dishwasher Cover
NI	405526082 Frigidaire Dishwasher Screw
5	807445903 Frigidaire Dishwasher Valve
6A	A00044305 Frigidaire Dishwasher Drain Pump
6	5304514365 Frigidaire Dishwasher Water Pump
11A	A00194401 Frigidaire Dishwasher Capacitor
12	5304504077 Frigidaire Dishwasher Pressure Sensor
48	A00040106 Frigidaire Dishwasher Sensor
110C	117435611 Frigidaire Dishwasher Hose
118	A00130341 Frigidaire Dishwasher Dispenser Assembly
344	111315040 Frigidaire Dishwasher Door Lock
506	A00056506 Frigidaire Switch Assembly
523G	WCI A02690801
550C	808089001 Frigidaire Dishwasher Cover
567	117193401 Frigidaire Dishwasher Buffer
587	WCI 117492680
