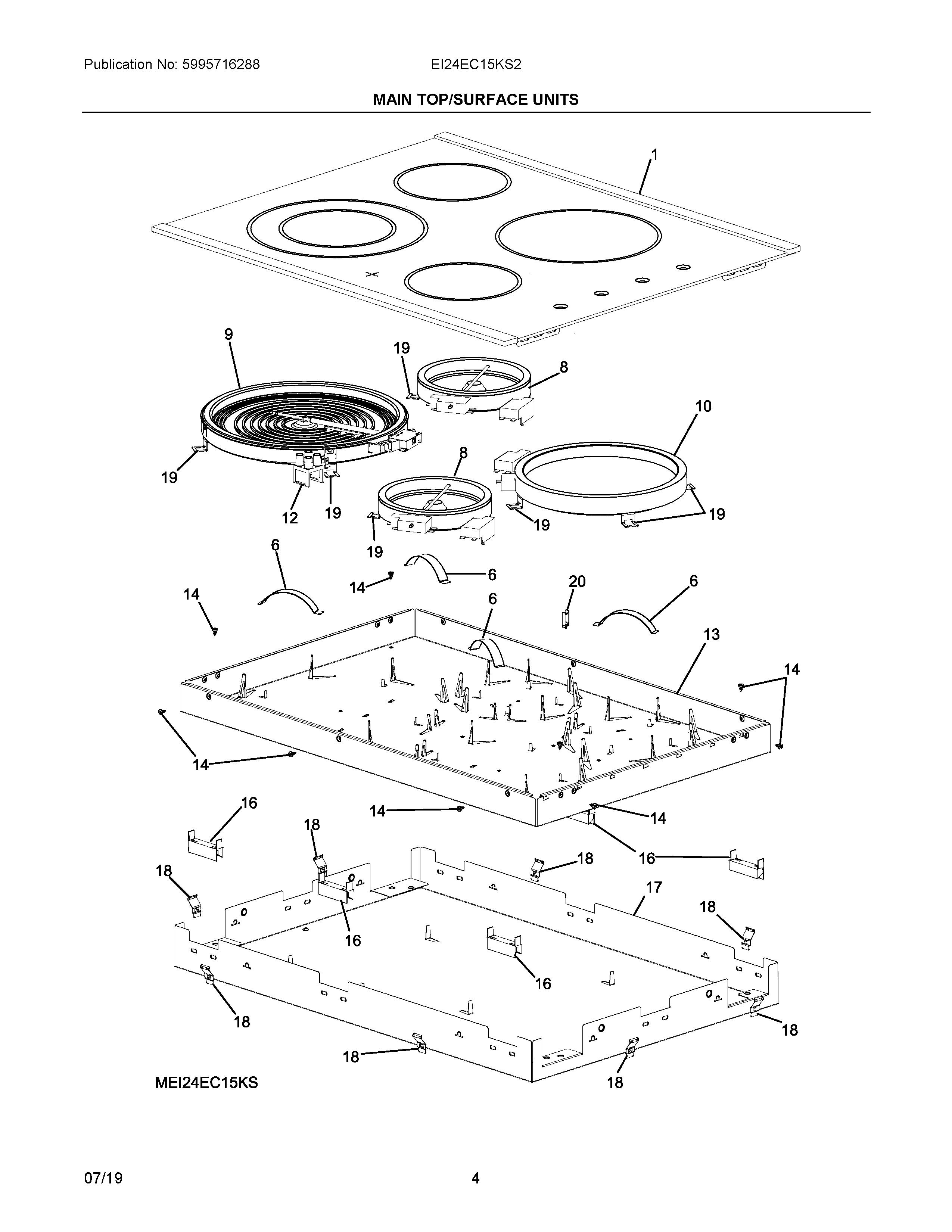

EI24EC15KS2 03 – MAIN TOP/SURFACE UNITSadmin2025-04-26T08:52:00+00:00EI24EC15KS2 03 – MAIN TOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NIA | 5308014215 Frigidaire Oven Screw |
| NI | HARNESS, WIRING, MAIN |
| NIC | 387627700 Frigidaire Oven Bracket |
| NIB | SCREW, (4) |
| NIA | 305309606 Frigidaire Oven Screw |
| NI | 5305511218 Frigidaire Ceramabryte C12 18O |
| NI | 305452800 Frigidaire Screw |
| 1 | 305521965 Frigidaire MAINTOP ASSEMBLY |
| 6 | 387372900 Frigidaire SPRING |
| 8 | A02843501 Frigidaire Element |
| 9 | ELEMENT, SURFACE, 5"/8", 750W/2200W |
| 10 | ELEMENT, SURFACE, 7", 1800W |
| 12 | 387812004 Frigidaire Light Assembly |
| 13 | BOX, INNER |
| 14 | 330447900 Frigidaire Oven Screw |
| 16 | 387627600 Frigidaire Spacer |
| 17 | WCI 305554500 |
| 18 | 387174602 Frigidaire Oven Bracket |
| 19 | 387683300 Frigidaire Bracket |
| 20 | WCI 387727700 |
