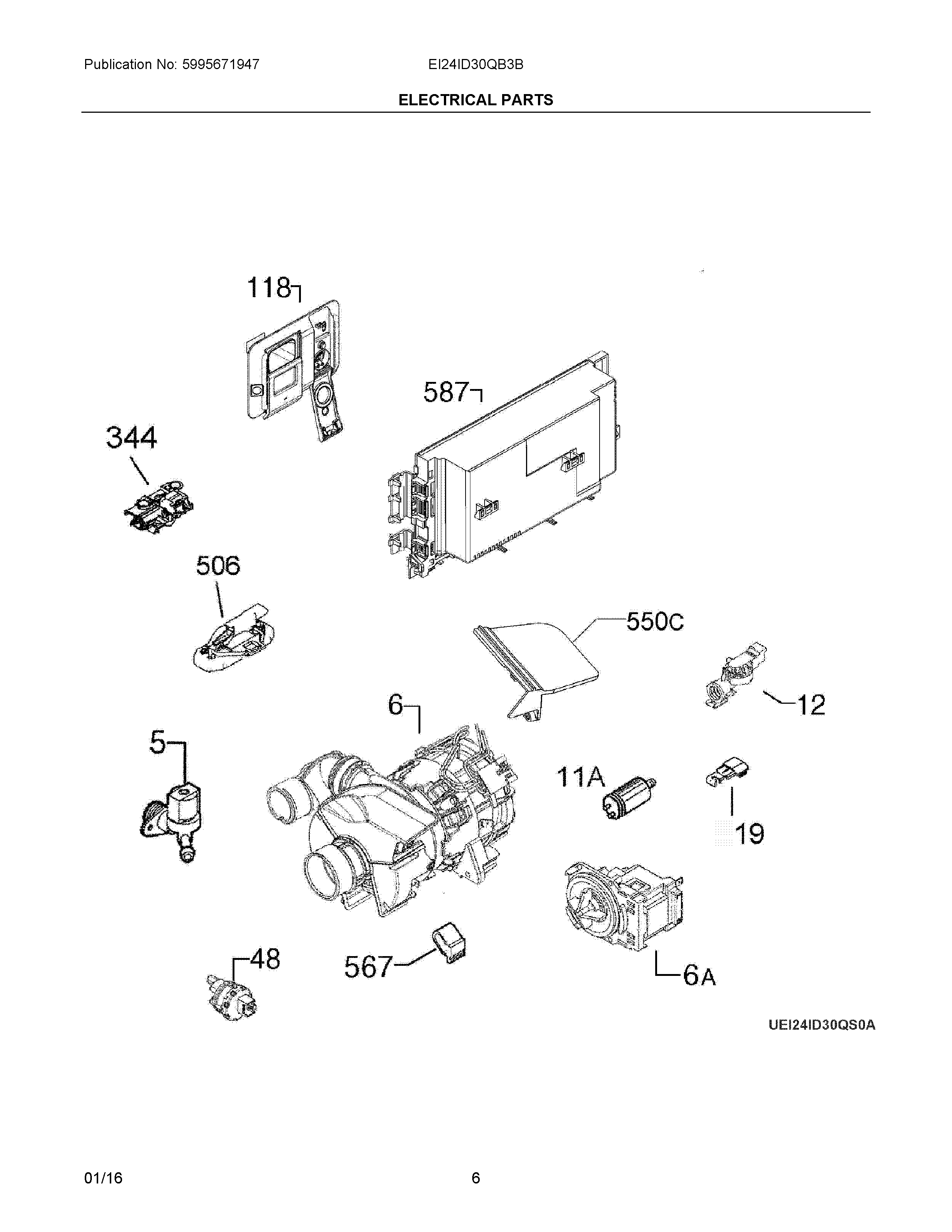

EI24ID30QB3B 04 – ELECTRICAL PARTS

Products

Position	Product
NI	WCI 808534115
NI	117186404 Frigidaire Dishwasher Cover
NI	405526082 Frigidaire Dishwasher Screw
NI	A02719801 Frigidaire Dishwasher Harness
NI	A00233431 Frigidaire Dishwasher Harness
NI	807556302 Frigidaire Dishwasher Harness
5	807445903 Frigidaire Dishwasher Valve
6A	A00044305 Frigidaire Dishwasher Drain Pump
6	5304514365 Frigidaire Dishwasher Water Pump
11A	A00194401 Frigidaire Dishwasher Capacitor
12	5304504077 Frigidaire Dishwasher Pressure Sensor
19	LAMP, DOOR INDICATOR
48	A00040106 Frigidaire Dishwasher Sensor
118	A00130341 Frigidaire Dishwasher Dispenser Assembly
344	111315040 Frigidaire Dishwasher Door Lock
506	A00056506 Frigidaire Switch Assembly
550C	808089001 Frigidaire Dishwasher Cover
567	117193401 Frigidaire Dishwasher Buffer
587	WCI 117492630
