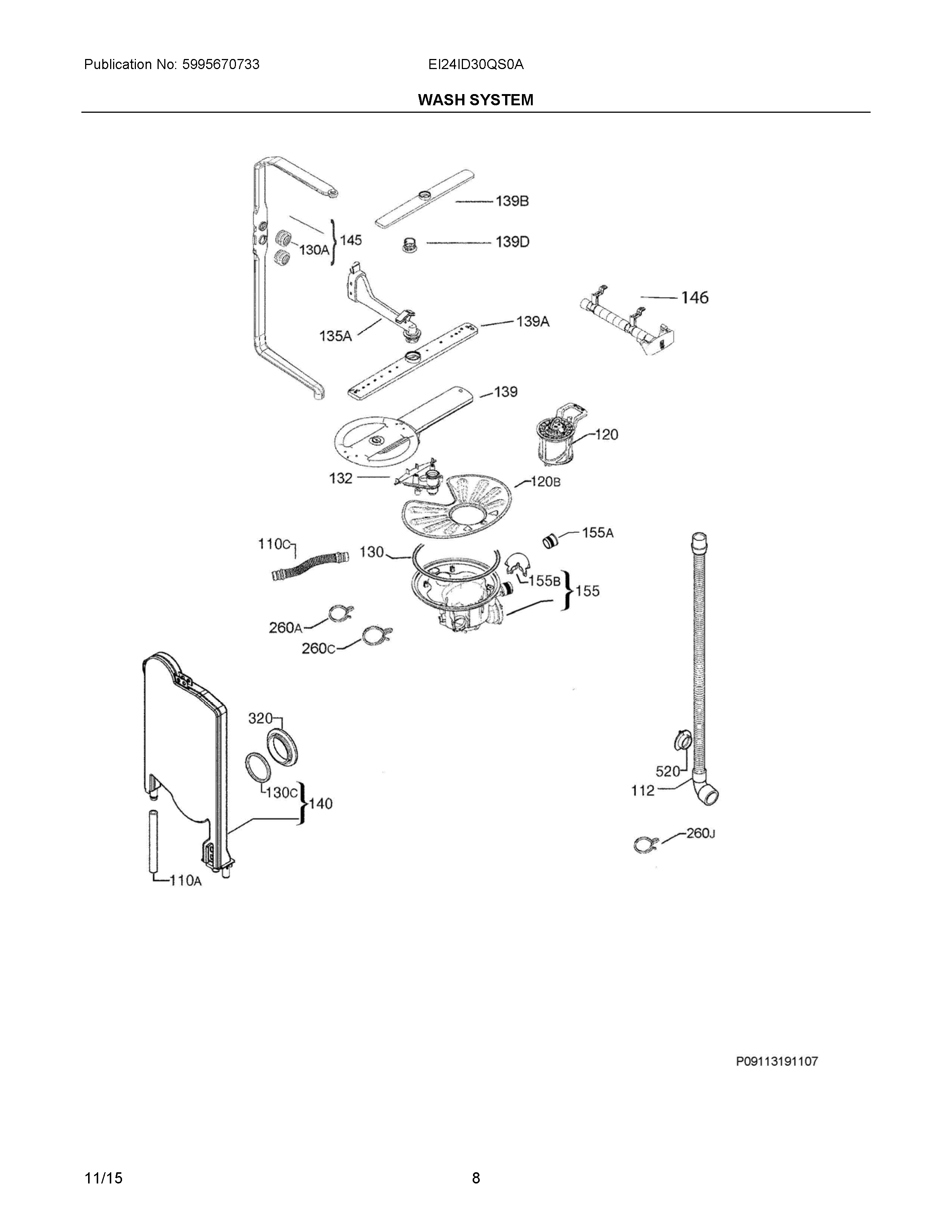

EI24ID30QS0A 05 – WASH SYSTEM

Products

Position	Product
NI	SCREW, SUMP, 4 X 15, (4), & SPRAY ARM
110A	807526501 Frigidaire Dishwasher Tubing Assembly
110C	A00005903 Frigidaire Dishwasher Hose
112	807032601 Frigidaire Dishwasher Hose
120B	WCI 808429701
120	A00201409 Frigidaire Dishwasher Drain Filter
130A	A00045701 Frigidaire Dishwasher Seal
130C	WCI 5065923100
130	111918600 Frigidaire Dishwasher O-Ring
132	WCI 111915811
135A	A00060302 Frigidaire Dishwasher Duct
139A	808321102 Frigidaire Dishwasher Spray Arm
139B	807382106 Frigidaire Dishwasher Upper Spray Arm
139D	807035801 Frigidaire Wash Arm Bearing
139	111920868 Frigidaire Lower Wash Arm
140	WCI 117048173
145	A00023201 Frigidaire Dishwasher Spray Arm Manifold
146	WCI 807036104
155B	111917701 Frigidaire Dishwasher Screen
155	5304520660 Frigidaire Dishwasher Sump Assembly
155A	A00053601 Frigidaire Dishwasher Flapper
260C	807868903 Frigidaire Dishwasher Clamp
260A	807868902 Frigidaire Dishwasher Clamp
260J	807868901 Frigidaire Dishwasher Clamp
320	WCI 152627210
520	807201901 Frigidaire Dishwasher Flange
