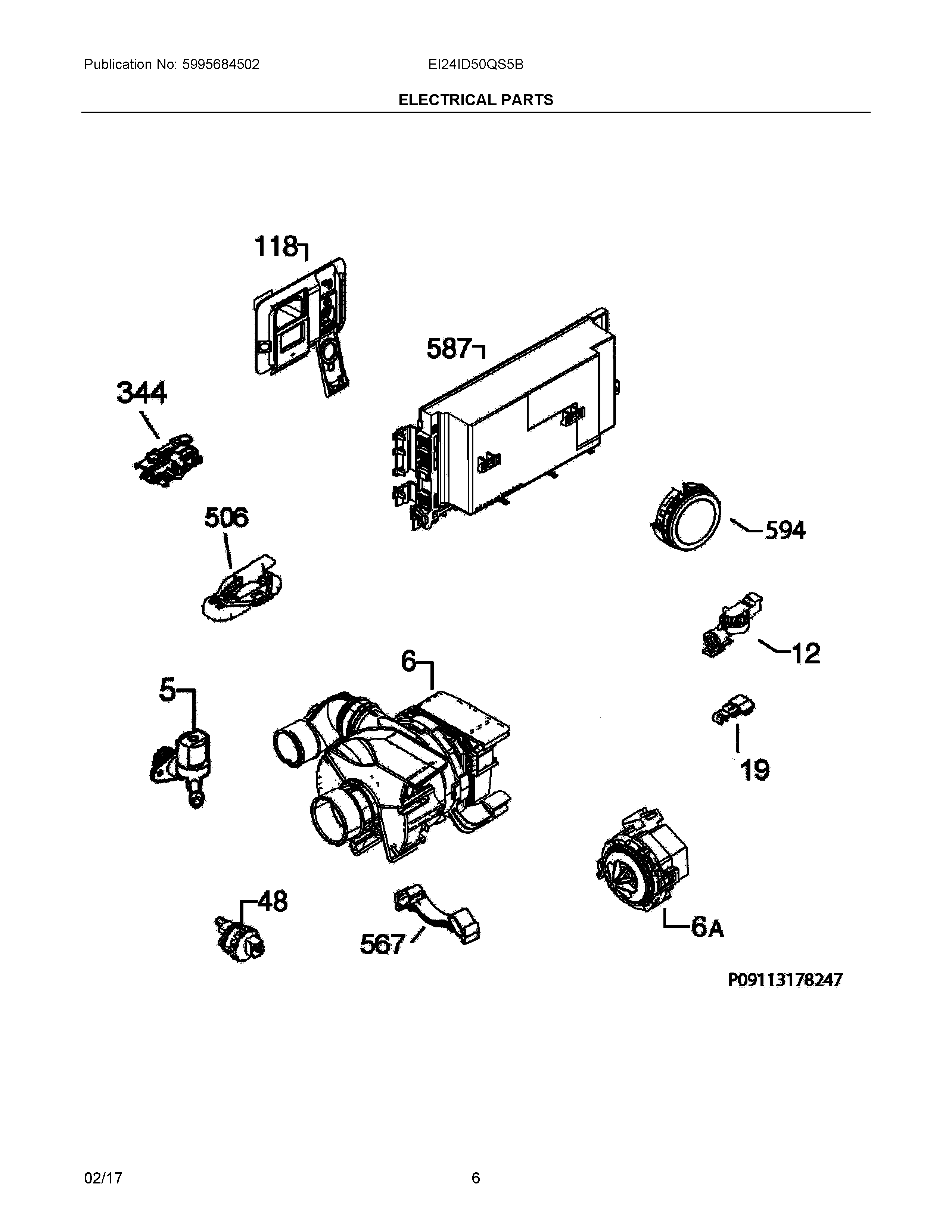

EI24ID50QS5B 04 – ELECTRICAL PARTS

Products

Position	Product
NI	HARNESS, WIRING, PCB, PUMP
NI	117186404 Frigidaire Dishwasher Cover
NI	405526082 Frigidaire Dishwasher Screw
NI	A02719801 Frigidaire Dishwasher Harness
NI	A00233431 Frigidaire Dishwasher Harness
NI	807555203 Frigidaire Dishwasher Harness
5	807445903 Frigidaire Dishwasher Valve
6	A00223923 Frigidaire Dishwasher Pump Assembly
6A	A18005103 Frigidaire Dishwasher Drain Pump
12	A00055408 Frigidaire Dishwasher Switch
19	LAMP, DOOR INDICATOR
48	A00040106 Frigidaire Dishwasher Sensor
118	A00130341 Frigidaire Dishwasher Dispenser Assembly
344	111315040 Frigidaire Dishwasher Door Lock
506	A00056506 Frigidaire Switch Assembly
567	117302400 Frigidaire Dishwasher Support
587	117492651 Frigidaire Dishwasher Control Assembly
594	5304521592 Frigidaire Dishwasher Light Internal
