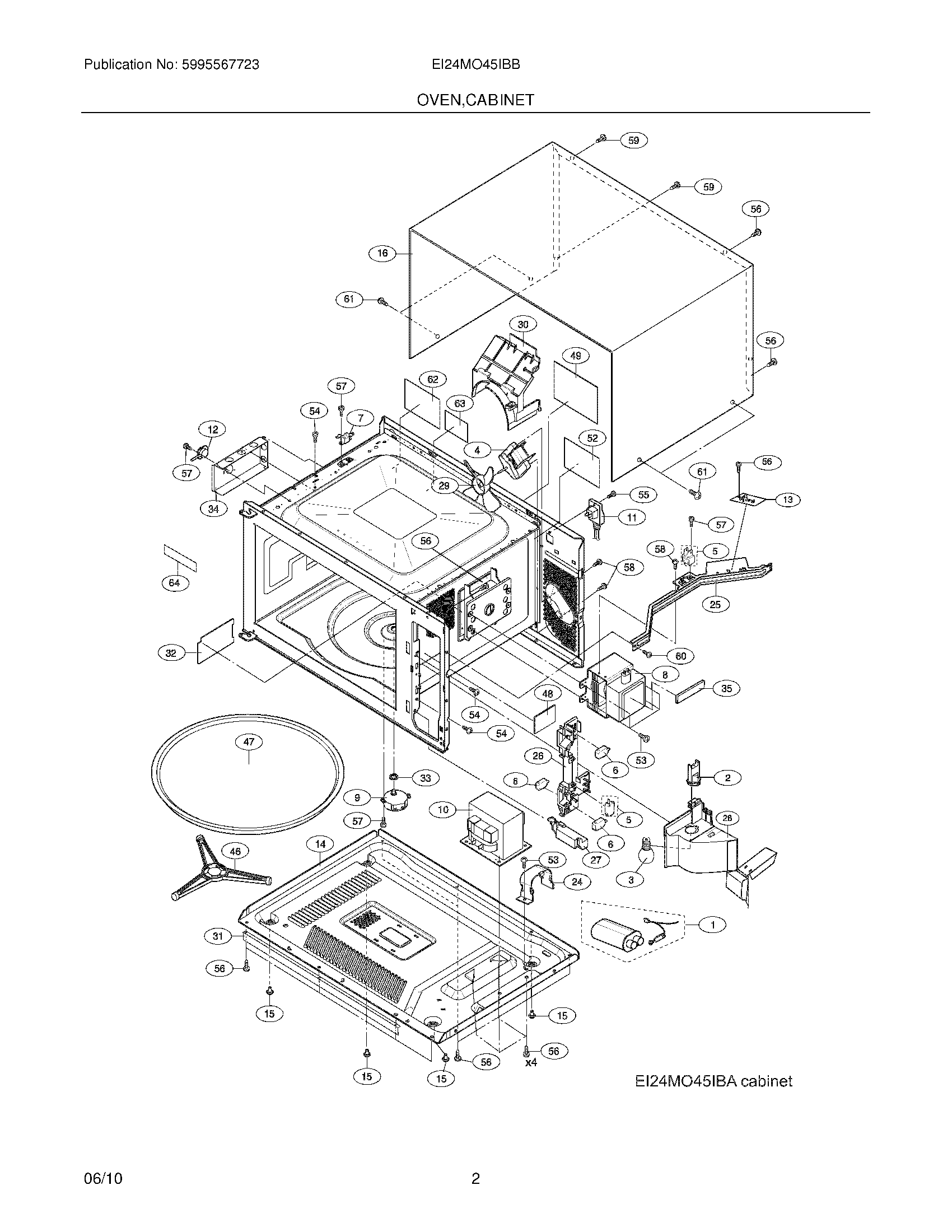

EI24MO45IBB 03 – OVEN,CABINETadmin2025-04-26T08:52:03+00:00EI24MO45IBB 03 – OVEN,CABINET
Products
| Position | Product |
|---|
| 1 | 5304487566 Frigidaire Microwave Capacitor |
| 2 | 5303319561 Frigidaire Microwave Lamp Socket |
| 3 | 5304464198 Frigidaire Microwave Lamp |
| 4 | 5304493152 Frigidaire Microwave Motor |
| 5 | 5304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly |
| 6 | 5304493153 Frigidaire Microwave Door Switch |
| 7 | 5304440780 Frigidaire Microwave Fuse |
| 8 | 5304521745 Frigidaire Microwave Magnetron |
| 9 | 5304440021 Frigidaire Microwave Oven Turntable Drive Motor |
| 10 | 5304473321 Frigidaire Microwave Transformer |
| 11 | 5304478937 Frigidaire Microwave Power Cord |
| 12 | 5304440785 Frigidaire Microwave Sensor |
| 13 | 5304493151 Frigidaire Microwave Filter |
| 14 | BASE, UNIT CHASSIS |
| 15 | FOOT, CABINET SUPPORT |
| 16 | CABINET, OUTER CASING, BLACK |
| 24 | 5304478941 Frigidaire Retainer |
| 25 | BRACKET, CHASSIS SUPPORT |
| 26 | 5304503439 Frigidaire Microwave Latch Hook |
| 27 | 5304485407 Frigidaire Microwave Door Release Assembly |
| 28 | 5304464197 Frigidaire Microwave Duct |
| 29 | WCI 5304467720 |
| 30 | WCI 5304478945 |
| 31 | FILLER STRIP, BASE PLATE, BOTTOM |
| 32 | 5304462314 Frigidaire Microwave Waveguide Cover |
| 33 | 5304467718 Frigidaire Microwave Bushing |
| 34 | DUCT, HUMIDITY SENSOR |
| 35 | CUSHION |
| 46 | 5304467717 Frigidaire Microwave Glass Tray Support |
| 47 | 5304529482 Frigidaire Glass Tray Assembly |
| 48 | 5304467771 Frigidaire Microwave Label |
| 49 | 5304467770 Frigidaire Microwave Label |
| 52 | LABEL, HWC CAUTION |
| 53 | WCI 5303319636 |
| 54 | 5303319641 Frigidaire Screw |
| 55 | 5304462315 Frigidaire Microwave Screw |
| 57 | 5304453725 Frigidaire Screw |
| 58 | 5304450253 Frigidaire Microwave Screw |
| 59 | 5304440873 Frigidaire Screw |
| 60 | 5304451553 Frigidaire Microwave Screw |
| 61 | WCI 5304452261 |
| 62 | LABEL, CAUTION, UL SCREW |
| 63 | WCI 5304451535 |
| 64 | LABEL, MENU |
