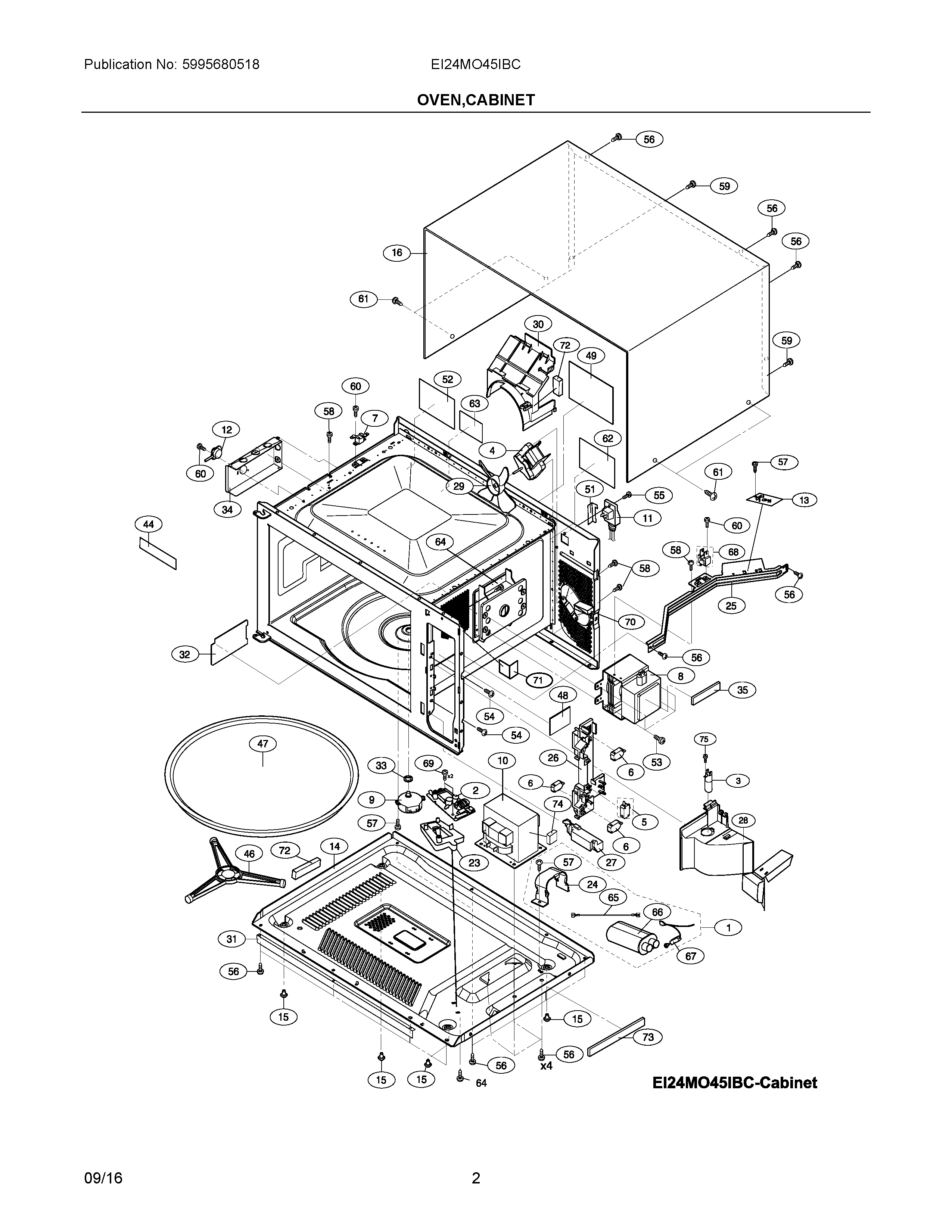

EI24MO45IBC 02 – OVEN, CABINETadmin2025-04-26T08:51:49+00:00EI24MO45IBC 02 – OVEN, CABINET
Products
| Position | Product |
|---|
| 1 | 5304478954 Frigidaire Microwave Capacitor |
| 2 | 5304507220 Frigidaire Microwave Power Unit |
| 3 | 5304464198 Frigidaire Microwave Lamp |
| 4 | 5304493152 Frigidaire Microwave Motor |
| 5 | 5304503483 Frigidaire Microwave Switch |
| 6 | 5304493153 Frigidaire Microwave Door Switch |
| 7 | 5304440780 Frigidaire Microwave Fuse |
| 8 | 5304521745 Frigidaire Microwave Magnetron |
| 9 | 5304440021 Frigidaire Microwave Oven Turntable Drive Motor |
| 10 | 5304473321 Frigidaire Microwave Transformer |
| 11 | 5304478937 Frigidaire Microwave Power Cord |
| 12 | 5304440785 Frigidaire Microwave Sensor |
| 13 | 5304507613 Frigidaire Microwave Filter |
| 14 | BASE, UNIT CHASSIS |
| 15 | FOOT, CABINET SUPPORT |
| 16 | CABINET, OUTER CASING, BLACK |
| 23 | 5304507222 Frigidaire Holder |
| 24 | 5304478941 Frigidaire Retainer |
| 25 | BRACKET, CHASSIS SUPPORT |
| 26 | 5304503439 Frigidaire Microwave Latch Hook |
| 27 | 5304485407 Frigidaire Microwave Door Release Assembly |
| 28 | 5304464197 Frigidaire Microwave Duct |
| 29 | 5304493155 Frigidaire Microwave Fan Blade |
| 30 | DUCT, COOLING FAN |
| 31 | FILLER STRIP, BASE PLATE, BOTTOM |
| 32 | 5304462314 Frigidaire Microwave Waveguide Cover |
| 33 | 5304467718 Frigidaire Microwave Bushing |
| 34 | DUCT, HUMIDITY SENSOR |
| 35 | 5304493207 Frigidaire Cushion |
| 44 | LABEL, MENU |
| 46 | 5304467717 Frigidaire Microwave Glass Tray Support |
| 47 | 5304529482 Frigidaire Glass Tray Assembly |
| 48 | LABEL, CAUTION-MONITOR |
| 49 | WCI 5304507618 |
| 51 | BRACKET, ANGLE, POWER CORD |
| 52 | LABEL, HWC CAUTION |
| 53 | 5304467780 Frigidaire Microwave Screw |
| 54 | 5303319641 Frigidaire Screw |
| 55 | 5304462315 Frigidaire Microwave Screw |
| 56 | 5304502863 Frigidaire Microwave Screw |
| 57 | 5304451550 Frigidaire Screw |
| 58 | 5304450253 Frigidaire Microwave Screw |
| 59 | 5304440873 Frigidaire Screw |
| 60 | WCI 5304467781 |
| 61 | 5304467777 Frigidaire Microwave Screw |
| 62 | WCI 5304507619 |
| 63 | WCI 5304451535 |
| 64 | 5304505546 Frigidaire Screw |
| 65 | 5304493157 Frigidaire Wire |
| 66 | 5304487566 Frigidaire Microwave Capacitor |
| 67 | 5304493150 Frigidaire Microwave Assembly Rectifier |
| 68 | 5304507620 Frigidaire Microwave Fuse |
| 69 | 5304456930 Frigidaire Microwave Screw |
| 70 | CUSHION, FAN MOTOR |
| 71 | CUSHION, CAVITY, CONTROL PANEL |
| 72 | CUSHION |
| 73 | CUSHION, BASE PLATE |
| 74 | CUSHION, TRANSFORMER PAD |
| 75 | SCREW, 4 MM X 10 MM, WHITE |
