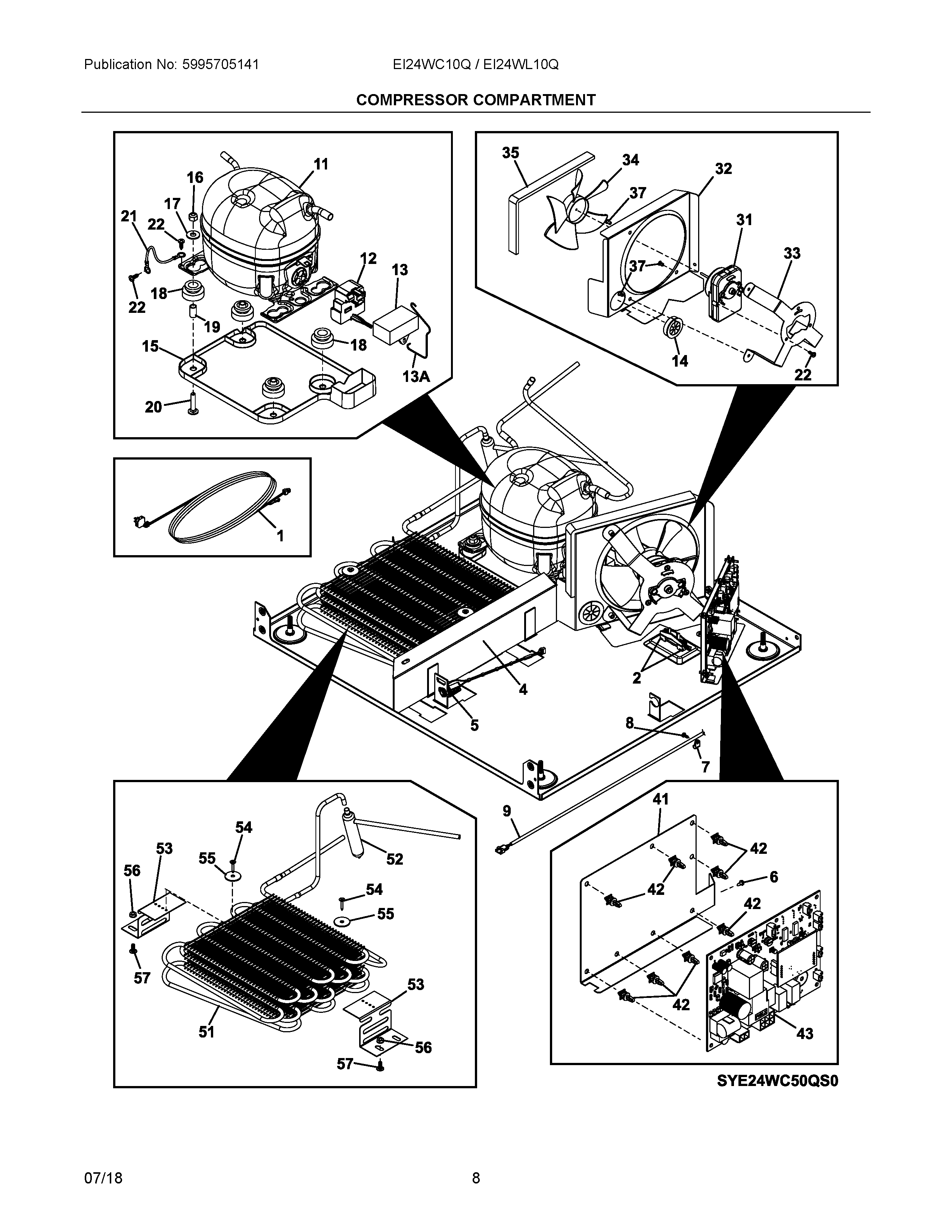

EI24WC10QS1 05 – COMPRESSOR COMPARTMENT

Products

Position	Product
1	CORD, POWER
2	CLAMP, POWER CORD, W/SCREWS
4	BAFFLE, AIR
5	PORT, DATA AQUISITION
6	SCREW, HEX WASHER HEAD, #10 X 1/2"
7	CLAMP, "P" STYLE
8	SCREW, PH PAN HEAD, #8-21 X 1/4"
9	5304496843 Frigidaire Harness
11	COMPRESSOR
12	5304496768 Frigidaire Refrigerator Electrical Package
13	CAPACITOR, RUN
13A	STRAP, BAIL
14	GROMMET, HEYCO
15	DRAIN PAN, DEFROST
16	NUT, LOCK, 1/4-20 HEX
17	WASHER, FLAT
18	GROMMET
19	SLEEVE
20	BOLT, CARRIAGE, 1/4-20 X 1-1/4"
21	WIRE, GROUND
22	5304480396 Frigidaire Screw
31	MOTOR, FAN
32	SHROUND, FAN MOTOR
33	BRACKET, FAN MOTOR MTG.
34	BLADE, FAN MOTOR
35	PAD, FOAM
37	RIVET, POP, 3/16", STEEL
41	BRACKET, PC BOARD MTG.
42	STANDOFF, CONTROL BOARD
43	5304498728 Frigidaire Refrigerator Control Board
51	CONDENSER, TUBE AND WIRE
52	DRIER, FILTER
53	BRACKET, CONDENSER MTG.
54	SCREW, TP AB FLAT HEAD, #8 X 3/4"
55	WASHER, FLAT, 7/32"ID X 1"OD
56	NUT, HEX, #10-24
57	BOLT, CARRIAGE, #10-24 X 1/2"
