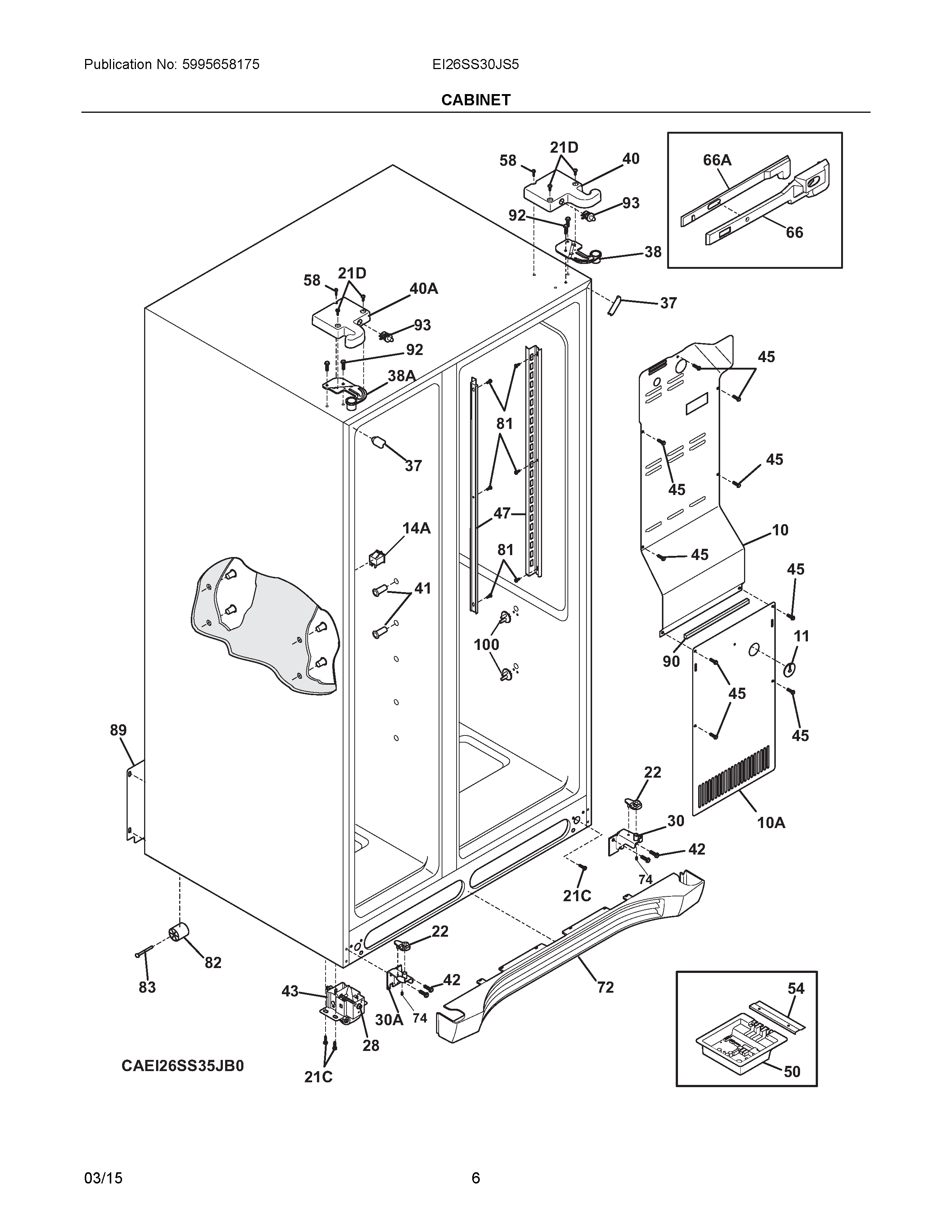

EI26SS30JS5 04 – CABINET

Products

Position	Product
NIA	241835801 Frigidaire Refrigerator Wiring Harness
NI	241852501 Frigidaire Refrigerator Clip
NIAA	241891901 Frigidaire Refrigerator Wiring Harness
NIB	241781601 Frigidaire Refrigerator Air Return Seal
NI	240494001 Frigidaire Refrigerator Plug Button
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA	241512807 Frigidaire Refrigerator Seal
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NI	241868101 Frigidaire Air Guide
10	WCI 240435914
10A	COVER-EVAP COIL, LOWER
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
21D	241548003 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30A	241918002 Frigidaire Refrigerator Lower Hinge
30	241918001 Frigidaire Lower Door Hinge
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40	241946709 Frigidaire Refrigerator Upper Hinge Cover
40A	241946710 Frigidaire Refrigerator Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513001 Frigidaire Refrigerator Shelf Mounting Channel
50	5304499077 Frigidaire Refrigerator Main Power Board
54	241532401 Frigidaire Refrigerator Channel
58	218781101 Frigidaire Handle Screw
66A	241756901 Frigidaire Refrigerator Housing-Damper
66	241756801 Frigidaire Refrigerator Damper-Meat Keeper
72	WCI 241758708
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	COVER-ACCESS, W/LABEL
89A	WCI 241733905
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911705 Frigidaire Refrigerator Light Switch
100	CRISPER COVER SUPPORT
