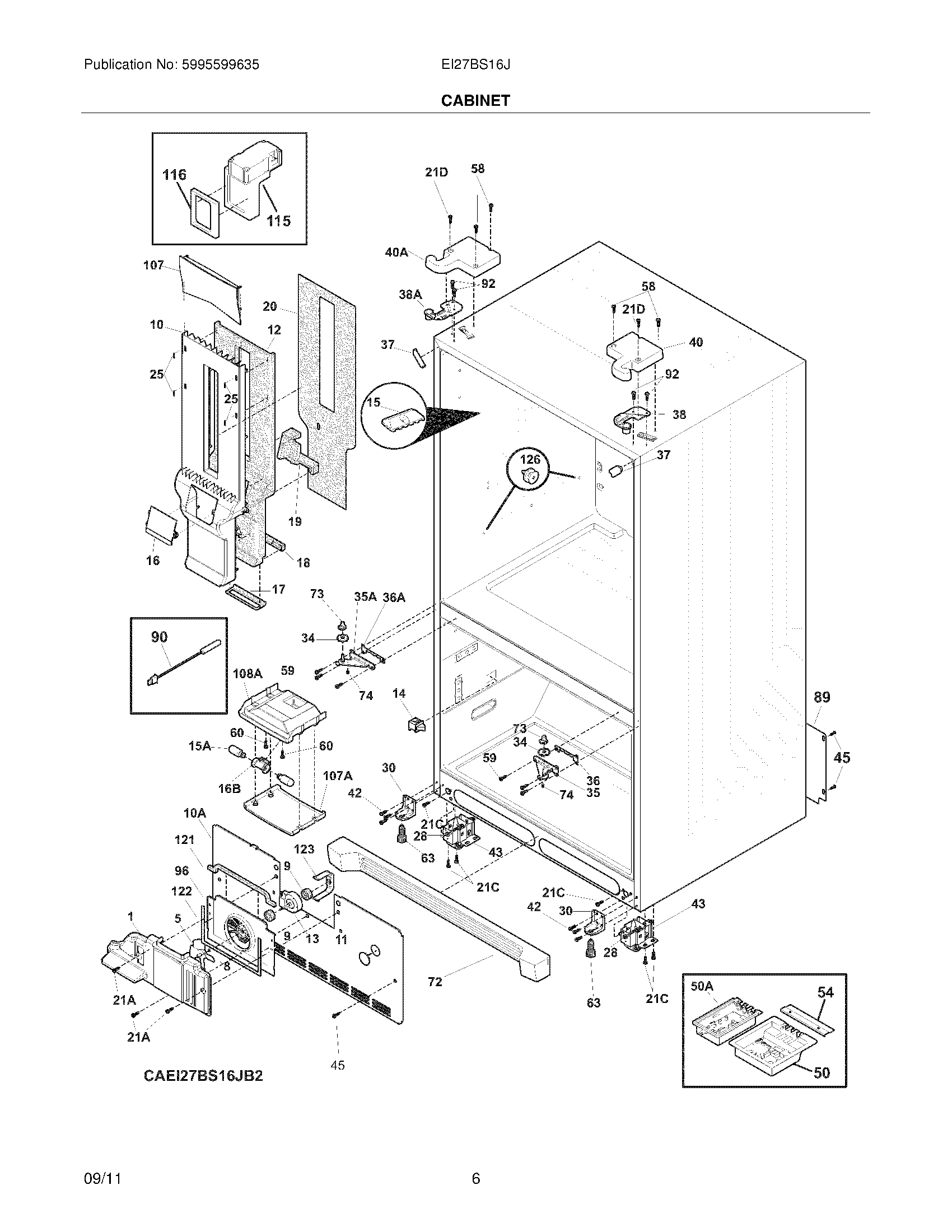

EI27BS16JB3 07 – CABINET

Products

Position	Product
NI	242045503 Frigidaire Refrigerator Wiring Harness
NI	240494001 Frigidaire Refrigerator Plug Button
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	WCI 241953904
NI	241969001 Frigidaire Refrigerator Cap
NI	242104901 Frigidaire Refrigerator Wiring Harness
NI	WCI 241859801
NI	WCI 242025203
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	WCI 5303918416
1	WCI 242099401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10	WCI 242058504
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10A	WCI 242084101
10A	241860110 Frigidaire Refrigerator Gasket-Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15A	5304517886 Frigidaire Refrigerator Light
15	WCI 241891104
16	WCI 241860502
16B	241510802 Frigidaire Refrigerator Wiring Harness
16B	241622802 Frigidaire Refrigerator Socket-Light
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922902
21D	134154100 Frigidaire Screw 10-32 x 0.375 Co
21C	218252201 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36	241868201 Frigidaire Refrigerator Spacer
36A	241868202 Frigidaire Refrigerator Spacer
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40	242099801 Frigidaire COVER-UPPER HINGE
40A	242099804 Frigidaire Refrigerator Upper Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	WCI 241996320
50A	241852501 Frigidaire Refrigerator Clip
50A	WCI 241891604
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	218362501 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	242054804 Frigidaire Refrigerator Kickplate Grille
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	WCI 242026701
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241971601 Frigidaire Refrigerator Light Shield
107	241963102 Frigidaire Refrigerator Duct-Air
108	241971801 Frigidaire Refrigerator Wiring Cover
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
121	241860112 Frigidaire Refrigerator Evaporator Gasket
122	241860117 Frigidaire Gasket
122	241860111 Frigidaire Refrigerator Evaporator Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
126	5304515677 Frigidaire Package of 4 Screws
