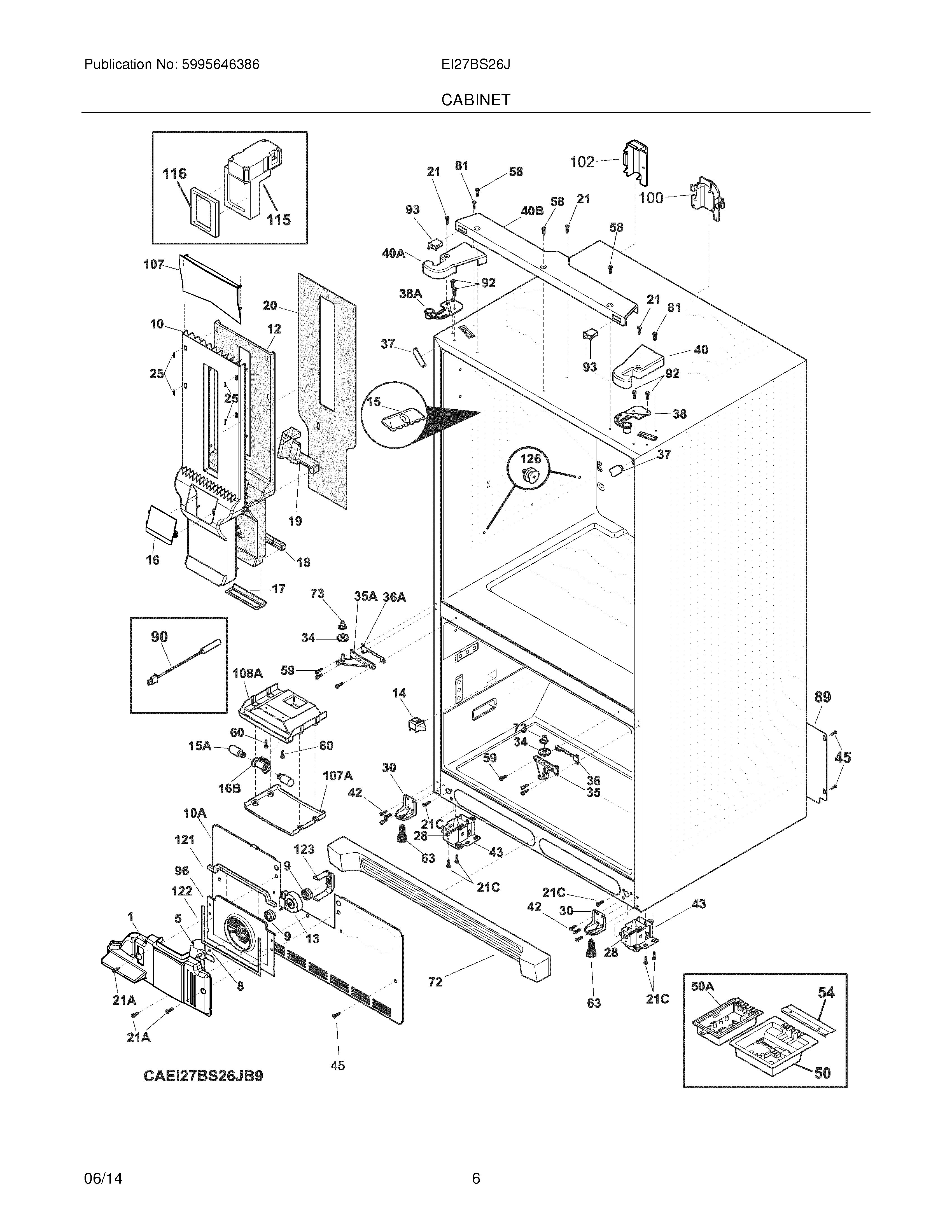

EI27BS26JSD 07 – CABINET

EI27BS26JSD 07 – CABINET

Written by

in

EI27BS26JSD 07 – CABINET

Products

Position	Product
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	5304521649 Frigidaire Refrigerator Wiring Harness
NI	WCI 242118001
NI	242119001 Frigidaire Refrigerator Wiring Harness
NI	241810104 Frigidaire Refrigerator Seal
NI	241860112 Frigidaire Refrigerator Evaporator Gasket
NI	241969001 Frigidaire Refrigerator Cap
NI	218515401 Frigidaire Refrigerator Clip
NI	240494001 Frigidaire Refrigerator Plug Button
NI	WCI 241953904
NI	241953902 Frigidaire Refrigerator Screw
NI	241860111 Frigidaire Refrigerator Evaporator Gasket
NI	242045503 Frigidaire Refrigerator Wiring Harness
NI	WCI 241859801
NI	241842301 Frigidaire Refrigerator Thermistor Cap
1	WCI 242099401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10	WCI 242058504
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10A	WCI 242084102
10A	241860110 Frigidaire Refrigerator Gasket-Coil Cover
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	242060202 Frigidaire Refrigerator Switch-Light/Lamp
15	WCI 241891104
15A	5304517886 Frigidaire Refrigerator Light
16	WCI 242164401
16B	241622802 Frigidaire Refrigerator Socket-Light
16B	241510802 Frigidaire Refrigerator Wiring Harness
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922902
21A	5304453707 Frigidaire Oven Screw
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40	5304504483 Frigidaire Refrigerator Right Hand Upper Gray Hinge Cover
40B	241862405 Frigidaire Refrigerator Upper Hinge Cover
40A	5304504482 Frigidaire Refrigerator Left Hand Upper Hinge Cover Gray
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50A	WCI 241891607
50	WCI 242115230
50A	241852501 Frigidaire Refrigerator Clip
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	218362501 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	242054804 Frigidaire Refrigerator Kickplate Grille
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
93	241835505 Frigidaire Refrigerator Light Switch
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
100	242157601 Frigidaire Refrigerator Cover
102	242157501 Frigidaire Refrigerator Cover
107	241963102 Frigidaire Refrigerator Duct-Air
107	241971601 Frigidaire Refrigerator Light Shield
108	241971801 Frigidaire Refrigerator Wiring Cover
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
126	5304515677 Frigidaire Package of 4 Screws
