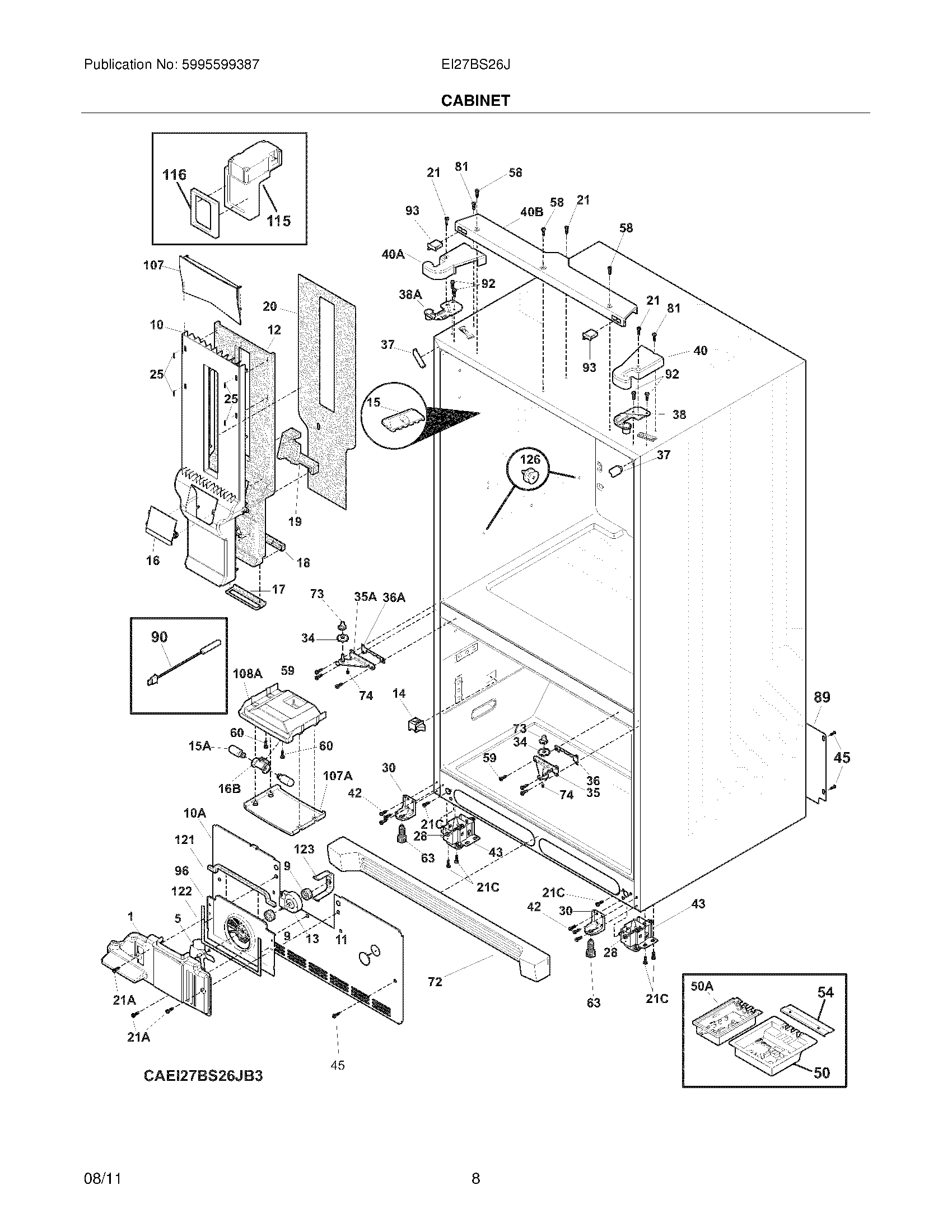

EI27BS26JW4 07 – CABINET

EI27BS26JW4 07 – CABINET

Written by

in

EI27BS26JW4 07 – CABINET

Products

Position	Product
NI	WCI 241859801
NI	5304521649 Frigidaire Refrigerator Wiring Harness
NI	WCI 242025203
NI	WCI 5303918416
NI	241810104 Frigidaire Refrigerator Seal
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	240494001 Frigidaire Refrigerator Plug Button
NI	215474201 Frigidaire Refrigerator Washer
NI	241969001 Frigidaire Refrigerator Cap
NI	WCI 241953904
NI	WCI 242045501
1	WCI 242099401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	241518301 Frigidaire Refrigerator Bushing
10A	WCI 242084101
10	WCI 242058504
10A	241860110 Frigidaire Refrigerator Gasket-Coil Cover
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 242073901
13	MOTOR,EVAPORATOR FAN
14	242060201 Frigidaire Refrigerator Switch-Light/Lamp
15A	5304517886 Frigidaire Refrigerator Light
15	WCI 241891104
16B	241622802 Frigidaire Refrigerator Socket-Light
16	WCI 241860502
16B	241510802 Frigidaire Refrigerator Wiring Harness
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 241922902
21	241732101 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40B	241862403 Frigidaire Refrigerator Upper Hinge Cover
40A	5304504484 Frigidaire Refrigerator White LH Hinge Cover
40	5304504485 Frigidaire Refrigerator Upper Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50A	WCI 241891604
50	WCI 242115206
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	218362501 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	242054803 Frigidaire Refrigerator Kickplate/Grille
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	WCI 242026701
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
93	241835501 Frigidaire Refrigerator Switch-Light
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241971601 Frigidaire Refrigerator Light Shield
107	241963102 Frigidaire Refrigerator Duct-Air
108	241971801 Frigidaire Refrigerator Wiring Cover
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860112 Frigidaire Refrigerator Evaporator Gasket
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
122	241860111 Frigidaire Refrigerator Evaporator Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
126	5304515677 Frigidaire Package of 4 Screws
