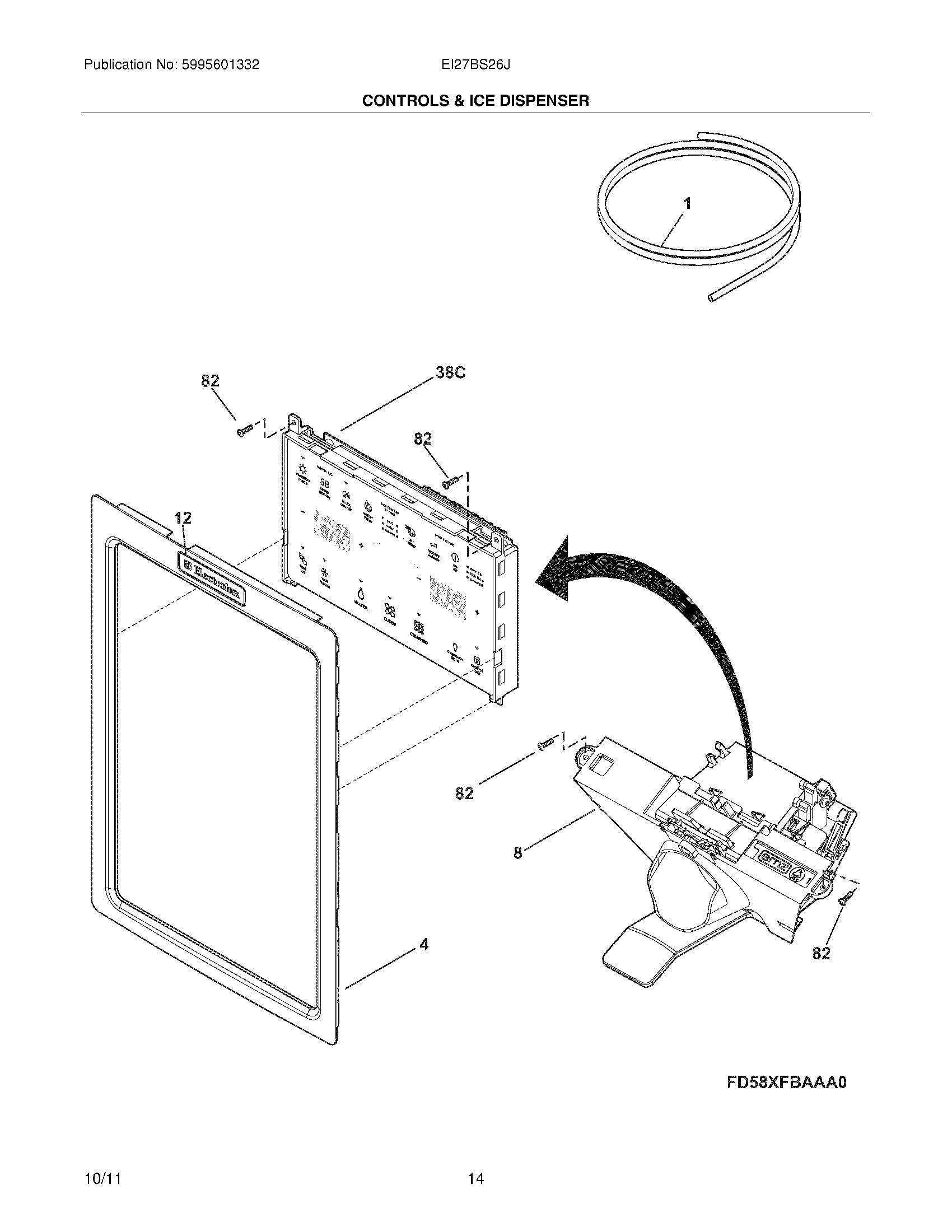

EI27BS26JW5 13 – CONTROLS & ICE DISPENSER

EI27BS26JW5 13 – CONTROLS & ICE DISPENSER

Written by

in

EI27BS26JW5 13 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NITube-water,5/16 – 67“ ,natural
NI241510904 Frigidaire Refrigerator Dispenser Harness
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI5303918484 Frigidaire Dispenser
NITube-water,1/4 – 24“ ,green
NI218976423 Frigidaire Refrigerator Water Inlet Tube
1Tube-water,5/16 – 64“ ,yellow ,SD
4241757503 Frigidaire Refrigerator Module Cover
8242100022 Frigidaire Refrigerator Dispenser Module
12241873303 Frigidaire Refrigerator Nameplate
38C242102801 Frigidaire Refrigerator Switch Board
82241953902 Frigidaire Refrigerator Screw
