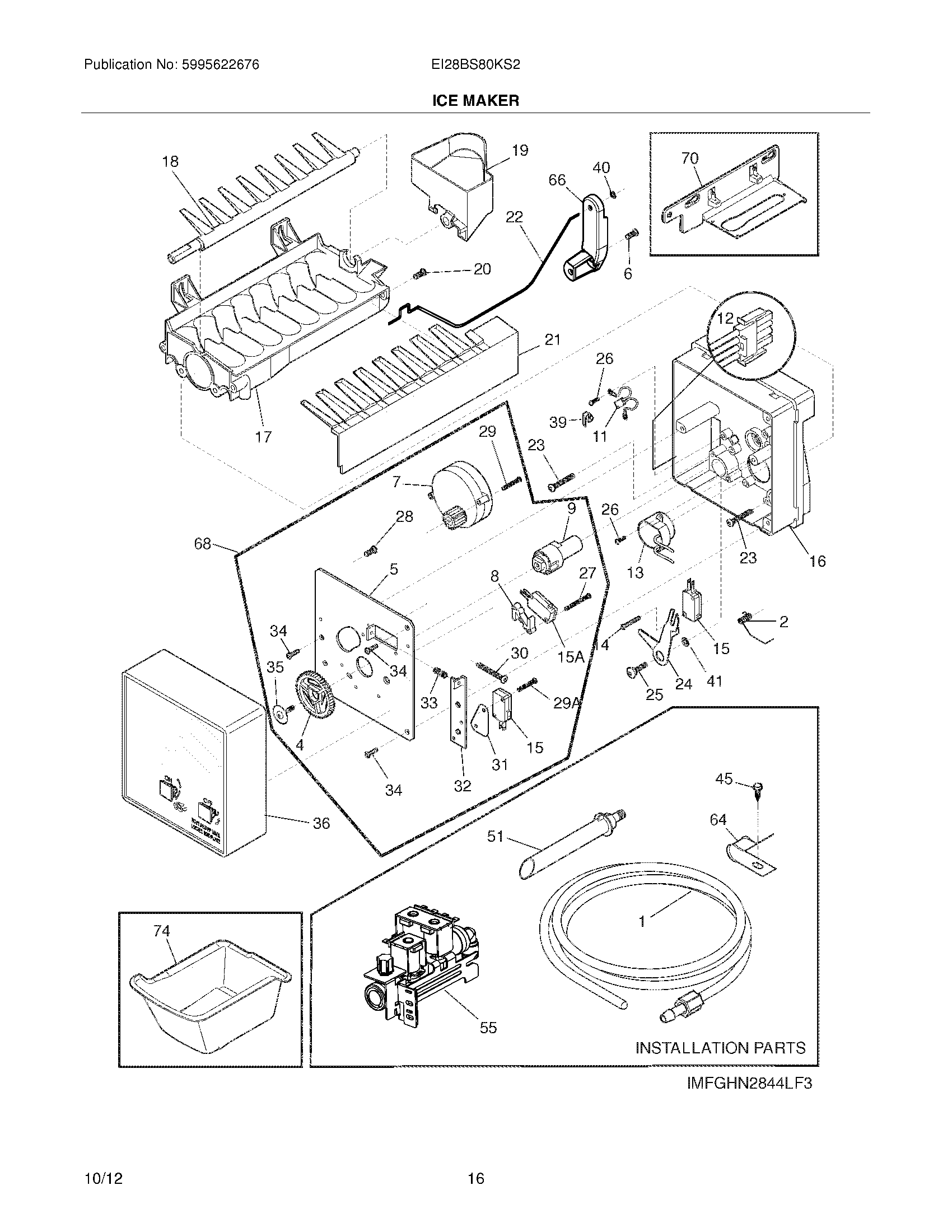

EI28BS80KS2 15 – ICE MAKER

EI28BS80KS2 15 – ICE MAKER

Written by

in

EI28BS80KS2 15 – ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NIWCI 5304469406
NIWCI 218976820
NI241806601 Frigidaire Refrigerator Water Connector
NIWCI 241518001
NI5303918493 Frigidaire Refrigerator Ice Maker Assembly
NI218976409 Frigidaire Refrigerator Water Tube
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
1218976423 Frigidaire Refrigerator Water Inlet Tube
2WCI 5304469396
45304469403 Frigidaire Gear
5WCI 5304469399
6218359202 Frigidaire Refrigerator Screw
75304469407 Frigidaire Refrigerator Ice Maker Motor
8WCI 5304469404
9WCI 5304469402
11WCI 5304455695
12WCI 5304469390
13WCI 5304469387
14Screw
15AWCI 5304469405
15WCI 5304469388
16WCI 5304469379
175304469413 Frigidaire Refrigerator Mold-Ice Maker
18WCI 5304469384
19WCI 242051201
205304480396 Frigidaire Screw
21WCI 5304469378
22WCI 242051301
23WCI 5304469392
24WCI 5304469382
25WCI 5304469397
26WCI 5304469393
27WCI 5304469410
29WCI 5304469409
29AScrew
30Screw-timing adj
315304469389 Frigidaire Switch Spacer
32WCI 5304469400
33WCI 5304469401
34WCI 5304469380
35WCI 5304469411
36WCI 5304469385
39WCI 5304469383
40WCI 5304458401
41WCI 5304469381
455303307980 Frigidaire Oven Screw
515303918603 Frigidaire Refrigerator Water Tube Kit
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
645304455846 Frigidaire Refrigerator Clamp
66WCI 242060701
68WCI 5304469398
70242041701 Frigidaire Refrigerator Ice Maker Bracket
74242127901 Frigidaire Refrigerator Ice Container
