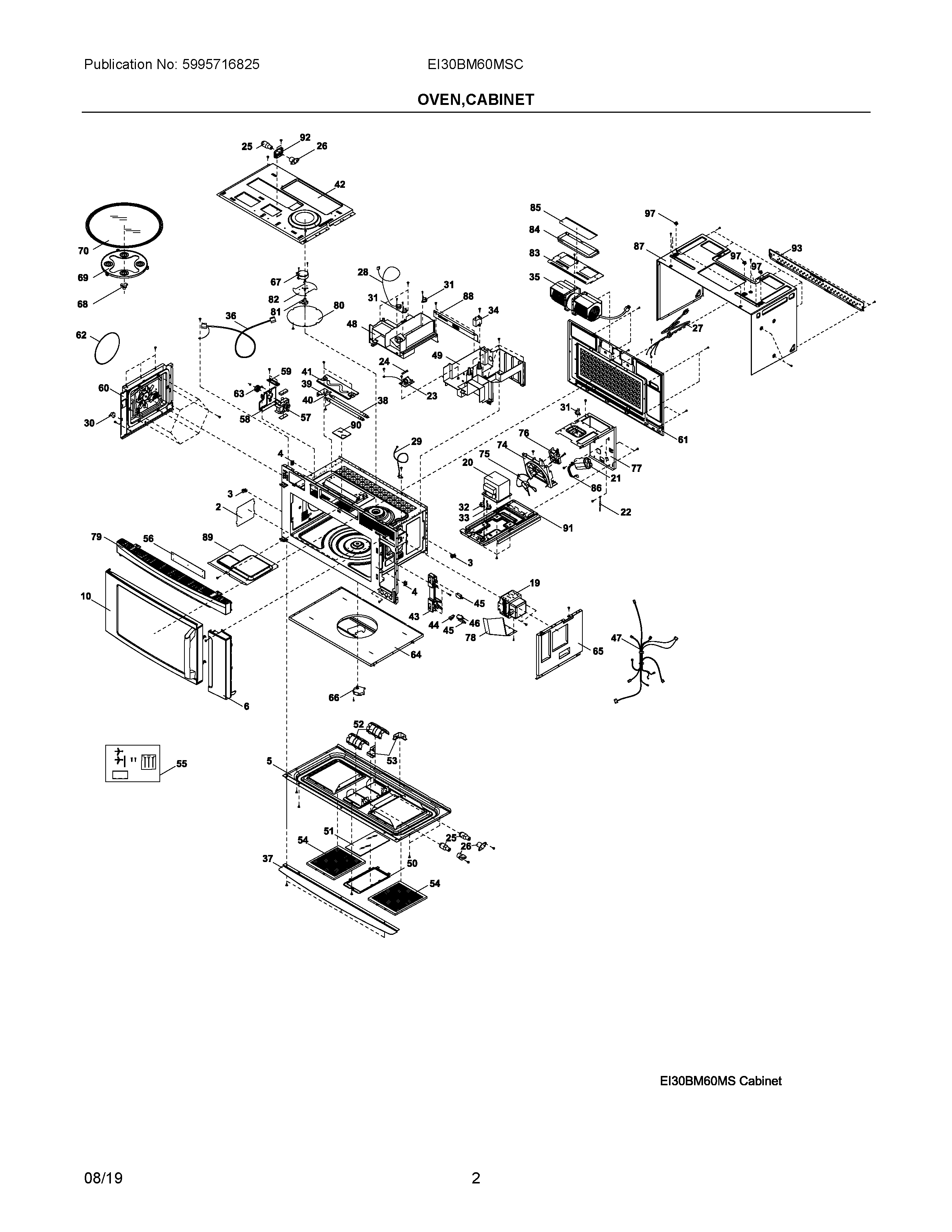

EI30BM60MSC 02 – OVEN,CABINET

Products

PositionProduct
NIA5304491603 Frigidaire Cushion
NIA5304491605 Frigidaire PAD
NIB5304491604 Frigidaire PAD
NIA5304521585 Frigidaire Microwave Element
25304509435 Frigidaire Microwave Waveguide Cover
35304514283 Frigidaire Microwave Support
45304488342 Frigidaire Microwave Support Assembly
55304488343 Frigidaire Microwave Base
65304503308 Frigidaire Microwave Control Assembly
105304521587 Frigidaire Microwave Door Assembly
195304514250 Frigidaire Microwave Magnetron
205304513457 Frigidaire Microwave High Voltage Transformer
215304513458 Frigidaire Microwave Capacitor
22WCI 5304488358
235304515179 Frigidaire Microwave Filter
245304509451 Frigidaire Microwave Fuse
255304488360 Frigidaire Microwave Lamp
265304503670 Frigidaire Microwave Lampholder
27WCI 5304521577
285304509652 Frigidaire Microwave Sensor
295304488361 Frigidaire Microwave Thermistor Assembly
305304515313 Frigidaire Microwave Thermostat
315304513461 Frigidaire Microwave Thermostat
325304513462 Frigidaire Microwave Thermostat
335304513463 Frigidaire Microwave Thermostat
34CAPACITOR, START
355304513464 Frigidaire Microwave Fan Assembly
365304488363 Frigidaire Microwave Wiring
375304488364 Frigidaire Microwave Shield
385304503314 Frigidaire Microwave Heater
395304488366 Frigidaire Microwave Bracket
405304488367 Frigidaire Microwave Connector
415304488368 Frigidaire Insulator
42WCI 5304521579
43LATCH HOOK
445304509458 Frigidaire Microwave Lever Assembly
455304521580 Frigidaire Microwave Switch
465304509459 Frigidaire Microwave Micro Switch
475304488370 Frigidaire Microwave Wiring Harness
485304488371 Frigidaire Duct
49WCI 5304488372
505304488373 Frigidaire FRAME
515304488374 Frigidaire LENS
525304488375 Frigidaire Microwave Cover
53WCI 5304488376
545304488377 Frigidaire Microwave Filter
555304491760 Frigidaire Microwave Mounting Kit
565304513470 Frigidaire Microwave Filter
575304488380 Frigidaire Microwave Motor
585304488381 Frigidaire Bracket
595304488382 Frigidaire Microwave Connector
605304521581 Frigidaire Microwave Fan Assembly
61WCI 5304488384
625304502502 Frigidaire Microwave Belt
635304488386 Frigidaire Microwave Pulley
64WCI 5304521582
655304488388 Frigidaire Panel
665304521583 Frigidaire Microwave Motor
675304521584 Frigidaire Motor
685304513472 Frigidaire Glass Tray Drive Coupling
695304518907 Frigidaire Microwave Rotating Ring
705304513473 Frigidaire Microwave Tray
745304488393 Frigidaire Microwave Duct Assembly
755304509473 Frigidaire Microwave Fan Blade
765304499602 Frigidaire Microwave Blower Fan Motor
775304488463 Frigidaire Duct
785304488464 Frigidaire Deflector
795304521591 Frigidaire Grille
805304488415 Frigidaire Microwave Cover
815304509650 Frigidaire Microwave Shaft Assembly
825304509649 Frigidaire Microwave Blade Fan
835304488418 Frigidaire Microwave Cover Assembly
845304509485 Frigidaire Microwave Vent Damper
855304509486 Frigidaire Microwave Vent Damper
865304488419 Frigidaire Microwave Retainer Assembly
87WCI 5304513483
885304488421 Frigidaire Shield
895304488422 Frigidaire COVER
905304488423 Frigidaire Microwave Lens
915304488424 Frigidaire Microwave Base
925304488425 Frigidaire Microwave Lamp Holder
935304509487 Frigidaire Microwave Mounting Bracket
975304509436 Frigidaire Microwave Mounting Nut Kit
