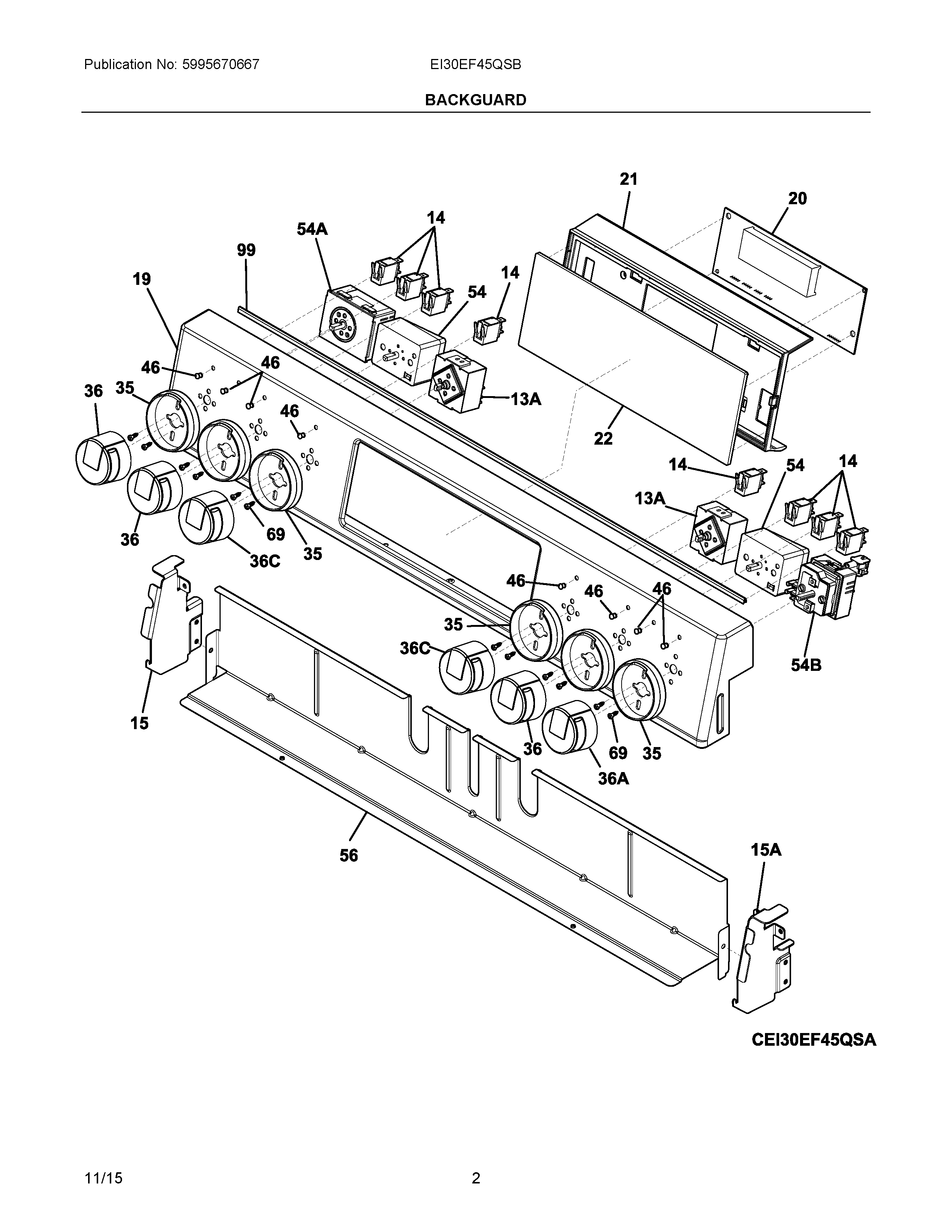

EI30EF45QSB 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIB	5304497177 Frigidaire Harness
NIA	WCI 809127801
NIA	WCI 5304497164
NI	WCI 809127701
NIB	SCREW, 10-32 X 1/4"
NI	316021109 Frigidaire Oven Screw
NIA	5304453707 Frigidaire Oven Screw
13A	5304508926 Frigidaire Oven Temperature Control Switch
14	316022507 Frigidaire Light/Lamp
15	809124402 Frigidaire Bracket Assembly
15A	WCI 809124401
19	809125103 Frigidaire Control Panel
20	316474913 Frigidaire Range Controller
21	809127301 Frigidaire Assembly Bracket
22	808770702 Frigidaire Control Panel
35	WCI 5304499690
36	316535718 Frigidaire Knob Assembly
36A	316535717 Frigidaire Knob
36C	316535716 Frigidaire Knob
46	316557300 Frigidaire Range Indicator Light Lens
54A	316305100 Frigidaire Oven Switch
54B	5304490134 Frigidaire Oven Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
56	WCI 809124001
69	5304480396 Frigidaire Screw
99	809125001 Frigidaire Oven Gasket
