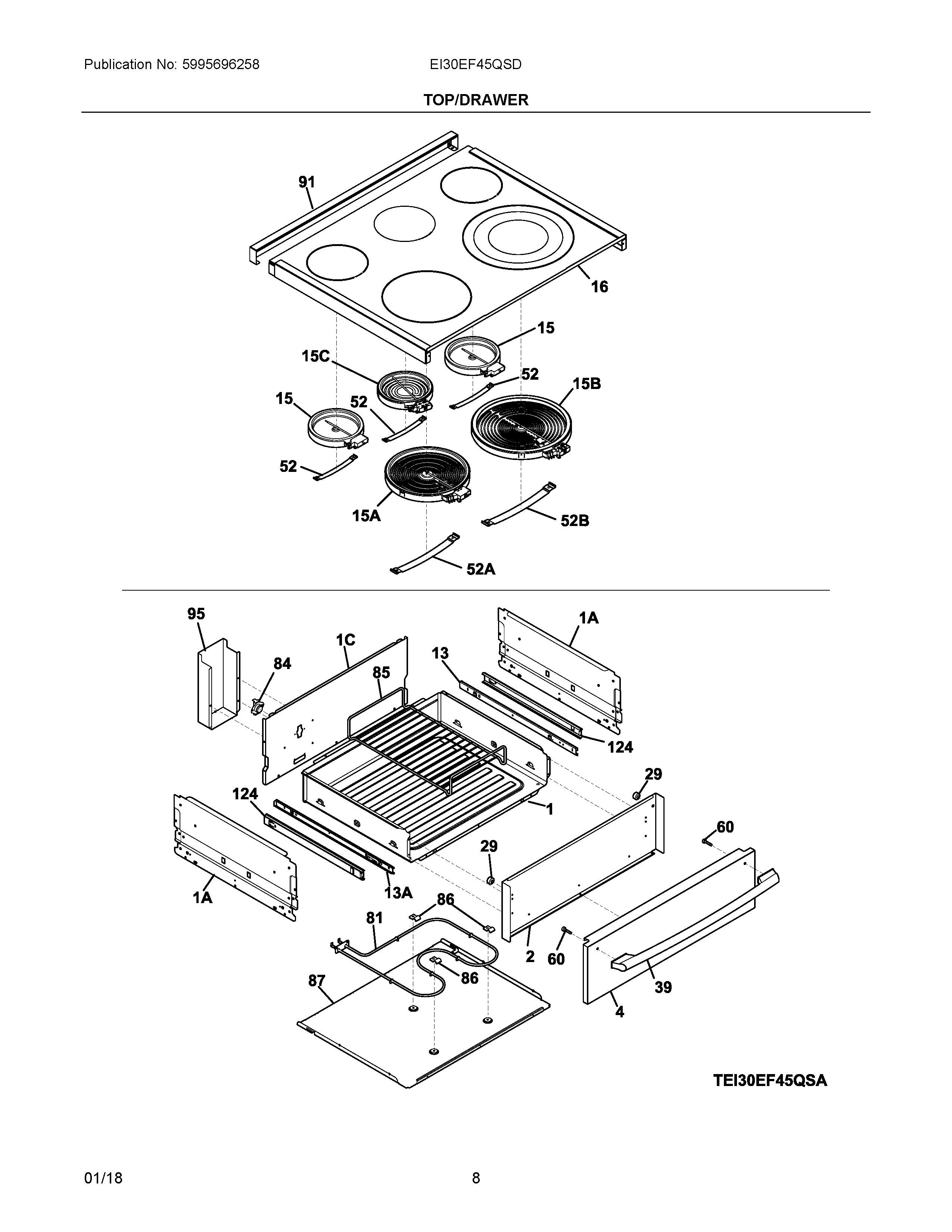

EI30EF45QSD 04 – TOP/DRAWER

EI30EF45QSD 04 – TOP/DRAWER

Written by

in

EI30EF45QSD 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIAWCI 318591200
NI316021109 Frigidaire Oven Screw
NIWCI 318163602
NIA5304497192 Frigidaire Insulation
NI5304520767 Frigidaire Harness
1CPANEL, WARMER DRAWER, REAR
1A318300003 Frigidaire Oven Panel
1DRAWER, BODY ASSEMBLY
2WCI 318303907
4318298828 Frigidaire Oven Panel
13318259513 Frigidaire Oven Glide
13A318259512 Frigidaire Oven Glide
15CELEMENT,RADIANT,100W,WARMER
15318178110 Frigidaire Oven Range 6" Surface Element
15A316530001 Frigidaire Oven Element
15B318297810 Frigidaire Oven Triple Radiant Burner Element
16WCI 139033858
29318147430 Frigidaire Oven Bumper
39316380802 Frigidaire Oven Handle
52B318122011 Frigidaire Oven Spring
52A318122010 Frigidaire Oven Spring Assembly
52318122006 Frigidaire Small Element Mounting Spring
605303311174 Frigidaire Oven Screw
81318255301 Frigidaire Oven Element
84318005108 Frigidaire Thermostat
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87318300102 Frigidaire Oven Panel
91WCI 809122901
95139008401 Frigidaire Oven Shield
124316105501 Frigidaire P-1 Glide
