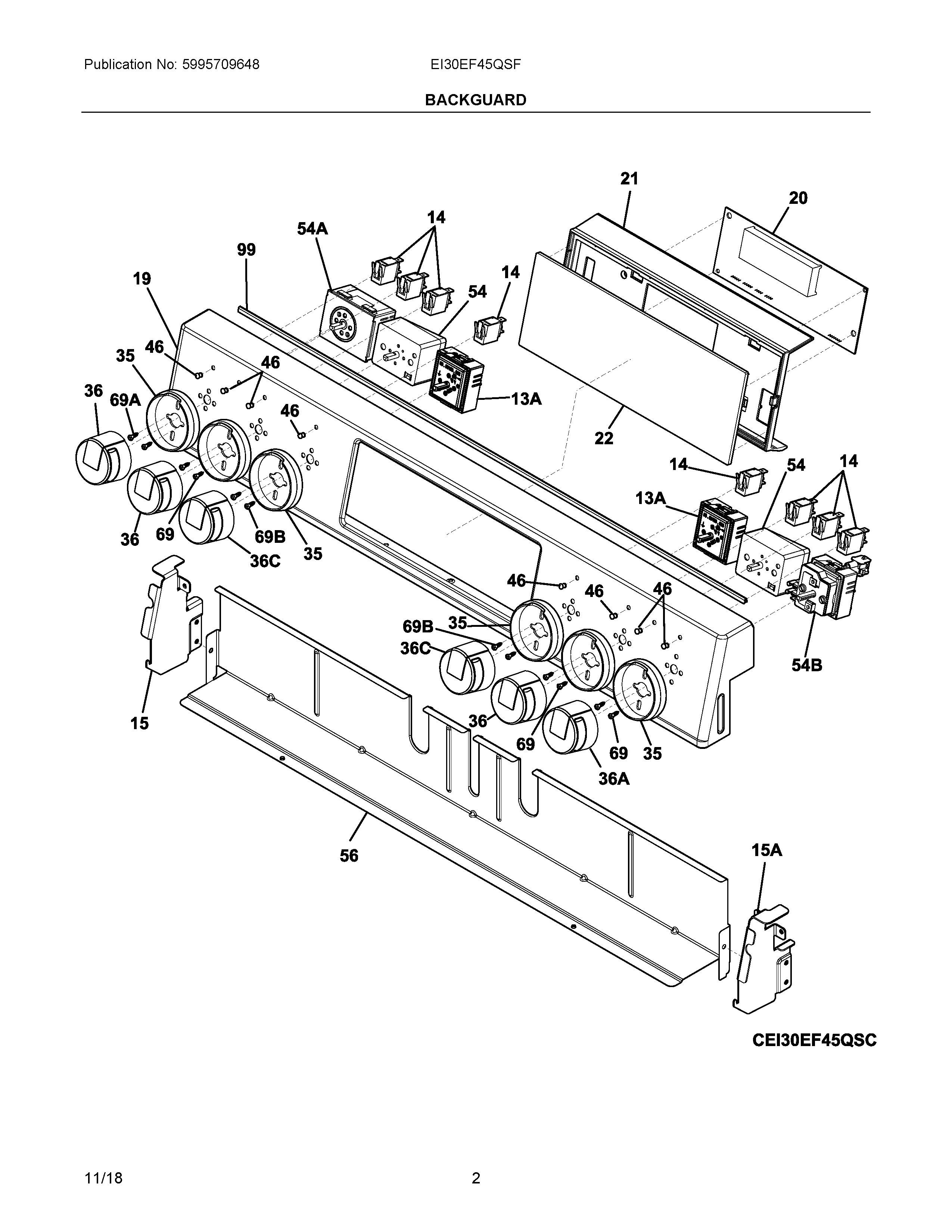

EI30EF45QSF 02 – BACKGUARD

EI30EF45QSF 02 – BACKGUARD

Written by

in

EI30EF45QSF 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIHARNESS, WIRING, COMMUNICATION
NIASCREW, 10-32 X 1/4"
NI316021109 Frigidaire Oven Screw
NIA5304453707 Frigidaire Oven Screw
13A5304508926 Frigidaire Oven Temperature Control Switch
14316022507 Frigidaire Light/Lamp
15809124402 Frigidaire Bracket Assembly
15AWCI 809124401
19809125103 Frigidaire Control Panel
20316474913 Frigidaire Range Controller
21809127301 Frigidaire Assembly Bracket
22808770702 Frigidaire Control Panel
35WCI 5304499690
36C316535716 Frigidaire Knob
36A316535717 Frigidaire Knob
36316535718 Frigidaire Knob Assembly
46316557300 Frigidaire Range Indicator Light Lens
54A316305100 Frigidaire Oven Switch
54B807004702 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
56WCI 809124001
695304480396 Frigidaire Screw
69A5304491110 Frigidaire Screw
69B5304462994 Frigidaire Oven Screw
99809125001 Frigidaire Oven Gasket
