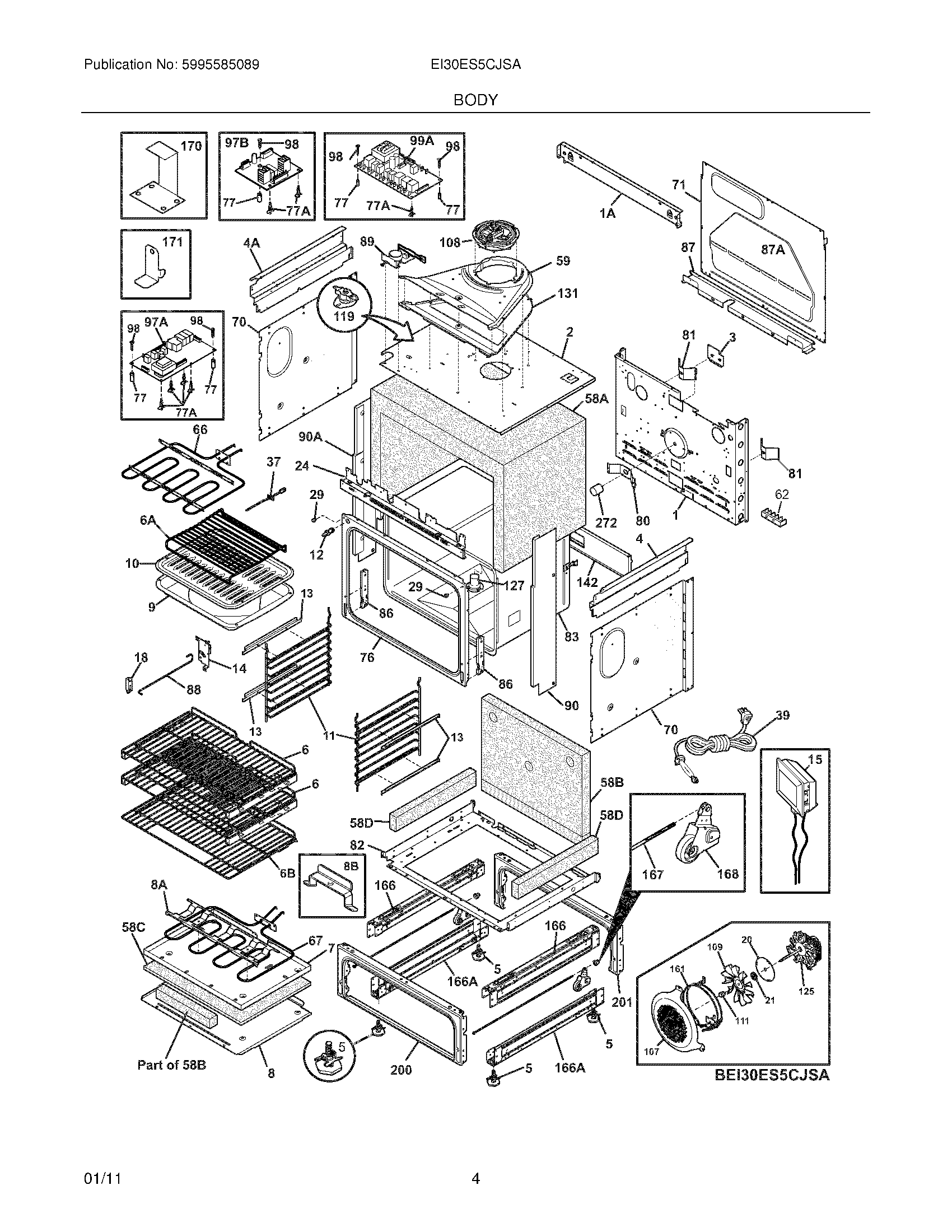

EI30ES5CJSA 05 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	WCI 5304456367
NI	Screw,No.8-18 x 3/8 ,(10)
NI	5304461333 Frigidaire Oven Screw
NI	318531701 Frigidaire Spacer
NI	5303323129 Frigidaire Oven Screw
NI	WCI 318384495
NI	SCREW-SHOULDER
NI	WCI 5304400192
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318579000
NI	WCI 5304471183
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	5304480396 Frigidaire Screw
NI	5304436875 Frigidaire Oven Screw
NI	5304415832 Frigidaire Oven Screw
NI	WCI 318578330
1A	WCI 318905600
1	WCI 318259220
2	WCI 318570500
3	WCI 318402800
4A	318905701 Frigidaire Oven Panel
4	WCI 318905700
5	Screw,leveling ,w/tee nut
6	WCI 318903105
6A	WCI 318365800
6B	318908006 Frigidaire Oven Rack
7	318297303 Frigidaire Oven Box
8	318359500 Frigidaire Oven Panel
8B	WCI 318403202
8A	318313601 Frigidaire Oven Bracket
9	318138801 Frigidaire Oven Pan
10	316082001 Frigidaire Oven Insert
11	WCI 318903300
12	316445501 Frigidaire Oven Switch
13	WCI 318603913
14	318562200 Frigidaire Sensor Assembly
15	WCI 318241006
18	318562300 Frigidaire Oven Bracket
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
24	WCI 318913116
29	316517600 Frigidaire Oven Spacer
37	SENSOR
39	WCI 318113111
58C	318294912 Frigidaire Insullation
58B	WCI 318285079
58A	WCI 318386113
58D	318372018 Frigidaire Insulation
59	WCI 318570602
66	318255806 Frigidaire Oven Element
67	318254916 Frigidaire Oven Range Bake Element
70	WCI 318259114
71	WCI 318260007
76	WCI 318056236
77	Spacer,control
77A	316114100 Frigidaire Oven Spacer
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258770
83	WCI 318261445
86	316580700 Frigidaire Door Hinge Receptacle
87	WCI 318260632
88	WCI 318376505
89	WCI 318261223
90A	318905813 Frigidaire Oven Panel
90	318905812 Frigidaire Oven Panel
97A	WCI 316443933
97B	316519200 Frigidaire Oven Control Board
98	5304401490 Frigidaire Oven Screw
99A	316442120 Frigidaire Oven Board
107	318906601 Frigidaire Oven Cover
108	318575600 Frigidaire Oven Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	318578506 Frigidaire Oven High Limit Thermostat
125	5304463302 Frigidaire Convection Motor
127	WCI 318317105
131	WCI 318574805
142	WCI 318123910
161	318255511 Frigidaire Oven Heating Element
166	WCI 318298403
166	Bracket,base support ,(2)
167	318147811 Frigidaire Oven Screw
168	318302400 Frigidaire Bracket & Wheel
170	WCI 318335700
171	318335200 Frigidaire Oven Bracket
200	WCI 318298226
201	318298233 Frigidaire Oven Frame
272	WCI 318249409
