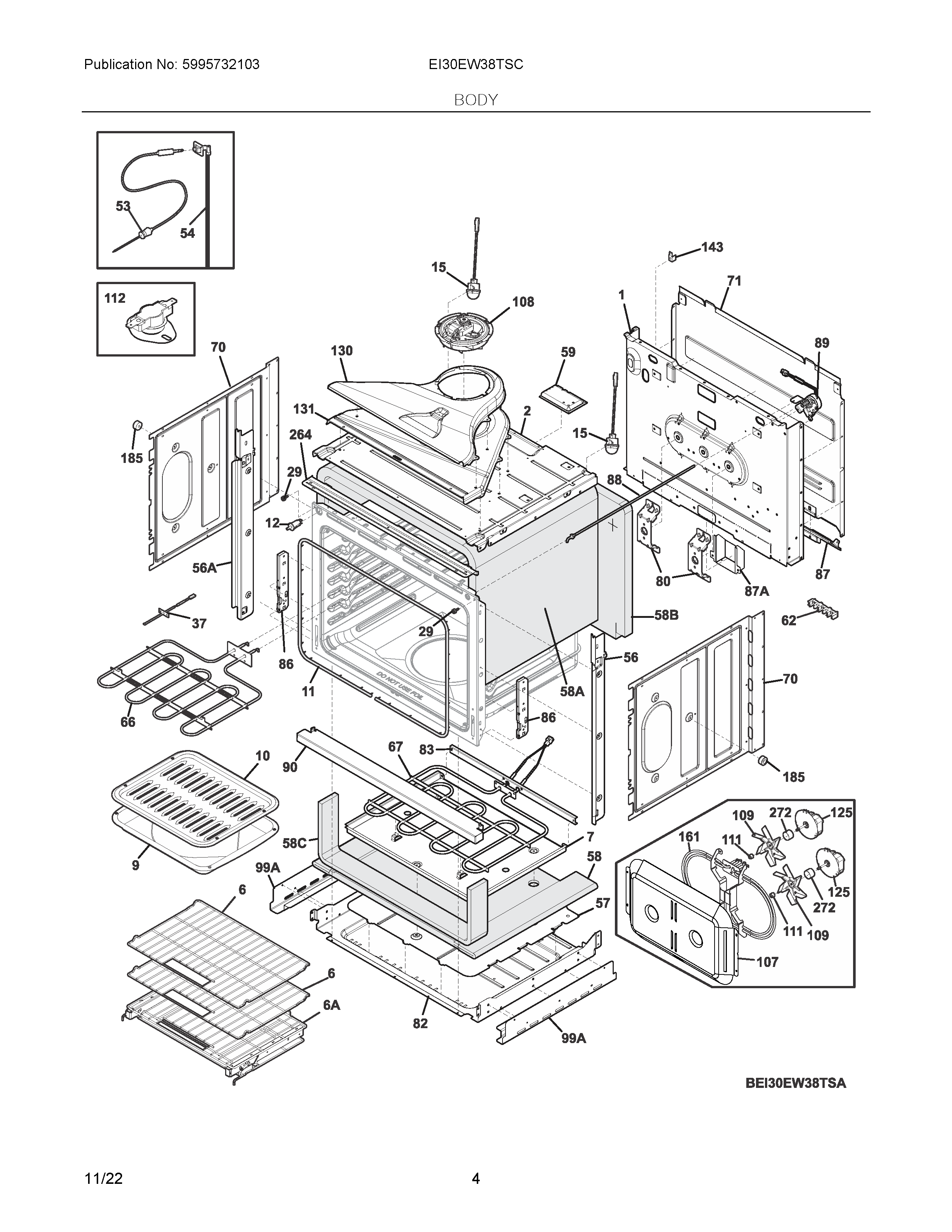

EI30EW38TSC 03 – BODY

EI30EW38TSC 03 – BODY

Written by

in

EI30EW38TSC 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5304506984 Frigidaire Harness Assembly
NI5304470882 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NI5304514911 Frigidaire Oven Harness
NI807597603 Frigidaire Oven Screw
NIA318167300 Frigidaire Clip
NI5303289910 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NI316021109 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NI5303324184 Frigidaire Wall Oven Range Screw
NIWCI 5304516303
NIA316001017 Frigidaire Screw
15304525130 Frigidaire Panel
2808651302 Frigidaire Shield
65304514983 Frigidaire Oven Rack
6A5304518864 Frigidaire Rack Assembly
7BOX, BAKE ELEMENT
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11139036700 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
565304521620 Frigidaire Trim
56A5304521622 Frigidaire Trim
575304521752 Frigidaire Shield
58C807887503 Frigidaire Insulation
58B808905101 Frigidaire Insulation
58808816501 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
59808931401 Frigidaire Vent Box Assembly
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304516286 Frigidaire Oven Heating Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
86139026900 Frigidaire Receptacle
875304520557 Frigidaire Bracket
87A5304520866 Frigidaire Shield
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
90808109405 Frigidaire Oven Trim
99A5304514974 Frigidaire Support
1075304500627 Frigidaire Oven Cover
1085304528825 Frigidaire Assembly Motor Fan
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
112THERMOSTAT,SAFETY,125C
125139008504 Frigidaire Oven Motor
130808651606 Frigidaire Duct
131808651702 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
1615304500622 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
2645304500596 Frigidaire Trim
272139021700 Frigidaire Oven Tube
