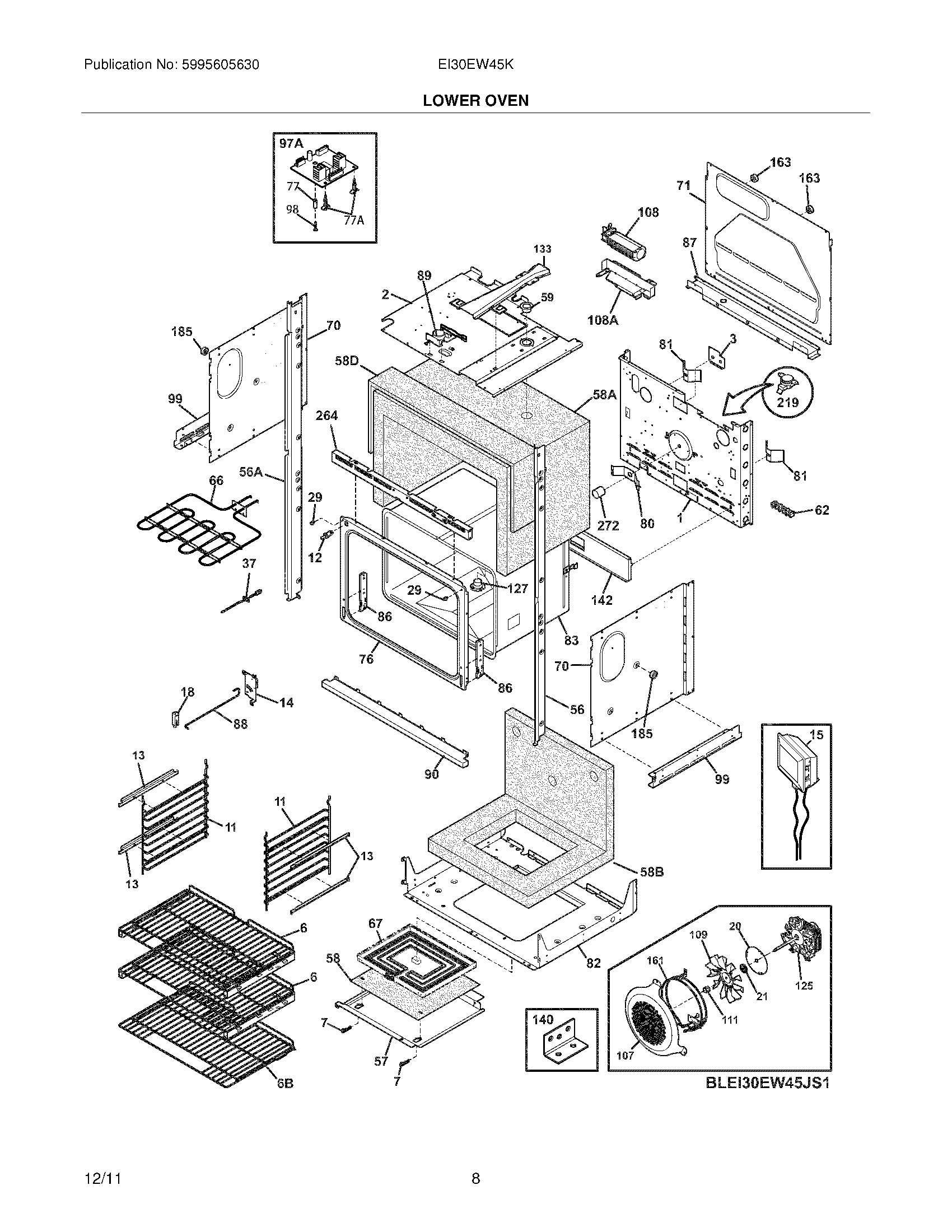

EI30EW45KW1 07 – LOWER OVEN

EI30EW45KW1 07 – LOWER OVEN

Written by

in

EI30EW45KW1 07 – LOWER OVEN

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	WCI 318231870
NI	WCI 5304481623
NI	WCI 318199787
NI	5303323130 Frigidaire Oven Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	WCI 5304456367
NI	5304506955 Frigidaire Harness Assembly
NI	Plate,covering ,probe
NI	WCI 5304400192
NI	5303323129 Frigidaire Oven Screw
NI	Screw,No.8-18 x 3/8 ,(10)
NI	OVEN RACK LUBRICANT
NI	318946400 Frigidaire Oven Bulb
NI	316205500 Frigidaire Oven Nut
NI	5304415832 Frigidaire Oven Screw
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	WCI 318572744
NI	5303323139 Frigidaire Oven Screw
NI	WCI 318370371
NI	5304436875 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	5304480396 Frigidaire Screw
1	WCI 318259220
2	WCI 318258922
3	WCI 318402800
6B	318908006 Frigidaire Oven Rack
6	WCI 318903110
7	318368300 Frigidaire PIN
11	WCI 318903300
12	808136601 Frigidaire Oven Switch
13	WCI 318603913
14	318562200 Frigidaire Sensor Assembly
15	WCI 318241006
18	318562300 Frigidaire Oven Bracket
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
29	316517600 Frigidaire Oven Spacer
37	SENSOR
56	318903678 Frigidaire Trim
56A	318903679 Frigidaire Oven Trim
57	WCI 318361610
58	WCI 318330501
58A	WCI 318386100
58D	WCI 318372006
58B	WCI 318362100
59	318072577 Frigidaire Duct
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	WCI 318255815
67	WCI 318601601
70	WCI 318259114
71	WCI 318260007
76	WCI 318056298
77A	316114100 Frigidaire Oven Spacer
77	Spacer,control
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258775
83	WCI 318261427
86	WCI 318241408
87	WCI 318260622
88	WCI 318376505
89	WCI 318261217
90	WCI 318903511
97A	316519200 Frigidaire Oven Control Board
98	5304401490 Frigidaire Oven Screw
99	318256201 Frigidaire Oven Bracket
107	318906601 Frigidaire Oven Cover
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
125	5304463302 Frigidaire Convection Motor
127	WCI 318357001
133	WCI 318347800
140	WCI 318399310
142	WCI 318123910
161	318255511 Frigidaire Oven Heating Element
163	Spacer,(4)
185	318531800 Frigidaire Oven Spacer
219	318004902 Frigidaire Oven Switch
264	WCI 318257821
272	WCI 318249409
